4.8.4 Rotary axis attachment has a wrong cylindrical engraving/cutting size
Here are the reason:
 Different type of Rotary connector on the machine;
Check the Rotary connector on your machine,the connector is located inside the right front of the
machine.

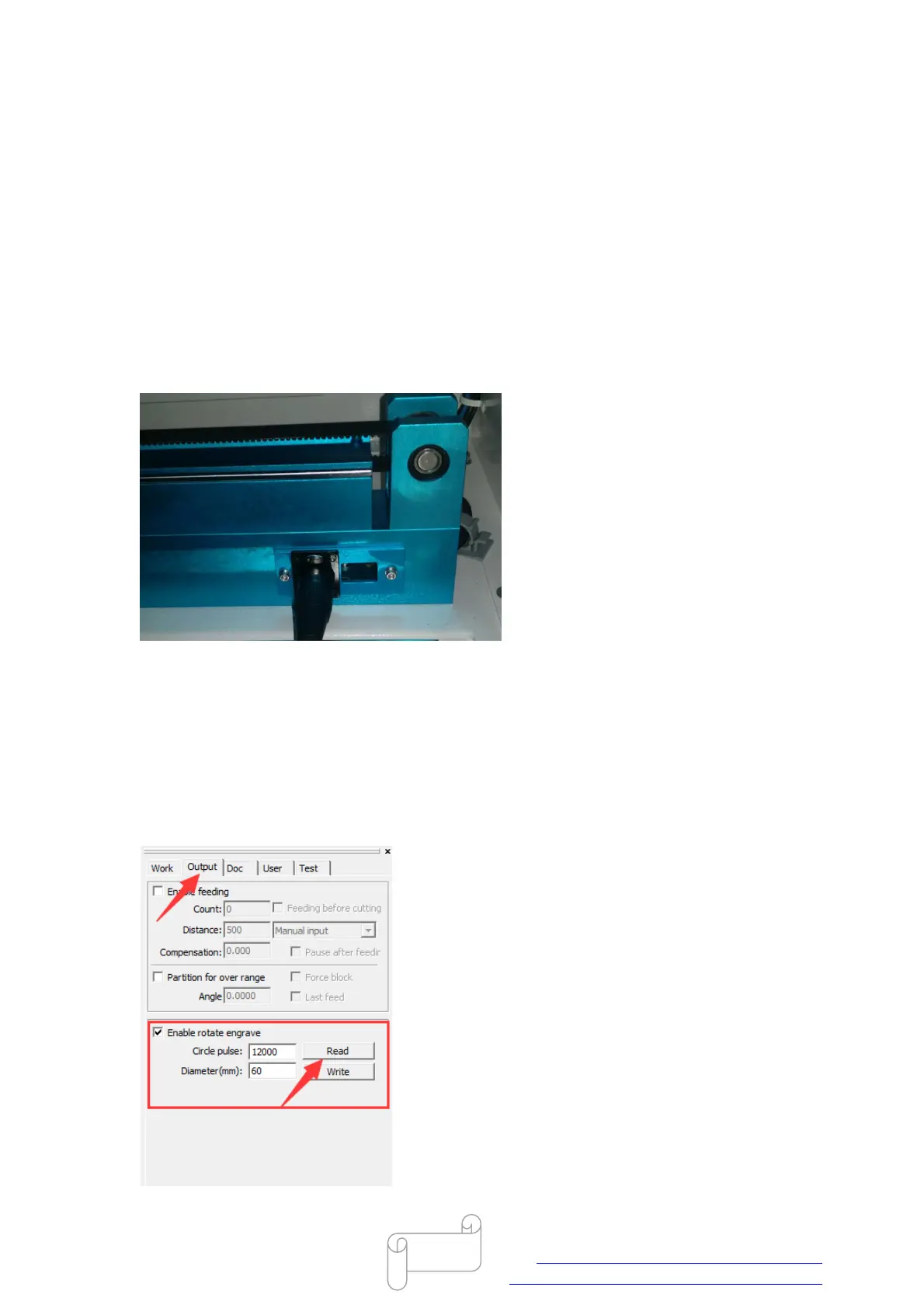

1. 7-pin connector on the machine, like below.
For this type connector, rotary axis is controlled by U axis.
In RDworks, the setting of “Enable rotate engrave” need read and write button that can save the
setting into U axis, like below.
Read>>tick “Enable rotate engrave”>>set “Circle pulse” and “Diameter”>>Write
