2. Introduction of the X Axis Shaft

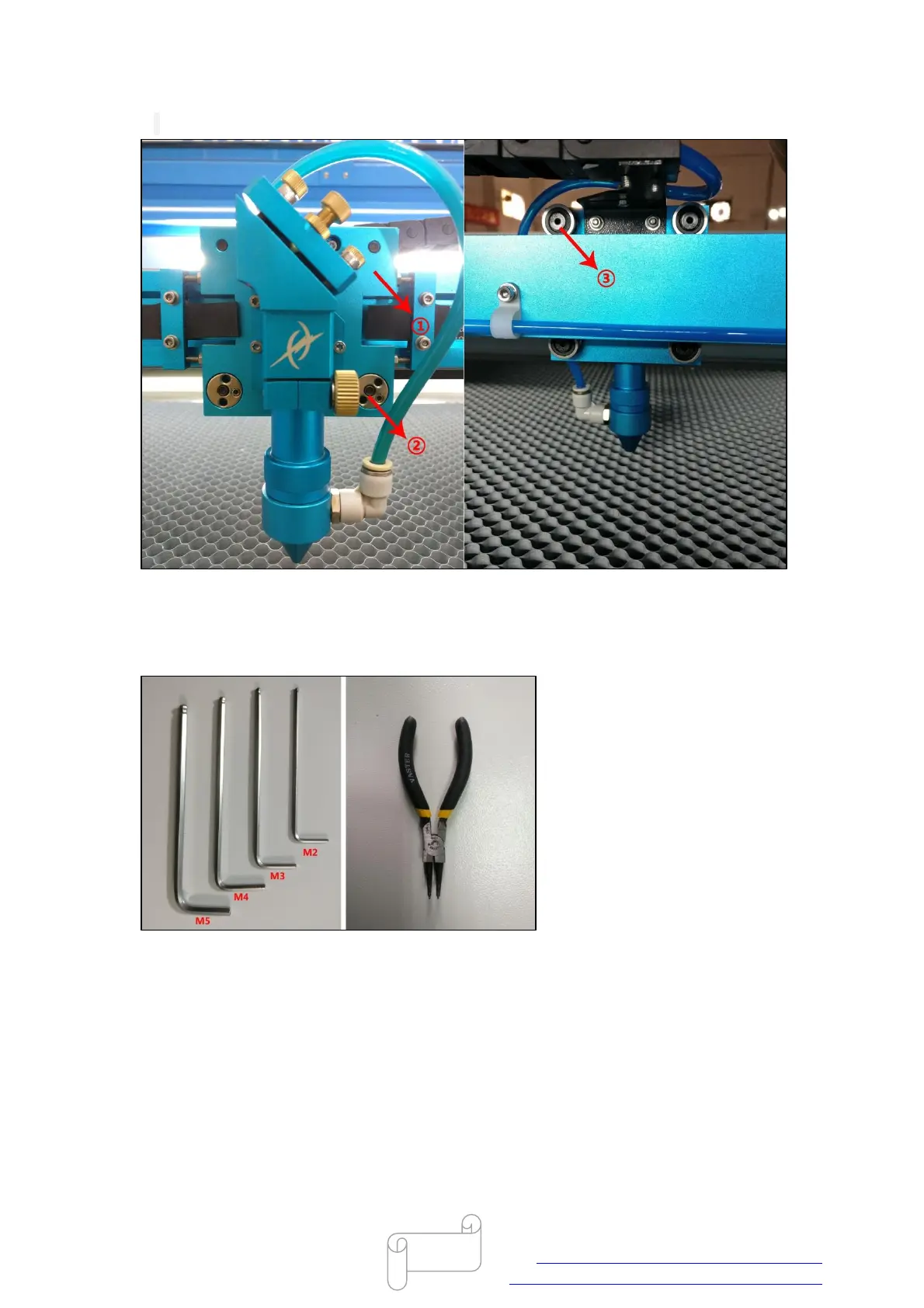

① The X Axis Shaft
② Eccentric gears, which was for adjusting the tension of X Axis Shaft
③ Rollers
The tools you needed as follow：（ M2/M3 Allen Wrench and Crimp Tool inside the tool box）
3. Adjustment of the X Axis Shaft
①Make sure the all screws of the four Rollers are tight enough.
However, the X Axis shaft is loosen.
②Adjust the two Eccentric gears as follow：
First , Hold the screws back of the Eccentric gears;
Next, loose the A screws ;
Then, Rotate B by Crimp Tool to tighten the X Axis Shaft.
To Next Page
