Titan ELITE 3000 User Manual

11
DESCRIPTION OF UNIT
ELITE 3000

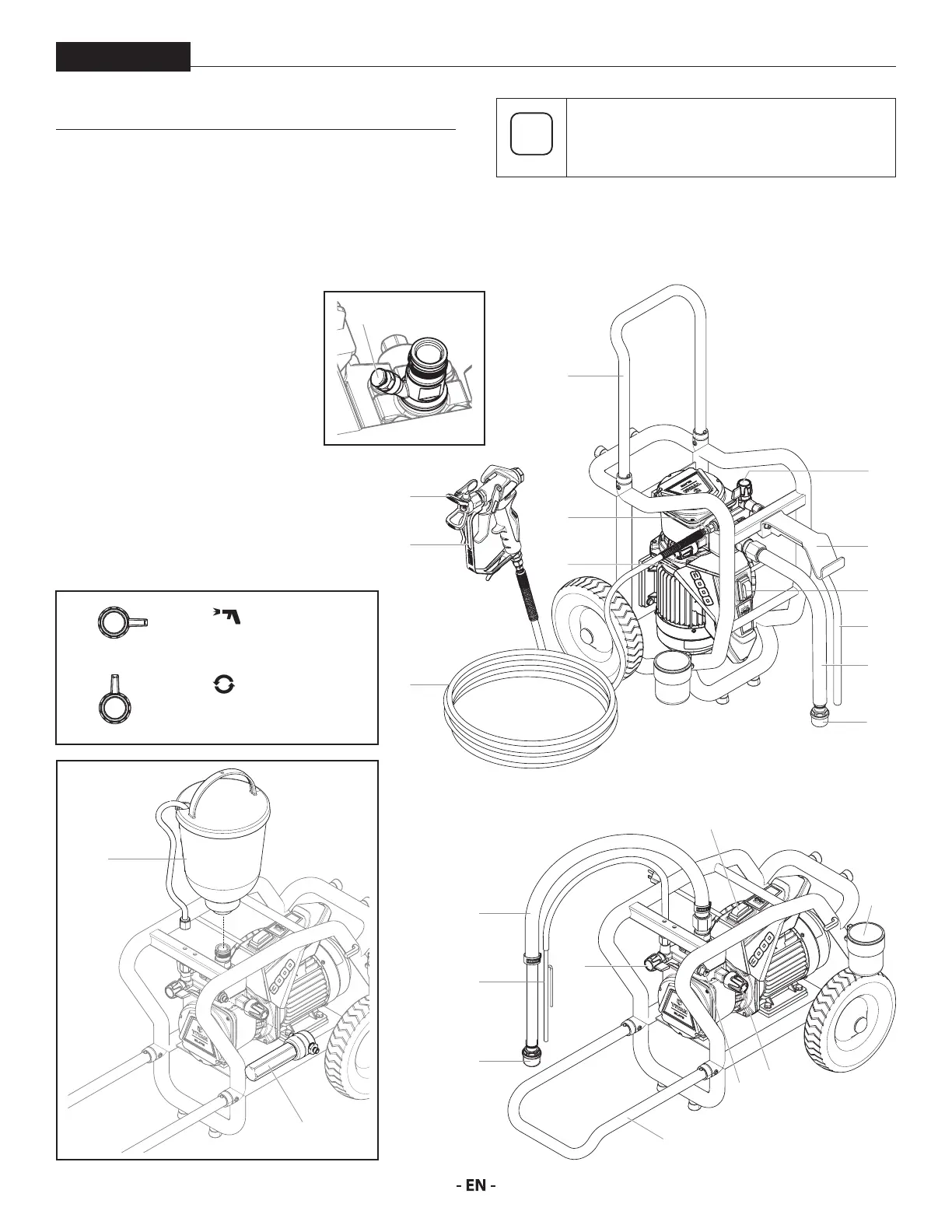

3.3 EXPLANATORY DIAGRAM
i
All information given in this manual applies to
all congurations unless otherwise noted.
INCLUDED:
1. Tip guard with airless tip
2. Spray gun
3. High-pressure hose
4. Extendable handle
5. Spray hose port
6. Pressure control valve
7. Pressure relief valve
8. Pail bracket
9. ON / OFF switch
10. Return hose
11. Suction hose
12. Inlet lter
13. Drip cup
14. Pusher stem
SOLD SEPARATELY:
15. Hopper
16. High pressure lter
12
9
10
11
8
7
1
2
3
5
4
6
11
10
12
7
13
9
4
6
5
16
15
=
Spraying
=
Circulation
7
14

Titan ELITE 3000 Specifications

General

Type	Airless
Spray Pattern	Adjustable
Max Pressure	3000 PSI
Power Source	Electric
Hose Length	50 ft
Spray Tip Size	0.015 in
