18
CLEANING THE UNIT
ELITE 3000
8.1 CLEANING THE UNIT FROM THE OUTSIDE
Danger of short-circuits caused by water
ingression!
Never spray down the unit with high-pressure or
high-pressure steam cleaners.
tention
Do not put the high-pressure hose into solvents.
Use only a wet cloth to wipe down the outside of
the hose.
Wipe down unit externally with a cloth which has been
immersed in a suitable cleaning agent.

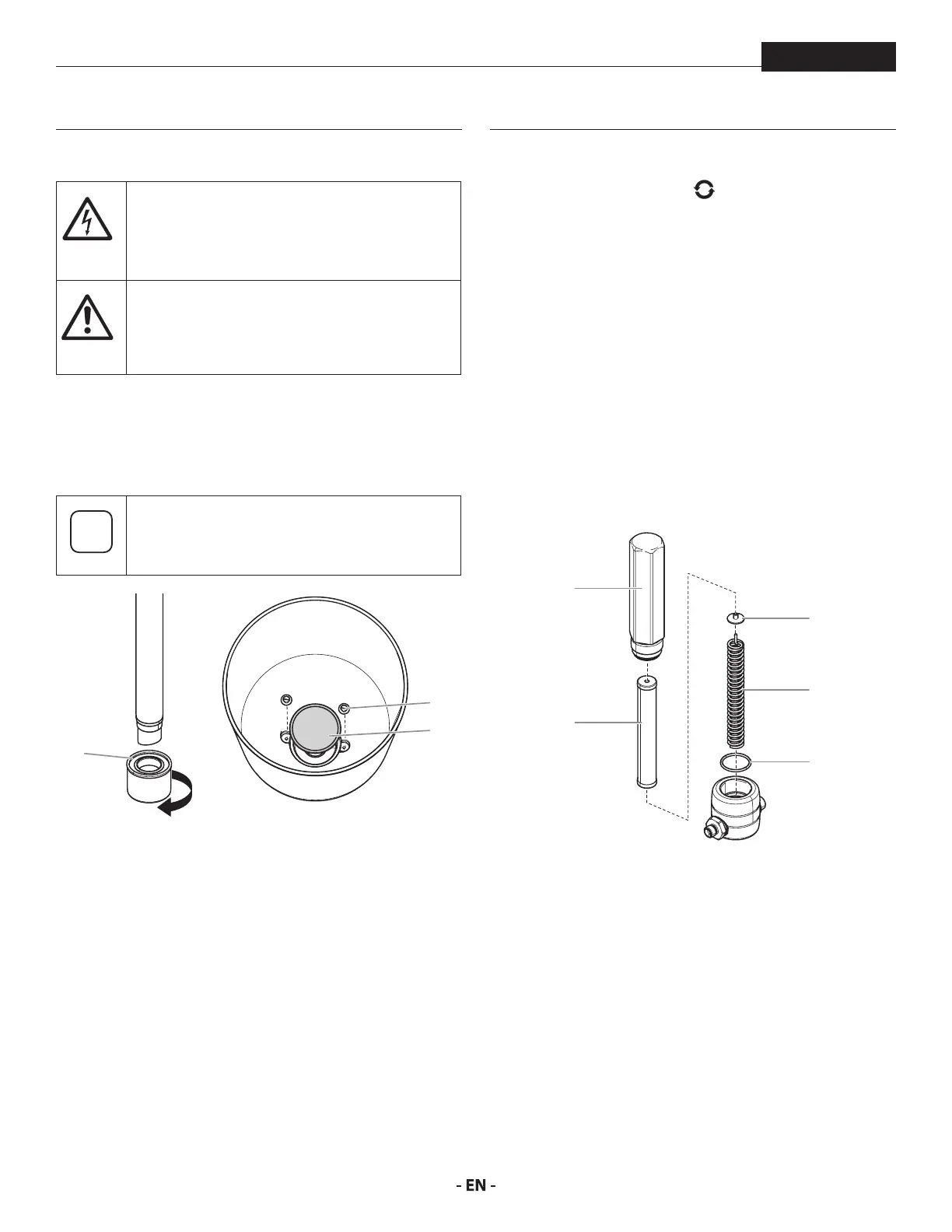

8.2 SUCTION FILTER
Clean lters always ensure maximum volume,
constant spray pressure and problem-free
functioning of the unit.
1
2
1
SUCTION SYSTEM HOPPER
UNIT WITH SUCTION SYSTEM
1. Unscrew the lter (Item 1) from the suction tube.
2. Clean or replace the lter.
Carry out cleaning with a hard brush and a corresponding
cleaning agent.
UNIT WITH OPTIONAL HOPPER
1. Remove screws with a screwdriver (Item 2).
2. Lift and remove lter disk (1) with a screwdriver
3. Clean or replace the lter disk.
Carry out cleaning with a hard brush and a appropriate
cleaning agent.
8.3 HIGHPRESSURE FILTER OPTIONAL
1. Set pressure relief valve to (pressure relief, circulation).
2. Switch the pump OFF using the ON/OFF switch (Pos. 0).
3. Open the high-pressure lter and clean the lter insert. To
do so:
4. Unscrew the lter housing (1) by hand.
5. Remove the lter insert (2) and pull out the bearing spring
(3).
6. Clean all the parts with the corresponding cleaning agent.
If compressed air is available – blow through the lter
insert and bearing spring.
7. When mounting the lter ensure that the bearing ring (4)
in the lter insert is positioned correctly and check the
O-ring (5) at the lter housing for damage.
8. Screw on the lter housing by hand until it stops (a higher
tightening force only impedes later dismantling).
1
2
4
3
5
