20
REPAIRS AT THE UNIT
ELITE 3000
10 REPAIRS AT THE UNIT
Switch the unit o.
Before all repair work: Unplug the power plug
from the outlet.

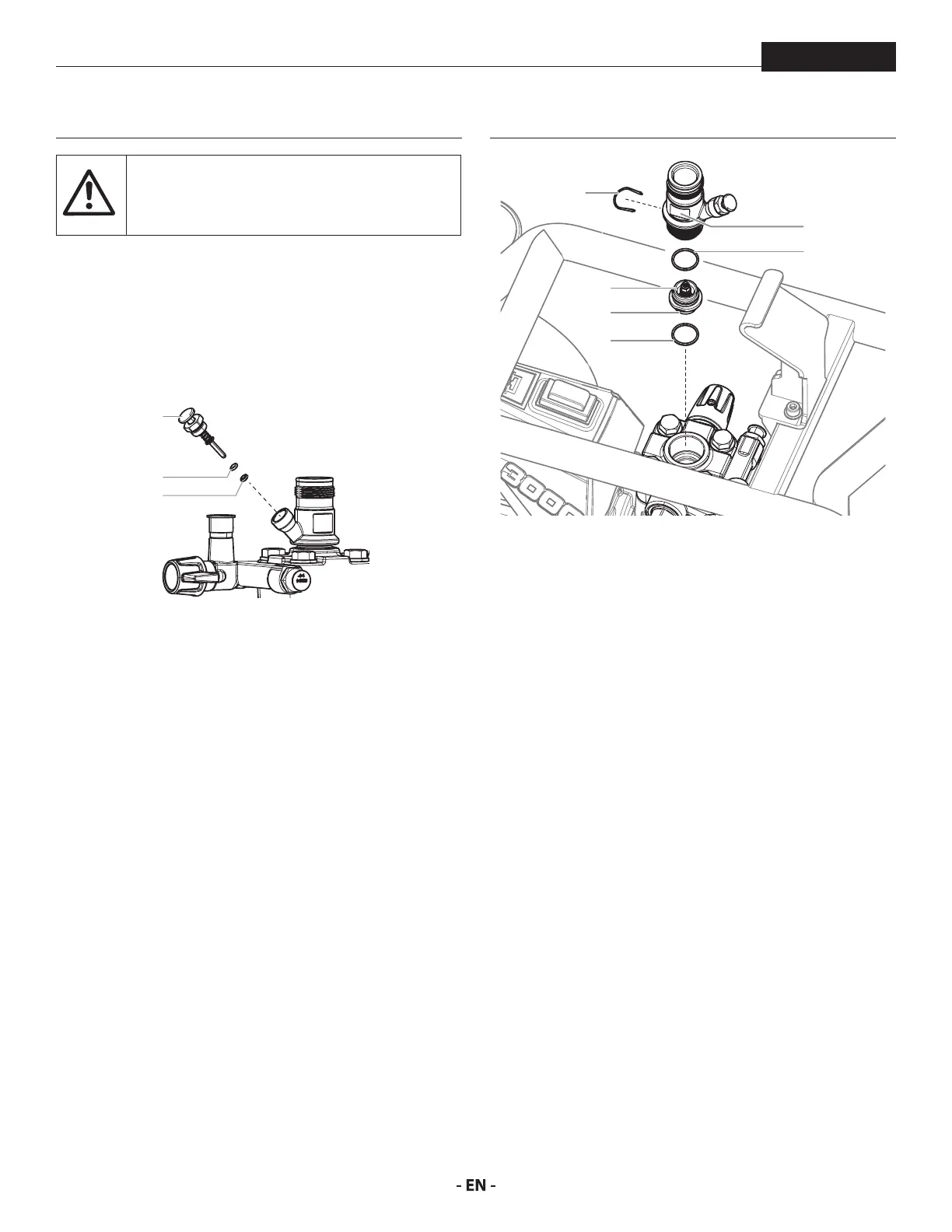

10.1 INLET VALVE PUSHER
1. Use a 17 mm wrench to screw out the inlet valve button
(Fig. 15, item 1).
2. Replace the wiper (2) and O-ring (3).
1
3
2
10.2 INLET VALVE
DISASSEMBLY
1. Place the included 30 mm wrench on the housing (1).
2. Loosen the housing (1) with light blows of a hammer on
the end of the wrench.
3. Screw out the housing with the inlet valve (2) from the
paint section.
4. Pull of the clasp (3) using the included screwdriver.
5. Place the enclosed 30 mm wrench on the inlet valve (2).
Turn out the inlet valve carefully.
6. Clean the valve seat (4) with a cleaning agent and brush
(ensure that no brush hairs are left behind).
7. Clean the seals (5, 6) and check for damage. Replace, if
necessary.
8. Check all the valve parts for damage. In case of visible wear
replace the inlet valve.
2
4
3
6
1
5
INSTALLATION
1. Insert the inlet valve (2) into the housing (1) and secure with
the clasp (3). Ensure that the (black) seal (5) is mounted in
the housing.
2. Screw the unit from the housing and the inlet valve into the
paint section. The same (black) seal (6) has to be mounted
in the paint section.
3. Tighten the housing with the 30 mm wrench and tighten
with three light blows of the hammer on the end of the
wrench. (Corresponds to approx. 90 Nm tightening
torque).
