Titan ELITE 3000 User Manual

14

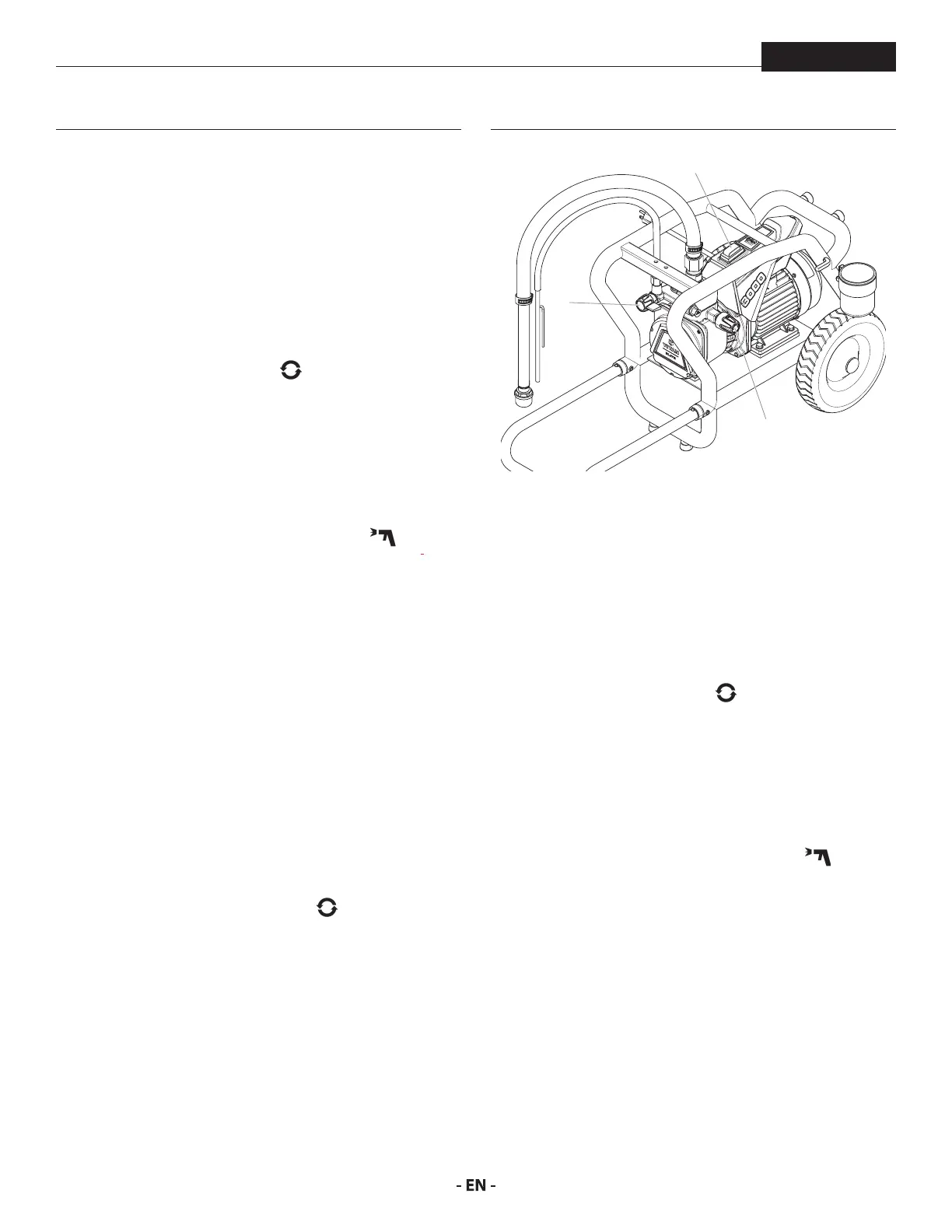

STARTUP
ELITE 3000
4.5 CLEANING PRESERVING AGENT WHEN
STARTINGUP OF OPERATION INITIALLY
UNIT WITH SUCTION TUBE
1. Immerse the suction system into a container lled with a
suitable cleaning agent (recommendation: water).
UNIT WITH OPTIONAL HOPPER
2. Fill up hopper with a suitable cleaning agent
(recommendation: water).
3. Set pressure relief valve (1) to ( circulation).
4. Switch the pump ON (Pos. I) using the ON/OFF switch (2).
5. Slowly turn the pressure control knob (3) clockwise.
6. Wait until you can hear the sound of the inlet valve and
cleaning agent ows from the return hose.
7. Turn the pressure control knob (3) back approx. one
rotation.
8. Set pressure relief valve (1) to (spray).
Pressure will increase inside the high pressure hose .
9. Point the tip of the spray gun to inner wall of an open and
empty metal container and pull the trigger at the spray
gun.
10. The pressure is increased by turning the pressure control
knob (3) to the right.
11. Spray the cleaning agent out of the unit for approx.
1 - 2 min. (~5 litres) into the open collecting container.
4.6 VENTILATE UNIT HYDRAULIC SYSTEM
IF THE SOUND OF INLET VALVE IS NOT
AUDIBLE
1. Switch the pump ON (Pos. I) using the ON/OFF switch (2).
2. Turn pressure control knob (3) approximately. three times
counter-clockwise.
3. Set pressure relief valve (1) to (circulation). The
hydraulic system is ventilated. Leave the pump running
for two to three minutes.
4. Then slowly turn pressure control knob (3) clockwise until
you can hear the sound of the inlet valve.
5. If not, repeat points 2 and 4.
3
2
1
4.7 TAKING THE UNIT INTO OPERATION WITH
COATING MATERIAL
UNIT WITH SUCTION TUBE
1. Immerse the suction system into a container lled with
coating material.
UNIT WITH OPTIONAL HOPPER
2. Fill coating material into the hopper.
3. Set pressure relief valve (1) to ( circulation).
4. Switch the pump ON (Pos. I) using the ON/OFF switch (2).
5. Slowly turn the pressure control knob (3) clockwise.
When the noise of the valves changes, the unit is bled
and takes in coating material.
6. If coating material exits from the return hose, turn the
pressure control knob (3) back approx. 1 rotation.
7. Set pressure relief valve (1) to (spray).
Pressure will increase inside the high pressure hose.
8. Pull the trigger of the spray gun and spray into an open
and empty container in order to remove the remaining
cleaning agent from the unit. When coating materials exits
from the tip, close the spray gun.
9. Adjust the spraying pressure by turning the pressure
control knob (3).
10. The unit is ready to spray.

Titan ELITE 3000 Specifications

General

Type	Airless
Spray Pattern	Adjustable
Max Pressure	3000 PSI
Power Source	Electric
Hose Length	50 ft
Spray Tip Size	0.015 in
