Titan ELITE 3000 User Manual

4

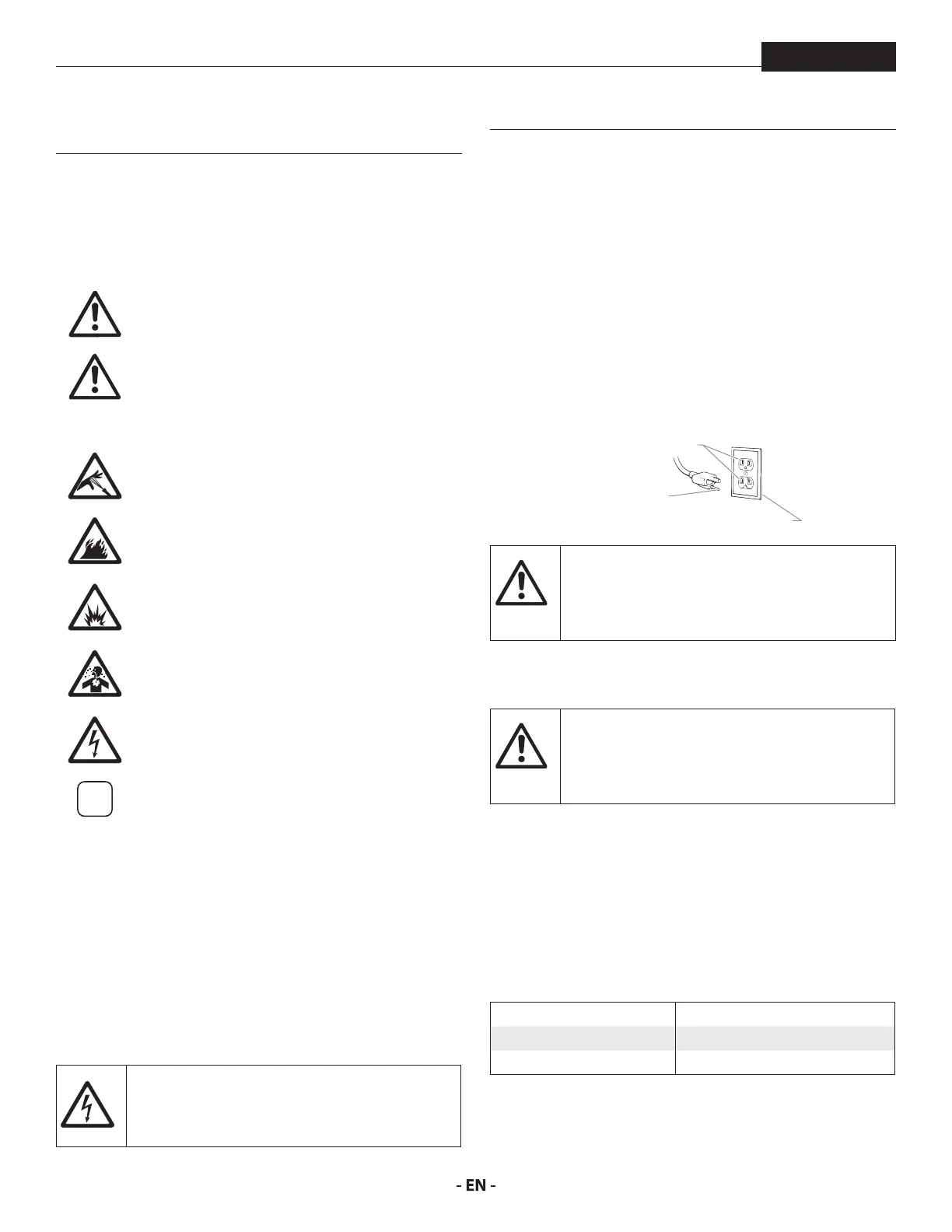

SAFETY PRECAUTIONS
ELITE 3000
1 SAFETY REGULATIONS FOR AIRLESS
SPRAYING
1.1
EXPLANATION OF SYMBOLS USED
This manual contains information that must be read and
understood before using the equipment. When you come to
an area that has one of the following symbols, pay particular
attention and make certain to heed the safeguard.

This symbol indicates a potential hazard
that may cause serious injury or loss of life.
Important safety information will follow.
At
tention

This symbol indicates a potential hazard
to you or to the equipment. Important
information that tells how to prevent
damage to the equipment or how to avoid
causes of minor injuries will follow.

Danger of skin injection

Danger of re from solvent and paint fumes

Danger of explosion from solvent, paint
fumes and incompatible materials

Danger of injury from inhalation of harmful
vapors

Danger of electric shock
i

Notes give important information which
should be given special attention.
1.2 GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product
is equipped with a cord having a grounding wire with an
appropriate grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
WARNING - Improper installation of the
grounding plug can result in a risk of electric
shock.
If repair or replacement of the cord or plug is necessary, do not
connect the green grounding wire to either at blade terminal.
The wire with insulation having a green outer surface with
or without yellow stripes is the grounding wire and must be
connected to the grounding pin.
Check with a qualied electrician or serviceman if the grounding
instructions are not completely understood, or if you are in
doubt as to whether the product is properly grounded. Do not
modify the plug provided. If the plug will not t the outlet,
have the proper outlet installed by a qualied electrician.
This product is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated below. Make
sure that the product is connected to an outlet having the same
conguration as the plug. No adapter should be used with this
product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
At
tention
When the sprayer is used with a generator or
uncontrolled line voltage, the use of Titan’s “Line
Surge Protector” (P/N 800-935) is recommended.
IMPORTANT ELECTRICAL INFORMATION
At
tention
Use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot receptacle
that will accept the plug on the product.
Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of power and
overheating.
A 8 or 10 gauge cord is recommended (see chart). If an extension
cord is to be used outdoors, it must be marked with “SJW” or
“SJTW”. For example, a designation of SJTW would indicate
that the cord would be appropriate for outdoor use.
Cord gauge Maximum cord length
8 150 feet
10 100 feet

Titan ELITE 3000 Specifications

General

Type	Airless
Spray Pattern	Adjustable
Max Pressure	3000 PSI
Power Source	Electric
Hose Length	50 ft
Spray Tip Size	0.015 in
