47
RÉPARATIONS SUR L‘APPAREIL
ELITE 3000
Fiche de secteur
120V / 60Hz
Bornier
bleu
noir
vert/jaune
vert/jaune
blue
marron
P/N 2392144
P/N 2370294noir
rouge
bleu
Condensateur de marche
C = 80µF
250V
Contacteur du moteur 20A
P/N 0522 622
Moteur
blanc P/N 2427577
bleu
marron P/N 2370299

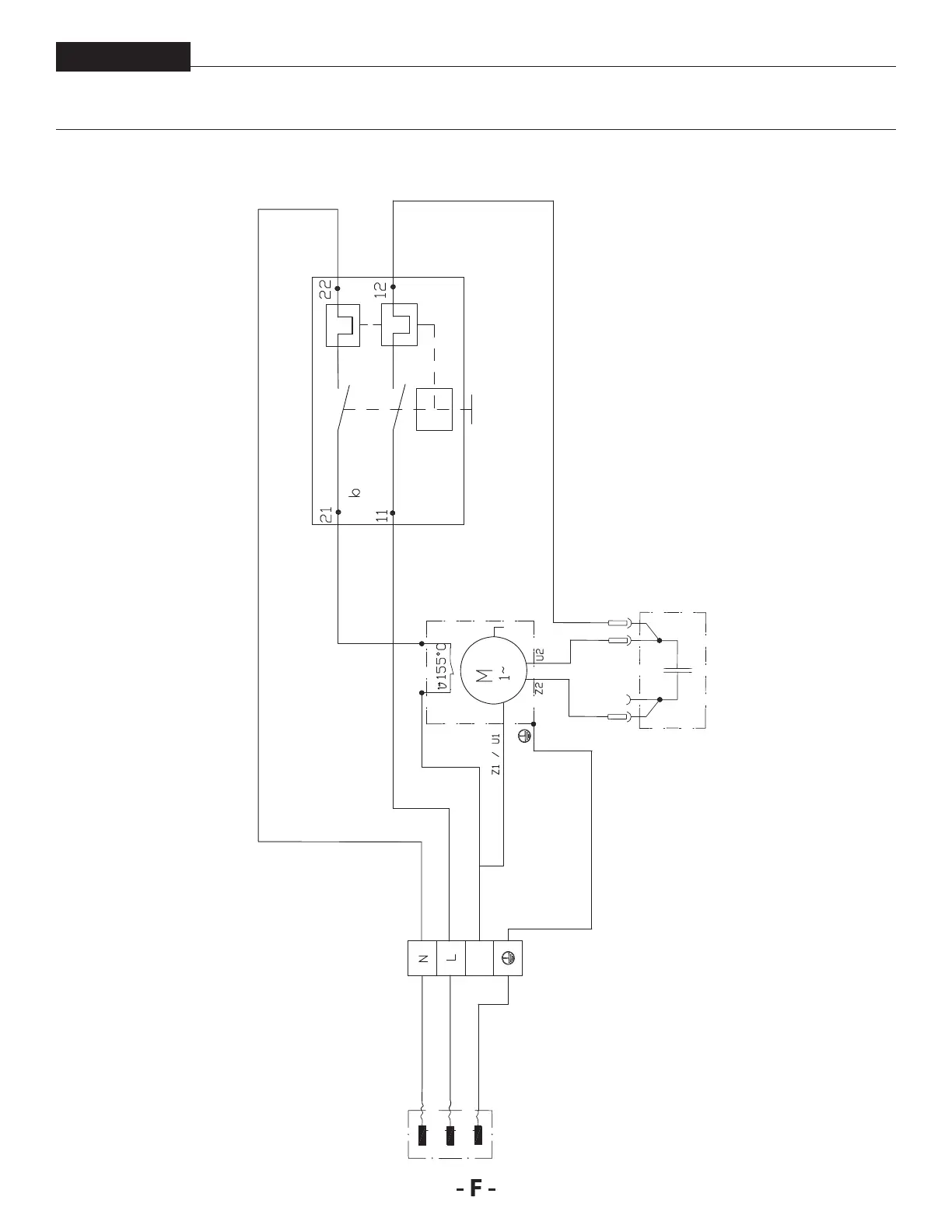

10.7 SCHÉMA ÉLECTRIQUE
