DESCRIPTION OF UNIT
ELITE 3000

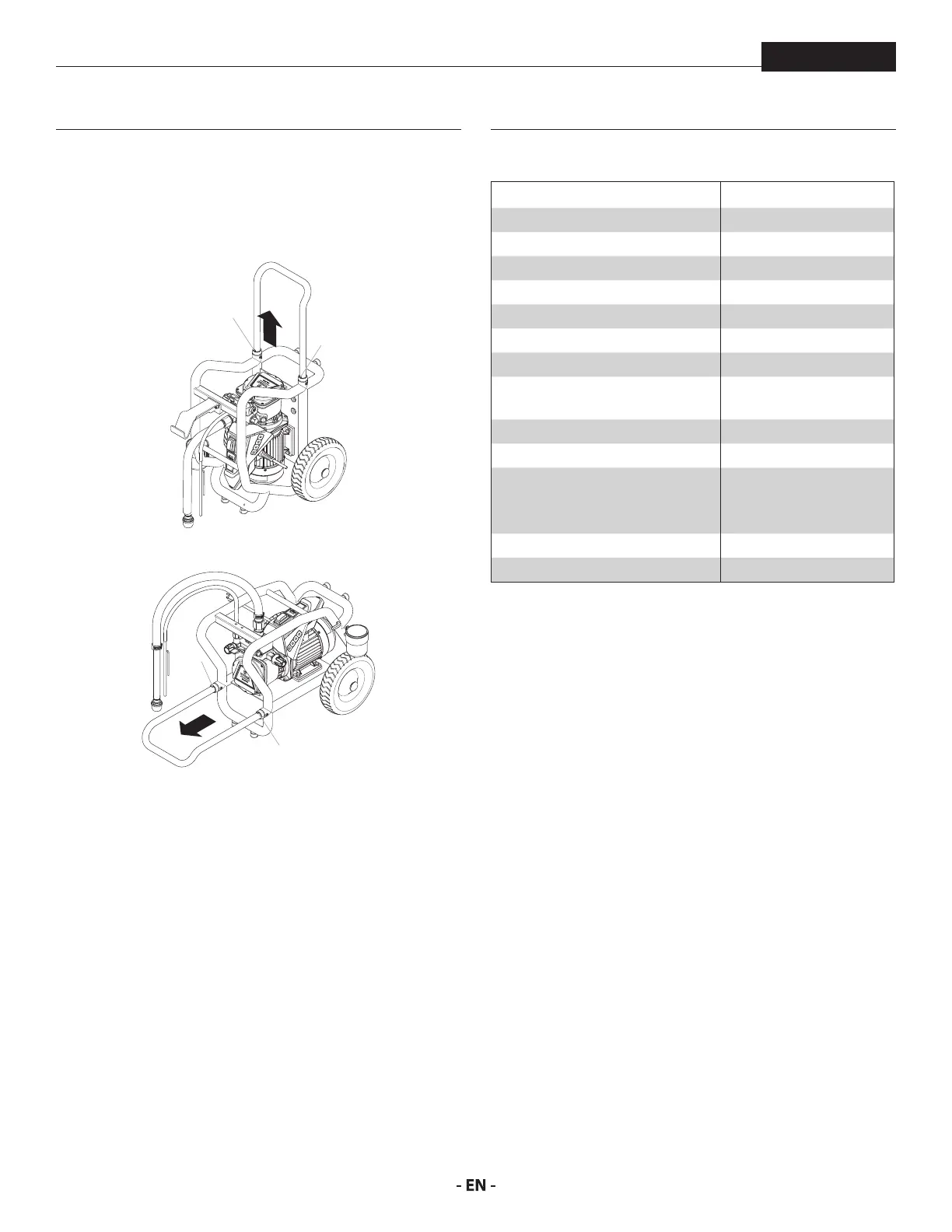

3.4 ADJUSTING THE HANDLE
The handle can be extended for easier transport. Pull the
handle until the snap buttons (1) hold the handle in place.
To retract, push the snap buttons and push the handle back in.
1
1
1
1
TRANSPORTATION IN A VEHICLE
Secure the unit in the vehicle by means of suitable fasteners.
The device can be placed on its side if necessary. In this case,
please ensure that no attachments are damaged.
Attention: Paint or solvent residues can escape from the
connections!
3.5 TECHNICAL DATA
Voltage : 120 V AC, 50/60 Hz
Fuses : 16 A time-lag
Power cord length: 6 m long, 3 x 1.5 mm²
Max. current consumption: 11 A
Rated input of device: 1.3 kW
Max. operating pressure : 3300 PSI (22.8 MPa)
Volume ow at 1800 PSI (120 bar) 0.60 gal/min
Max. tip size: 0.025”
Max. temperature of the coating
material :
109ºF
Max. viscosity : 20,000 mPas
Empty weight : 90 lbs
Hydraulic oil lling quantity :
Hydraulics housing
Gears (grease)
1.3 liter
45 g
Max. vibration at the spraygun : lower than 2.5 m/s²
Max. sound pressure level: 75 dB (A)*
* Place of measurement: 1 m distance from unit and 1.60
m above oor, 12 MPa (120 bar) operating pressure,
reverberant oor
