STARTUP
ELITE 3000
4 STARTUP
Press the inlet valve inside the coating material
inlet (4) downwards before starting the
operation. This ensures that the valve is not
blocked or clogged.

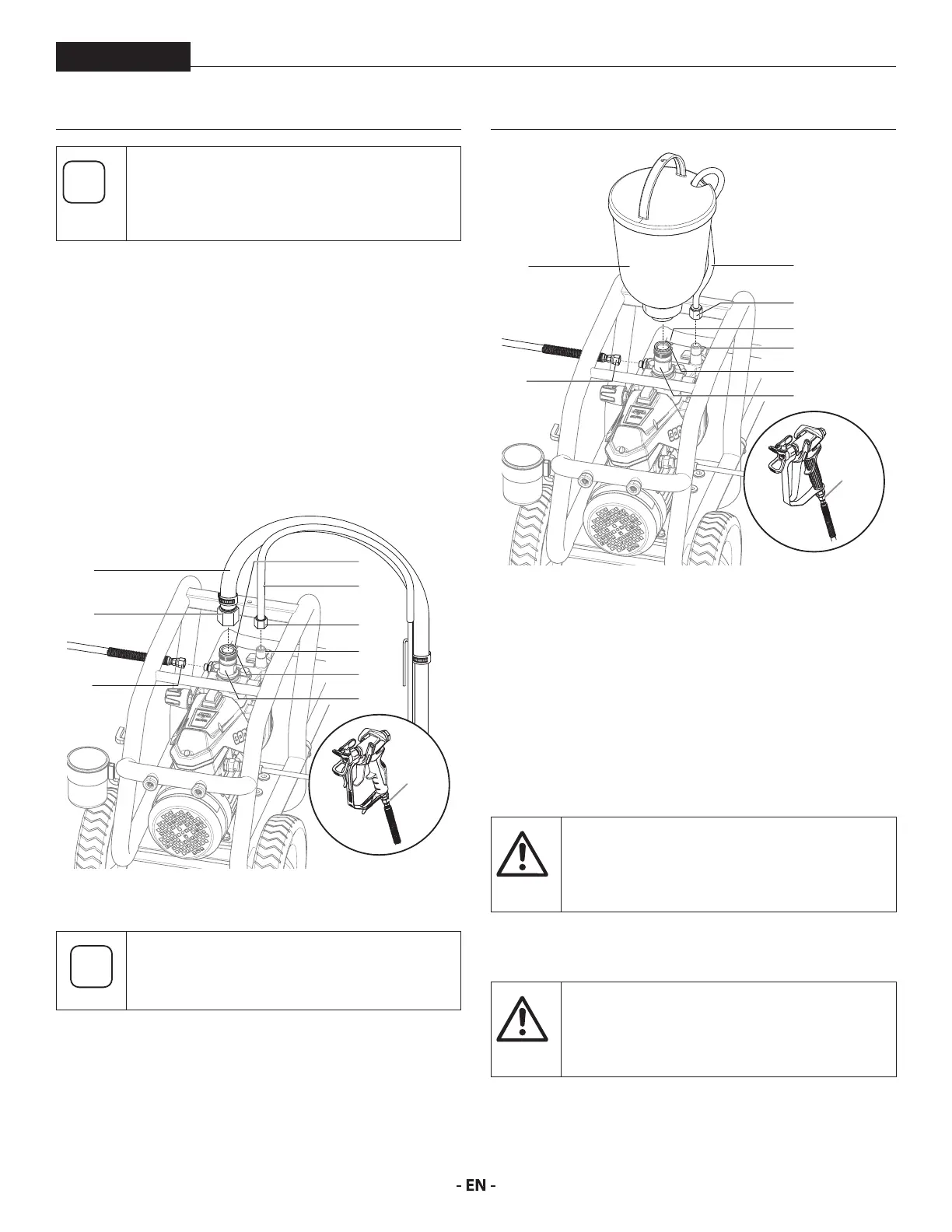

4.1 UNIT WITH SUCTION SYSTEM A
1. Ensure that the sealing surfaces of the connections are
clean.
Ensure that the red inlet (1) is inserted in the coating
material inlet (4).
2. Use the enclosed 41 mm wrench to screw the union nut
(2) at the suction hose (3) onto the coating material inlet
(4) and tighten it.
3. Screw the union nut (5) at the return hose (6) to the
connection (7) (22mm).
2
9
4
11
1
3
5
7
6
10
A
4.2 UNIT WITH OPTIONAL HOPPER B
The pail bracket will need to be removed in order
to install the hopper to the unit.
1. Ensure that the sealing surfaces of the connections are
clean. Ensure that the red inlet (1) is inserted in the coating
material inlet (4).
2. Screw the union nut (5) on the return pipe (6) onto the
connection (7).
3. Screw the upper hopper (8) onto the coating material inlet
(4).
9
8
4
4
11
1
7
6
10
B
4.3 HIGH PRESSURE HOSE AND SPRAY GUN
1. Screw the high pressure hose (9) onto the hose connection
2. Screw the spray gun (10) onto the high pressure hose
3. Tighten all union nuts on high pressure hose so that no
coating material can escape.
4. Screw the tip holder with the selected tip onto the spray
gun, align tip and tighten union nut.
5. Fully depress the pusher stem (11) to make sure the inlet
ball is free.
When unscrewing the high pressure hose, hold
rmly on the hose connection with a 22mm
wrench.
4.4 CONNECTION TO THE MAINS NETWORK
Connection must always be carried out via
an appropriately grounded safety outlet with
residual-current-operated circuit-breaker.
Before connecting the unit to the mains supply, ensure that the
line voltage matches that specied on the unit’s rating plate.
