REPAIRS AT THE UNIT
ELITE 3000

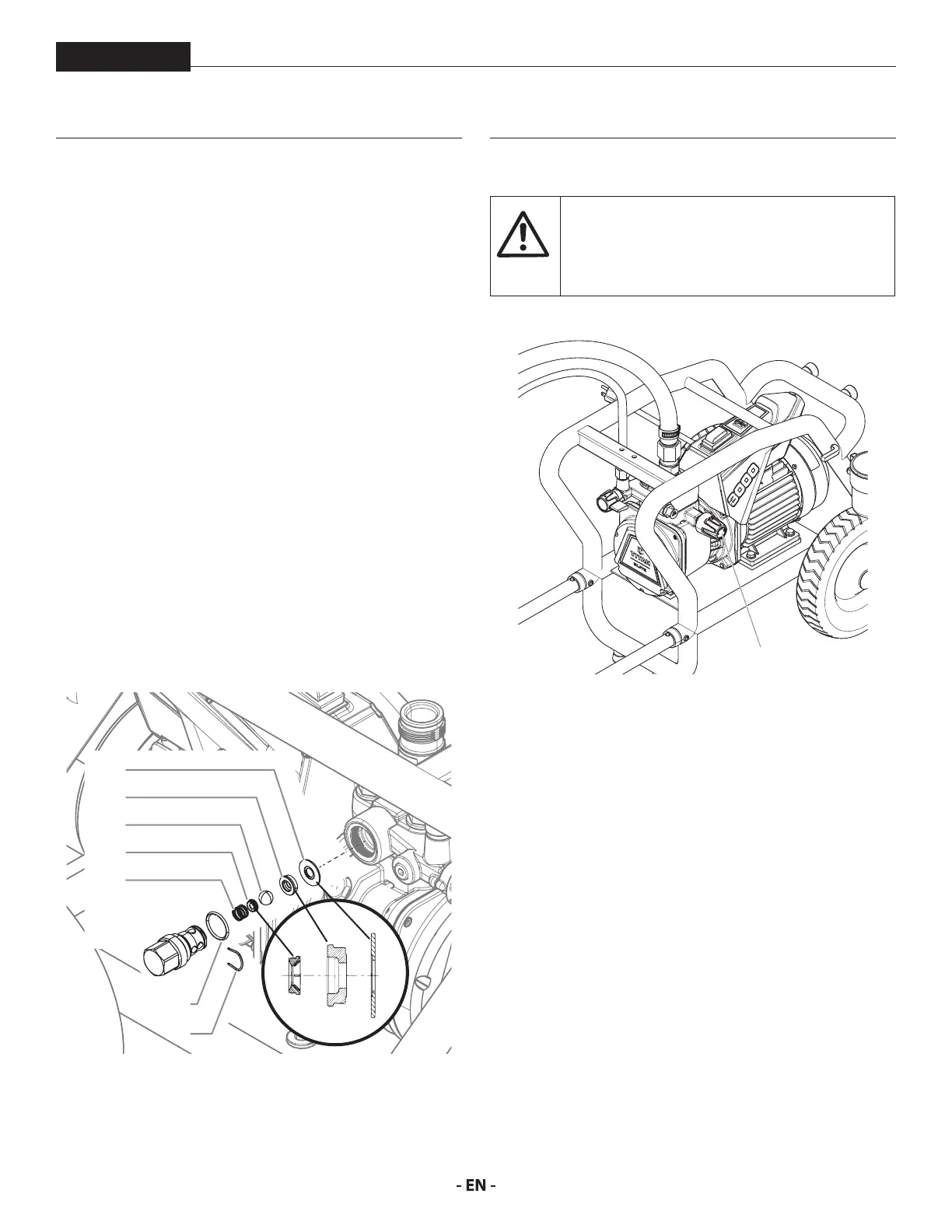

10.3 OUTLET VALVE
1. Use a 22 mm wrench to screw the outlet valve from the
paint section.
2. Carefully remove the clasp (1) using the enclosed
screwdriver. The pressure spring (2) pushes out ball (4) and
valve seat (5).
3. Clean or replace the components.
4. Check the O-ring (7) for damage.
5. Check the installation position when mounting the spring
support ring (3) (clipped onto spring (2)), outlet valve seat
(5) and seal (6), refer to gure.
PLEASE ALSO PAY PARTICULAR ATTENTION TO THE
FOLLOWING NOTES:
1. Use some light hammer blows on the end of the wrench
(20mm) to fully tighten outlet valve in the paint section
(this corresponds to approx. 90 Nm tighting torgue).
2. During normal operation, check regularly whether the
outlet valve has become loose.
3. Always also replace the seal (6) if you have dismantled the
outlet valve, regardless of which component you want
to replace. Note: The seal (6) is located unside the paint
section.
4. The groove in the seal (6) points outwards when replaced.
1
7
6
5
4
3
2
10.4 PRESSURE CONTROL VALVE
Only have the pressure control valve (1) replaced
by Titan Technical Service.
The max. operating pressure has to be reset by
Titan Technical Service.
