TM Robot Regular Payload Series - Table 7: the Relation between the Working Distance and the Field of View; Figure 31: Working Distance and Field of View of TM Robots EIH Camera

Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version:3.1 Document Version:1.01 43

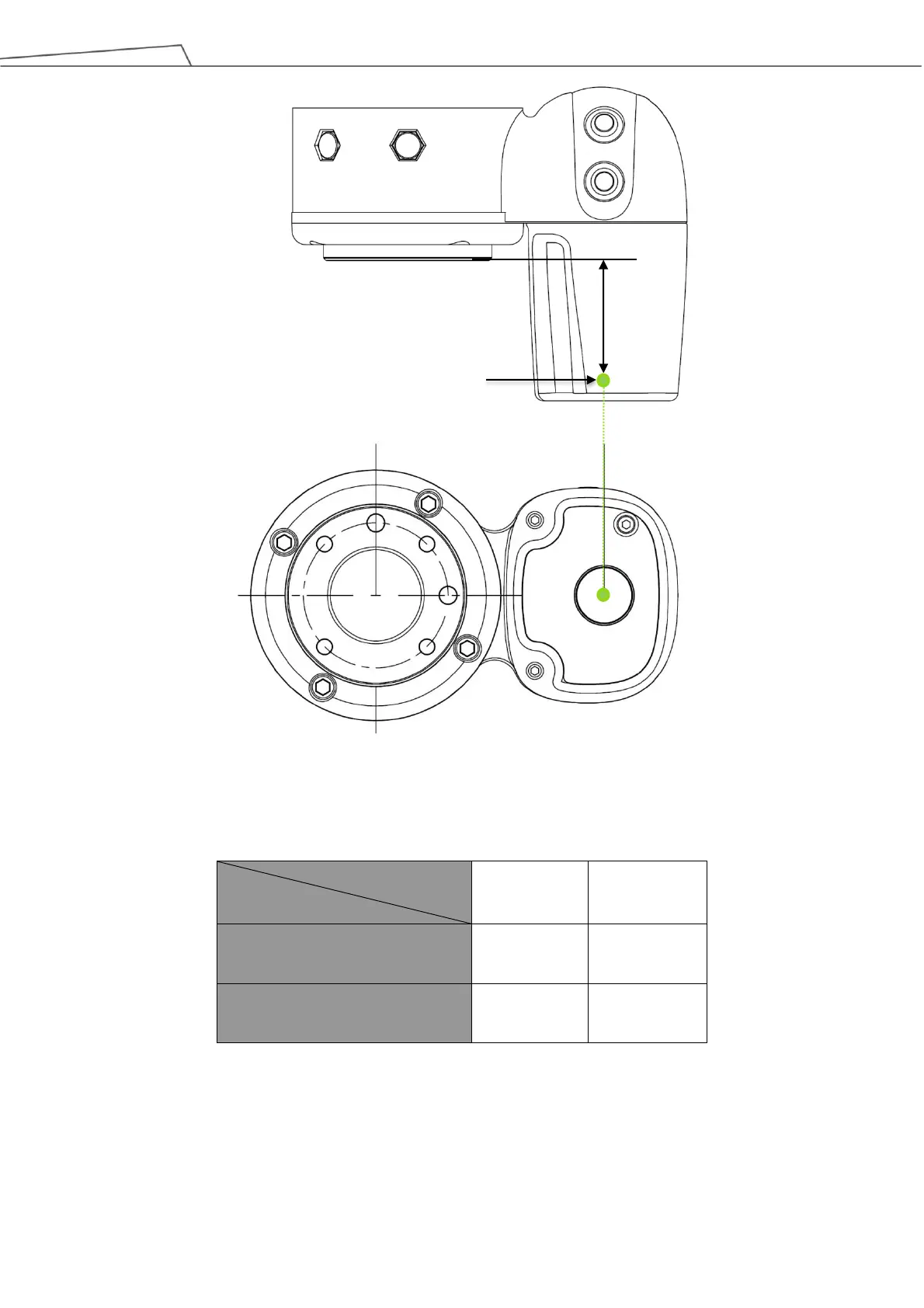

Figure 31: Working Distance and Field of View of TM Robot’s EIH camera
The relation between the working distance and the field of view is listed below.
Working distance (mm)
Field of view (mm)
300
100
Width
281.6
96.9
Height
211.2
72.7
Table 7: The Relation between the Working Distance and the Field of View
48.6
Working distance = 0
