TM Robot Regular Payload Series - Figure 42: Set to Sink Output Type

To Next Page

To Previous Page

Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version:3.1 Document Version:1.01 51

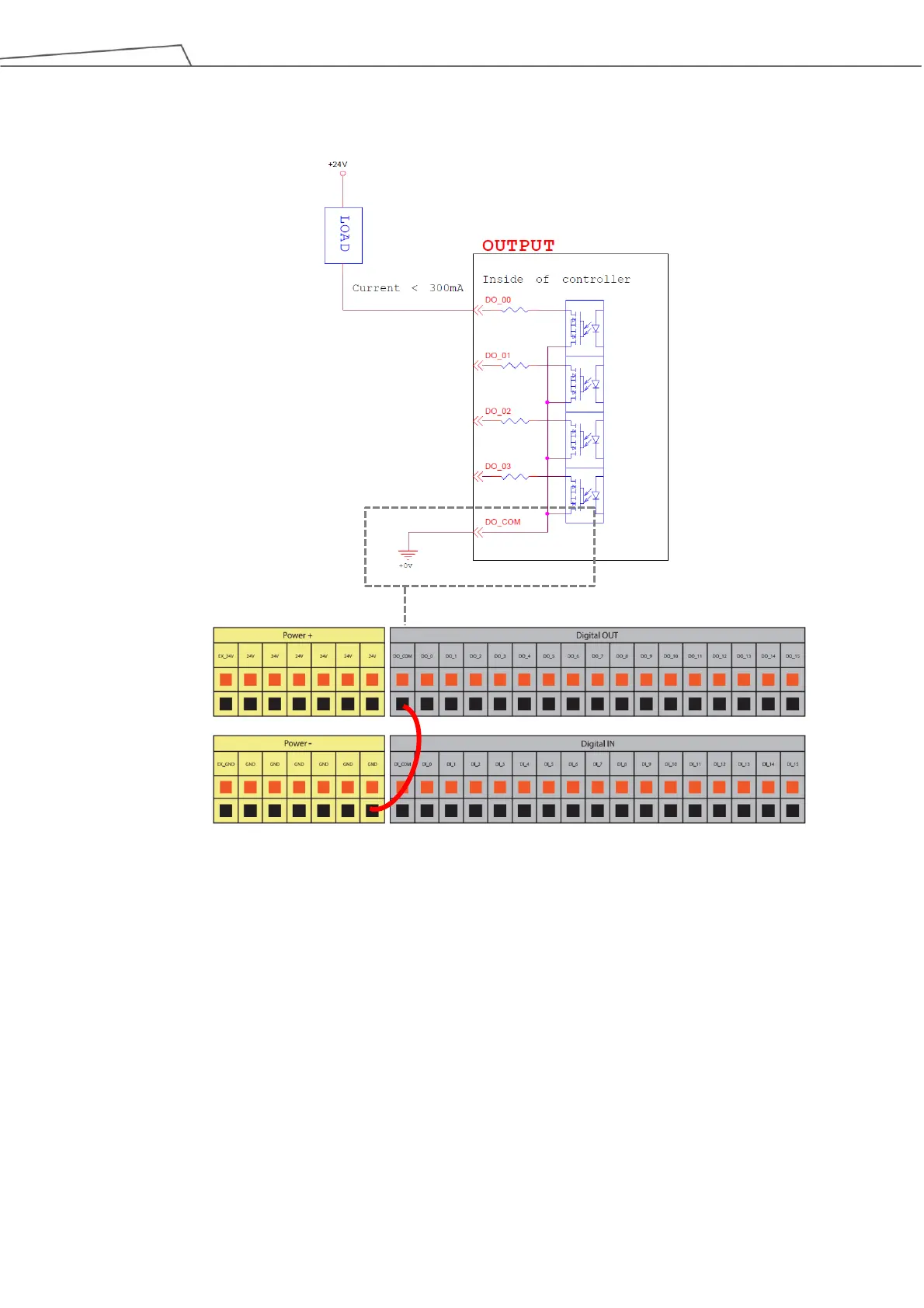

 Set to sink output type

Connect DO_COM terminal to the minus side of the power supply.

Figure 42: Set to Sink Output Type

 Set to source output type

Connect DO_COM terminal to the plus side of the power supply.
