TM Robot Regular Payload Series - Analog out; System Remote Power ON;OFF; Figure 44: Analog in; Figure 45: Analog out

Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version:3.1 Document Version:1.01 53

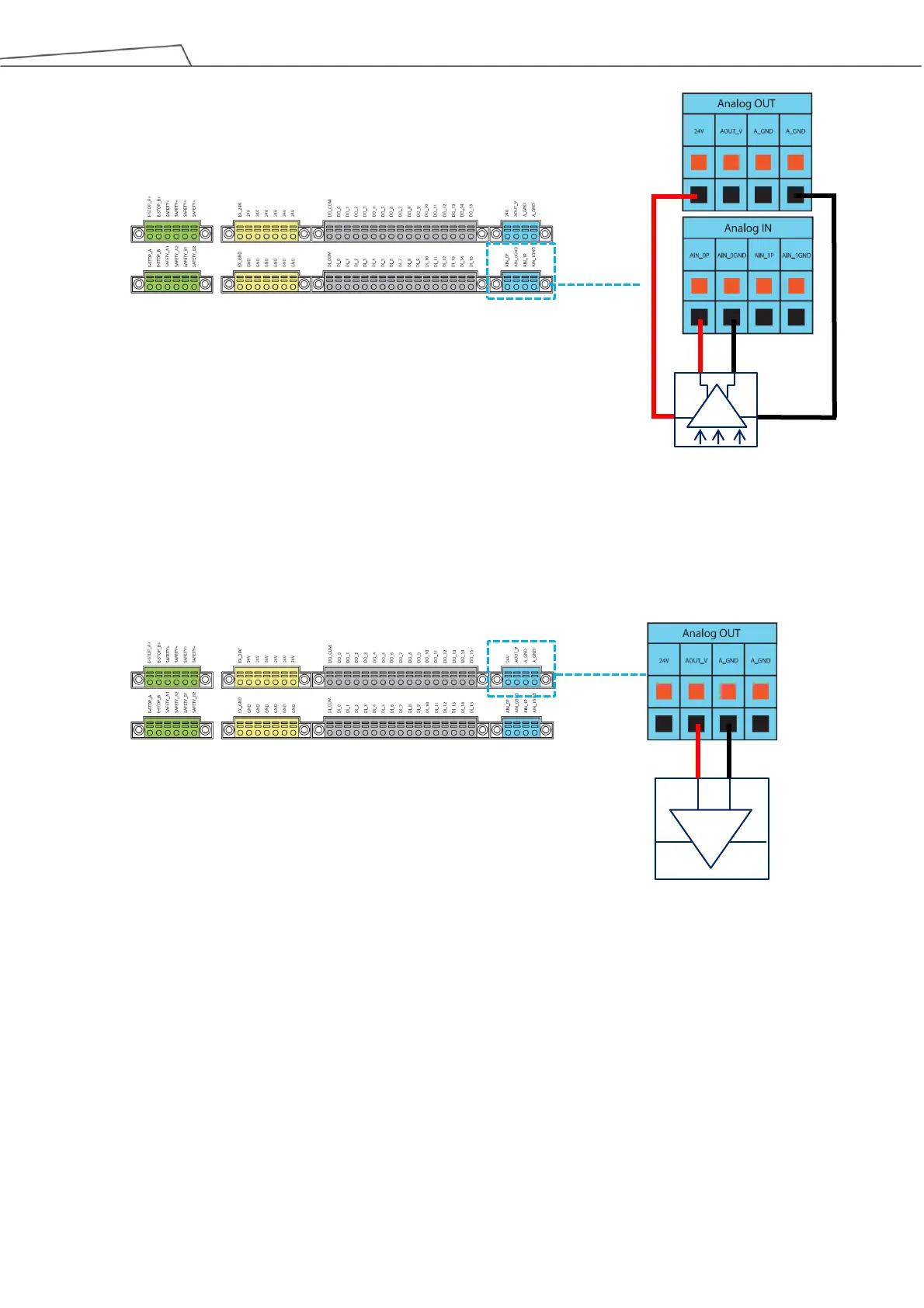

Figure 44: Analog In
5.3.5 Analog Out
Analog Out only supports a voltage mode and detection range of -10.00 V ~ +10.00 V.
Figure 45: Analog Out
5.3.6 System Remote Power ON/OFF
The function of Remote ON/OFF shares the same functionality of the Robot Stick Power Button.
+
-
+
-
