Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version:3.1 Document Version:1.01 55

Wire color

Pin define

Brown

+24v

24V output

Red

DI_0

Digital Input0

Orange

DI_1

Digital Input1

Yellow

DI_2

Digital Input2

Green

DO_0

Digital

Output0

Blue

DO_1

Digital

Output1

Purple

DO_2

Digital

Output2

Black

+0V

+0v

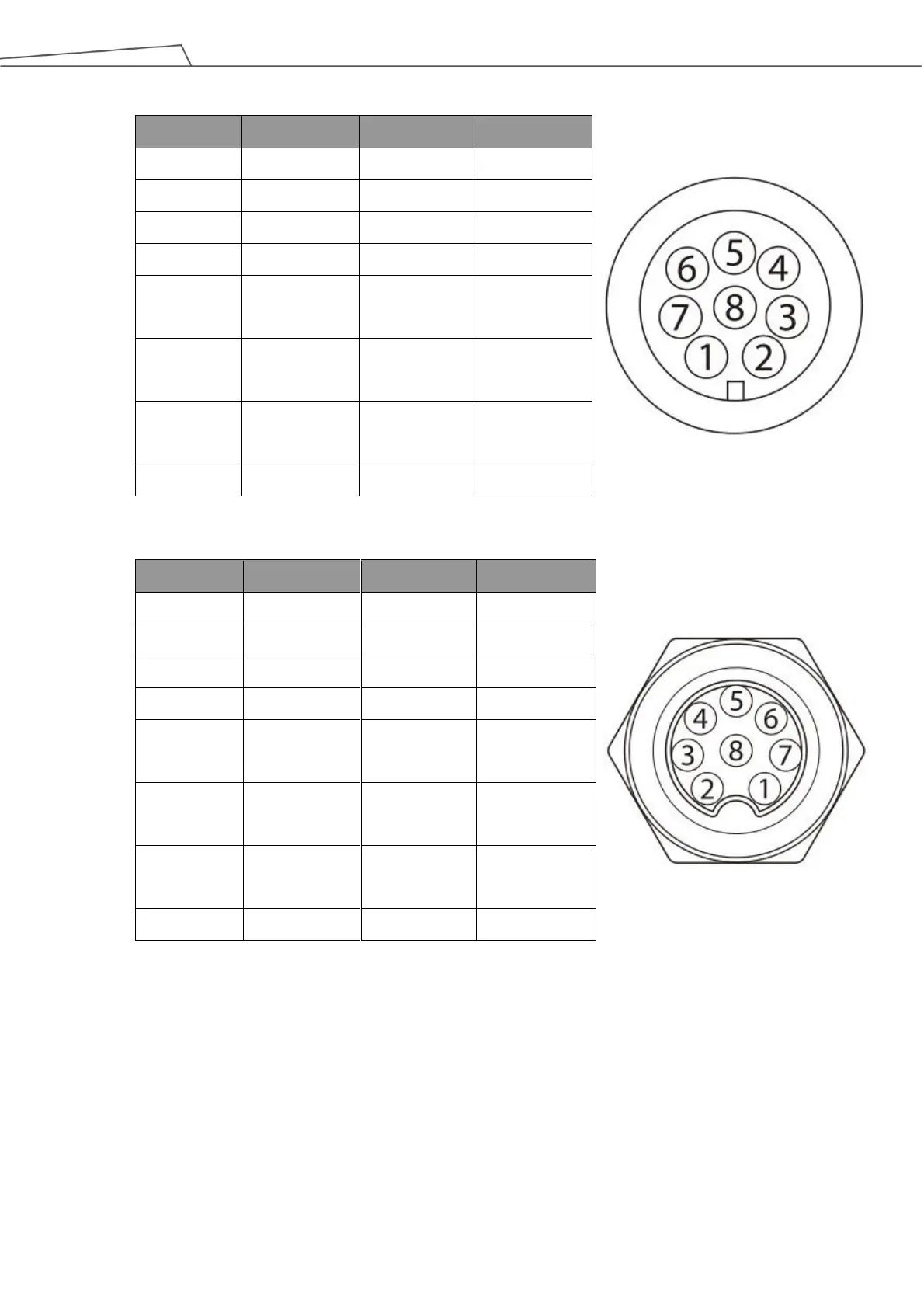

Table 8: 8-pin Digital I/O Connectors of Cable

Wire Color

Pin Define

Brown

+24v

24V output

Red

DI_0

Digital intput0

Orange

DI_1

Digital intput1

Yellow

DI_2

Digital intput2

Green

DO_0

Digital

outtput0

Blue

DO_1

Digital

outtput1

Purple

DO_2

Digital

outtput2

Black

+0V

Table 9: 8-pin Digital I/O Connector of Robot
