Toa EV-700 - Installation; Mounting the Unit in an Equipment Rack; Installing the Unit on the Desk

92

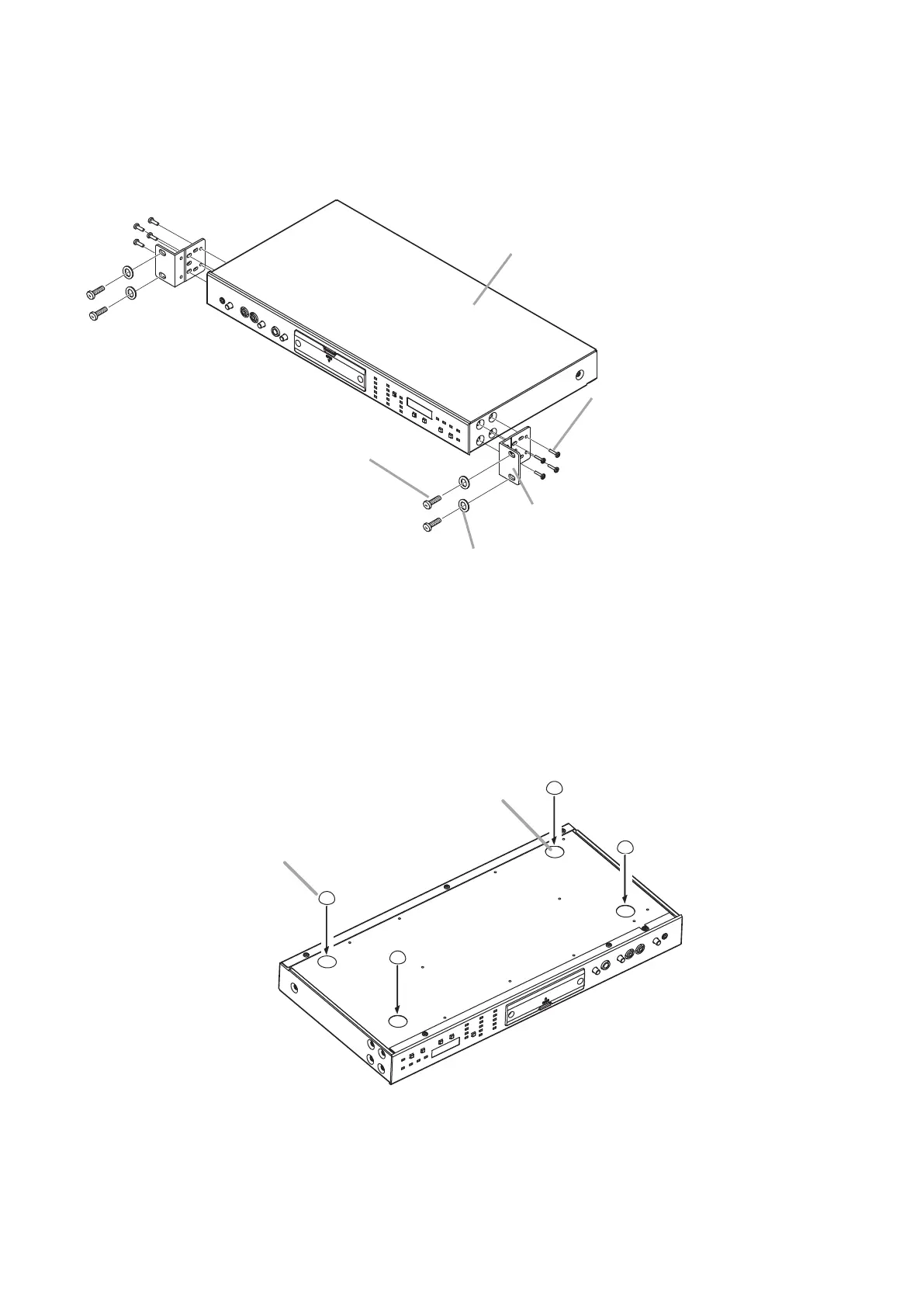

Rack mounting screw 5 x 12
(supplied with the MB-15B)
Fiber washer for M5
(supplied with the MB-15B)
EV-700
MB-15B (option)
Machine screw M3 x 12*
Note
Do not use the screws supplied
with the optional MB-15B.
Remove the screws used for fixing
the unit’s case, and use them to fix
the MB-15B to the unit.
*
Attach over a dimple.
Rubber foot (accessory)
EV-700
28. INSTALLATION
28.1. Mounting the Unit in an Equipment Rack
When mounting the unit in an equipment rack, use the optional MB-15B Rack mounting bracket.
28.2. Installing the Unit on the Desk
When installing the unit on the desk, attach the supplied rubber feet to the unit's bottom surface.
