38
BASIC OPERATIONS
BASIC OPERATIONS
FUNDUS TOMOGRAPHY

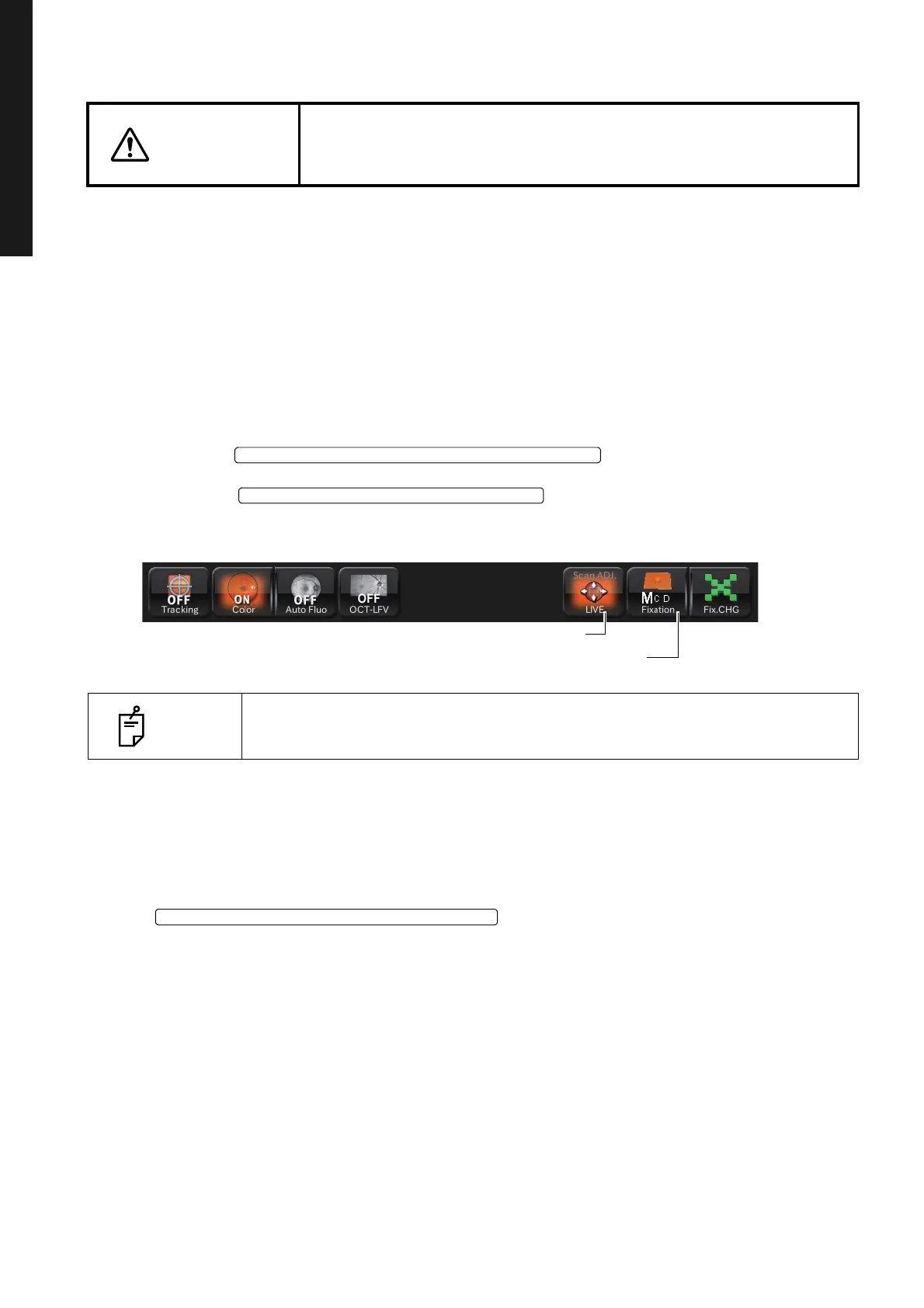

Setting the picture position
You can change the default picture position, which is set according to the selected capture icon. If nec-
essary, you can change the default position to the external fixation target.
There are the following three changing methods. Please change the picture position by your desired
method.
• Changing by using the internal/external fixation target selector button (touch display)
This method is used to change the internal fixation target position and to change the internal fixation
target to the external fixation target.
1 Touch the on Area 2 of photography screen
(OCT photography) to change the picture position.
Press the on the control panel, and the target is
changed to the external fixation target. Change to the desired picture position. For the details
of display, refer to P.17.
• Changing by using the internal fixation target position move button (control panel)
Change the picture position by adjusting the internal fixation target position finely.
1 As watching the fundus live image area, press the
up, down, right and left on the control panel to
adjust the internal fixation target position.
CAUTION
To avoid injury of the patient, be careful not to bump the patient's eye or
nose with the instrument when operating the control lever or touch dis-
play.
NOTE
When the external fixation target is used, operate the arm to guide the patient's
eye to the correct position.
INTERNAL FIXATION TARGET POSITION SELECTOR BUTTON
EXTERNAL FIXATION TARGET SELECTOR BUTTON
Internal fixation target position selector button
Scan position button
INTERNAL FIXATION TARGET POSITION MOVE BUTTON
To Next Page
