OBJECTIVE OPERATIONS
Setting the picture position
Tapping the on Area 2 of the photography screen
(OCT photography), set the picture position. Each time you press the
, the picture position is changed to "C" (the middle
position of optic disc and macula), "M" (macula center) and "D" (optic disc center) in this order. Set the
picture position to "C" for the middle position of optic disc and macula, "M" for macula, and "D" for optic
disc. To take a picture of anterior segment, set to "External fixation target" by the
on the control panel.
Setting the illumination level
Set the illumination level by touching the [Illumination level] display on the fundus/anterior segment live
image area. Refer to "Setting the illumination level" on page 40.
Setting the flash level
Set the flash level by touching the [Flash level] display on the fundus/anterior segment live image area.
Refer to "Setting the flash level" on page 40.
Changing the diopter compensation lens
Turn the diopter compensation lens selector to change the diopter compensation lens to "0". Refer to
"Changing the diopter compensation lens" on page 41.
NOTE
In the color fundus photography (normal), the flash level is automatically
changed to the recommended setting (4.0W·s when the reference value is "0").
For details, refer to "RELATION BETWEEN THE SETTING OF THE ILLUMINA-
TION/FLASH LEVEL AND MAXIMUM RADIANCE" on P.118.

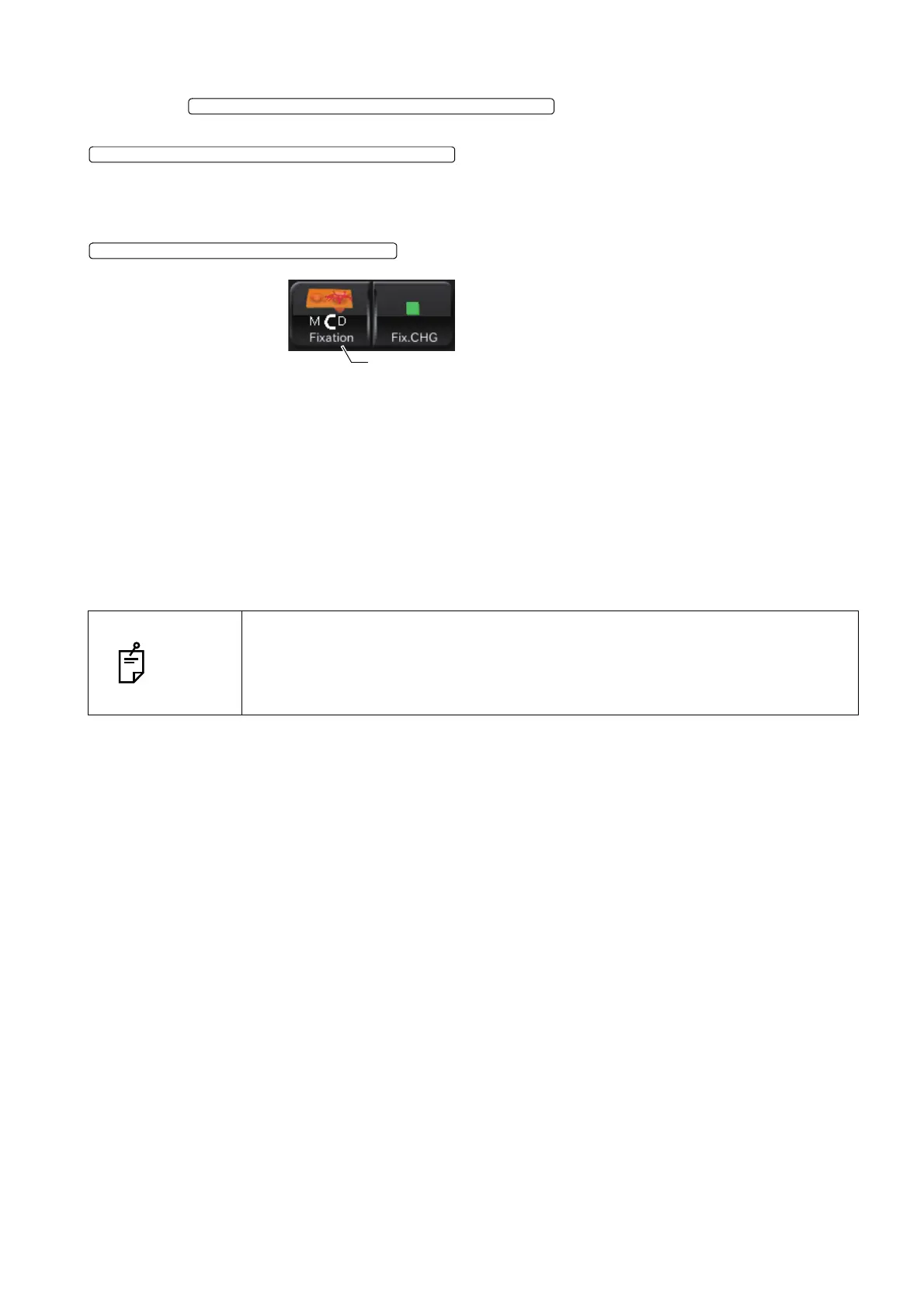

INTERNAL FIXATION TARGET POSITION SELECTOR BUTTON
INTERNAL FIXATION TARGET POSITION SELECTOR BUTTON
EXTERNAL FIXATION TARGET SELECTOR BUTTON
Internal fixation target position selector button
