Topcon HiPer Ga User Manual

HiPer Ga/Gb Configuration
HiPer Ga/Gb Operator’s Manual
3-4
2. Open Modem-TPS, and select the COM Port the receiver is
connected to (Figure 3-1 on page 3-4). Click Connect.

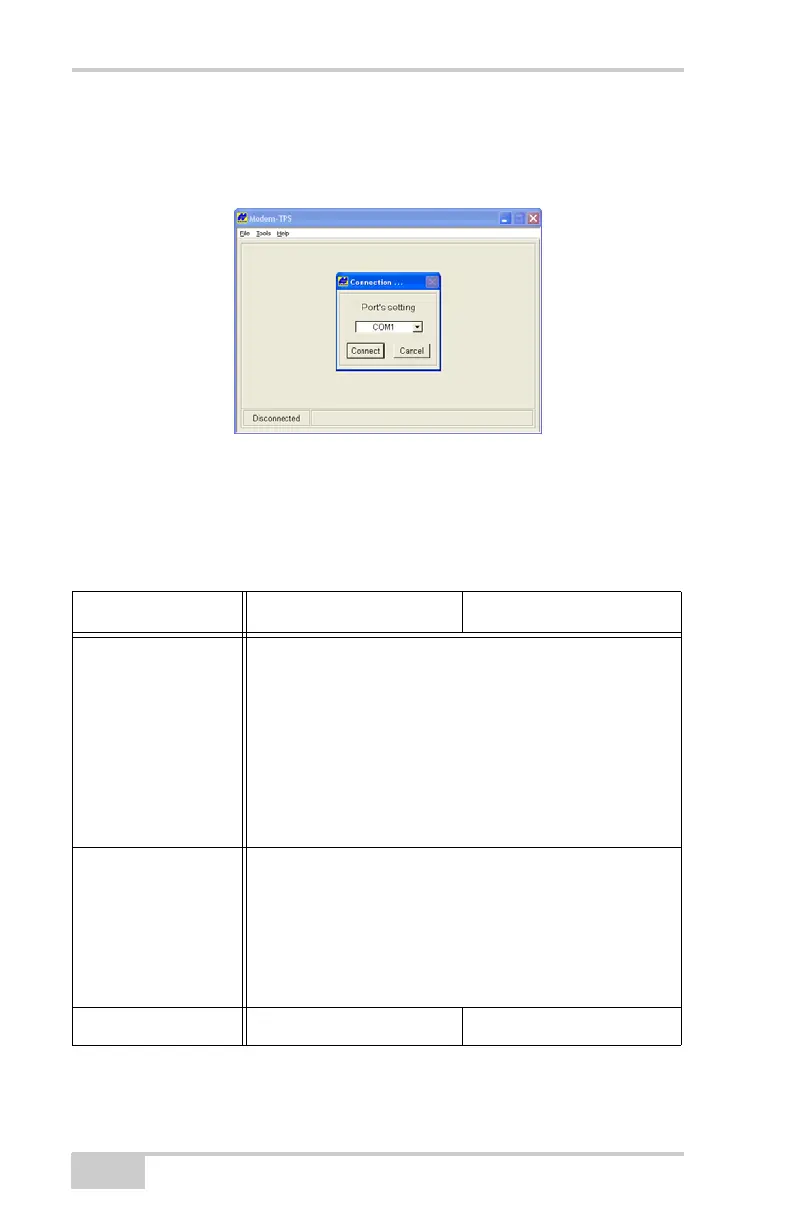

Figure 3-1. Connect to Modem-TPS
3. On the Radio Link tab, set the following parameters (Table 3-1)
for the base station’s and rover’s radio modem, and click Apply
(Figure 3-2 on page 3-6).
Table 3-1. Receiver Parameters for the Radio Link Tab
Parameter Base Receiver Rover Receiver
Protocol • Select PDL w/EOT to work with Pacific Crest
compatible modems
• Select TRMB to work with Trimble UHF compatible
modems
• Select Simplex to work with TPS Digital UHF
compatible modems
Note: The same protocol must be used for both the base
and rover to communicate properly.
Modulation • If PDL w/EOT or TRMB protocol is selected, use
GMSK (recommended for most applications).
• If Simplex protocol is selected, use either DBPSK or
DQPSK.
Note: The same modulation must be used for both the
base and rover to communicate properly.
Mode Select Transmitter Select Receiver
