Topcon HiPer Ga - Page 72

HiPer Ga/Gb Configuration
HiPer Ga/Gb Operator’s Manual
3-16

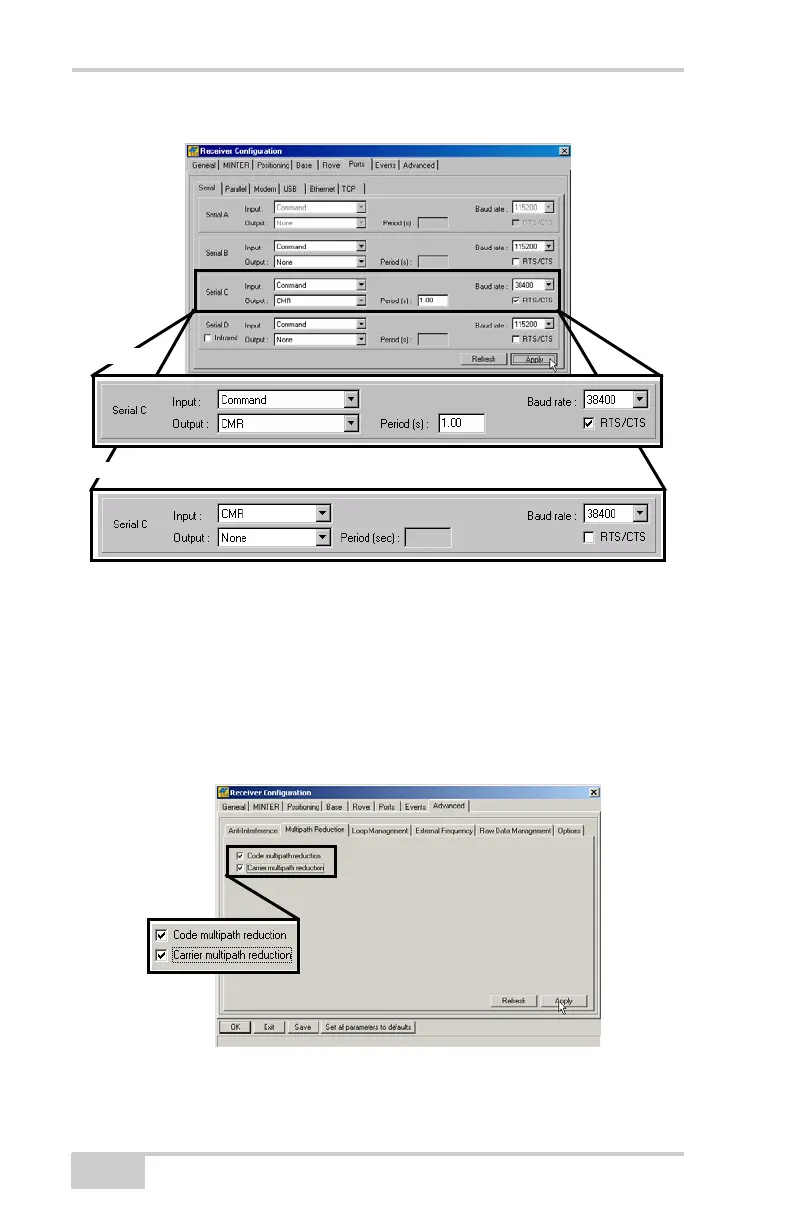

Figure 3-12. Base and Rover Configuration for RTK Surveys – Ports
12. Click the Advanced tab, and then the Multipath tab. Set the
following parameters, and click Apply (Figure 3-13 on
page 3-16).
• Code multipath reduction – enable
• Carrier multipath reduction – enable
Figure 3-13. Configure Mulitpath Parameters
13. Click OK to save the settings and close the dialog box.
Base
Rover
