Topcon KR-1 - RECOVERY FROM POWER SAVE STATUS; ADJUSTING THE CONTROL PANEL POSITION

23
PREPARATIONS
RECOVERY FROM POWER SAVE STATUS
This instrument adopts the power save system for saving electric power. When the machine is
not operated for a set time, the control panel becomes a screensaver.
1 Tap the control panel.
In a few seconds, the measurement screen is displayed and measurement is enabled.
ADJUSTING THE CONTROL PANEL POSITION

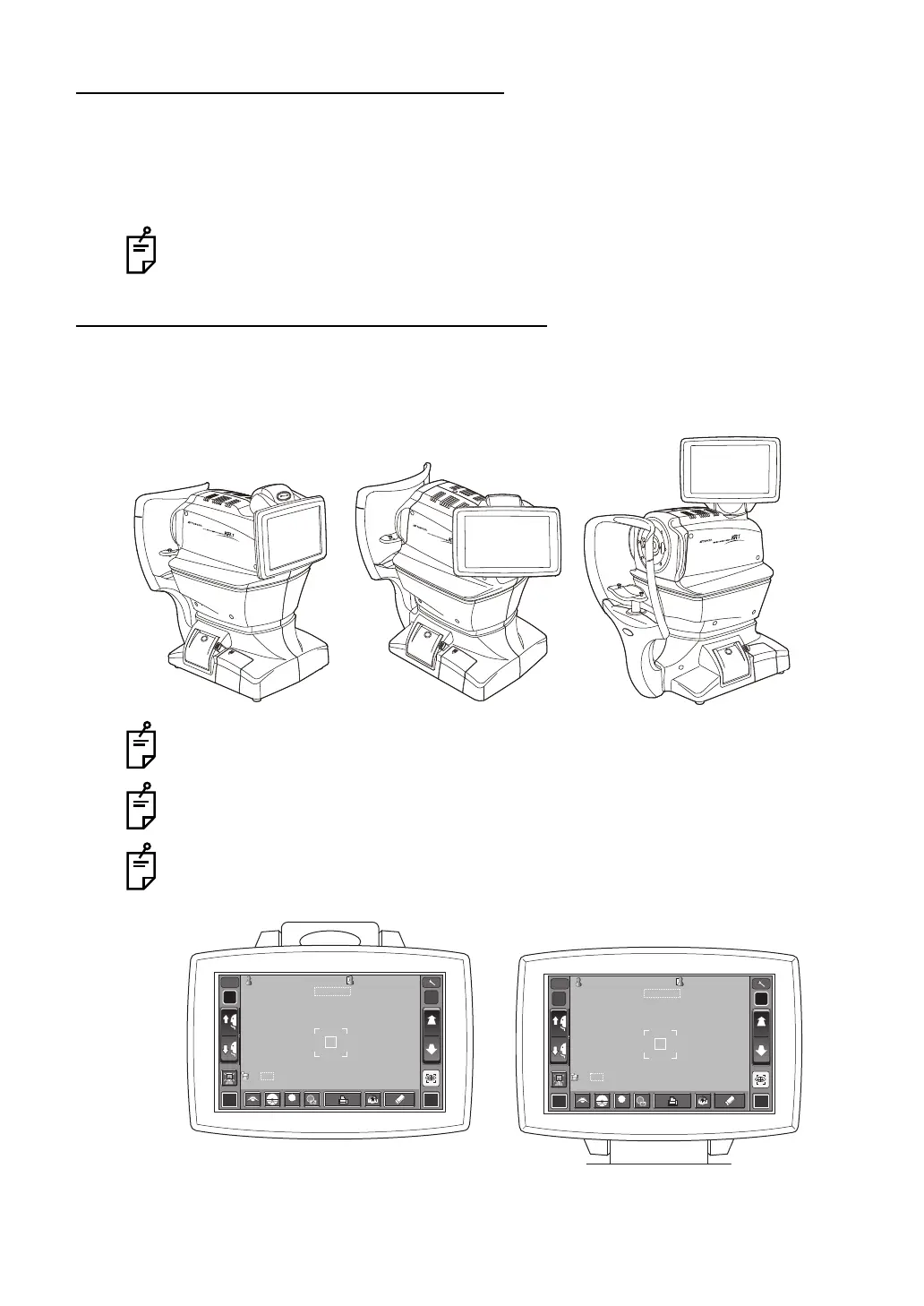

The control panel may be positioned by swinging and tilting the monitor to your desired
position. Touching the control panel controls operations including chinrest movements,
alignment and measurement.
The time to start the power save status can be changed in the initial setting "Auto
power save" (see page 48).
The layout of R button/L button is reversed according to the position of the control
panel.
The moving direction by tapping is changed according to the position of the control
panel.
The moving direction by continuing to press on control panel is changed for the
setting of Initial setting "XZ MOTOR direction". (see page 50).
