BASIC OPERATIONS
BASIC OPERATIONS
PREPARATION BEFORE MEASUREMENT
TURNING ON THE INSTRUMENT
1 Make sure the power cable is connected properly.
For the details of connection, refer to “CONNECTING POWER CABLE” on page 19.
2 Press on the SWITCH.
3 Make sure that the title screen is displayed and then the MEASUREMENT screen is dis-
played in a few seconds.
SELECTING THE MEASUREMENT MODE
This product has three measurement modes: R/K (REF/KRT continuous measurement), KRT
(KRT single measurement) and REF (REF single measurement).
1 Check that the MEASUREMENT screen is on.

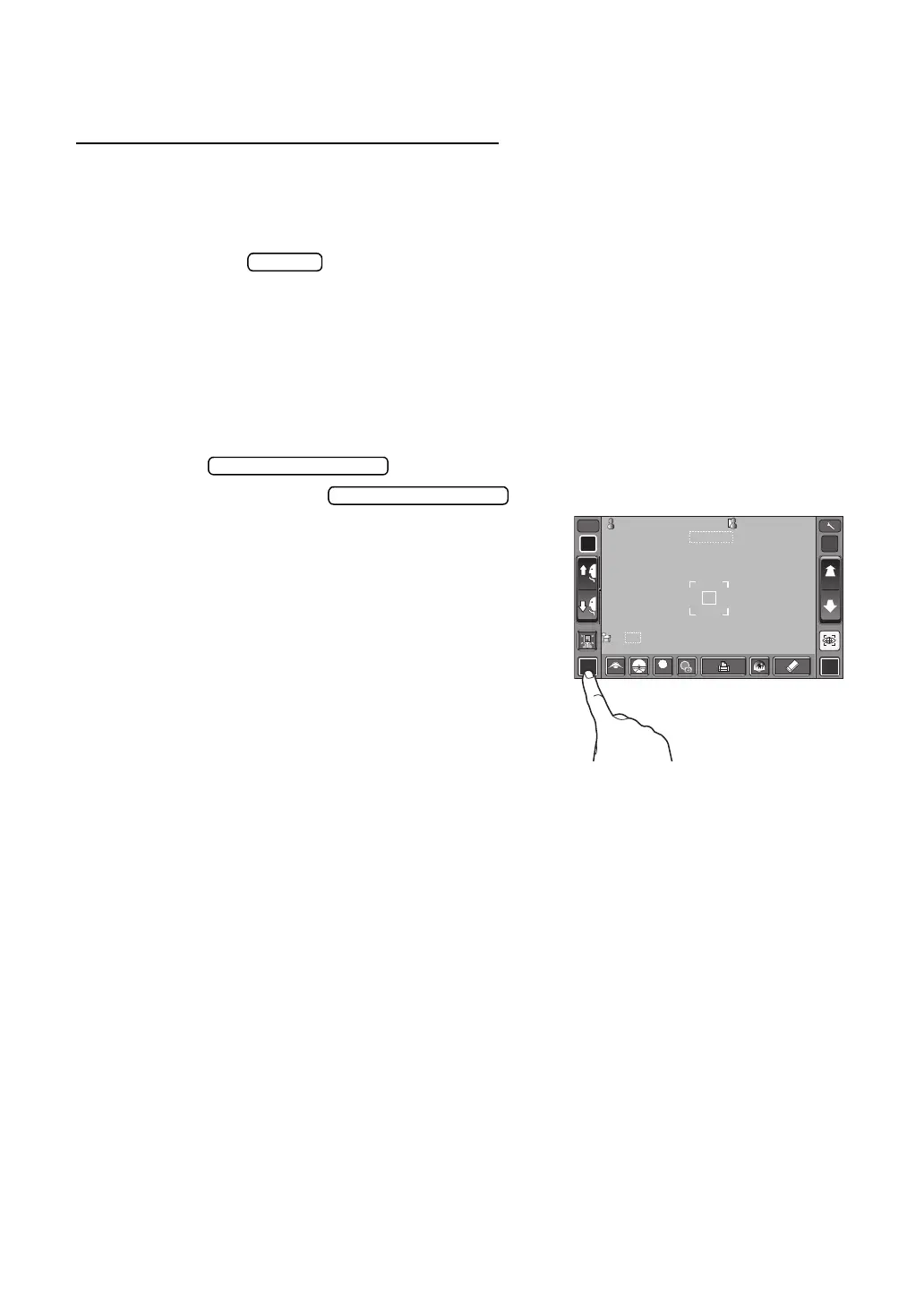

2 Tap the button on the control panel and select the measurement
mode. Indication of the button is changed.
REF: Only REF measurement
KRT: Only KRT measurement
R/K: REF/KRT continuous measurement
POWER
MEASUREMENT MODE
MEASUREMENT MODE
R
ID
L
R/K
