32
OPERATION PROCEDURE

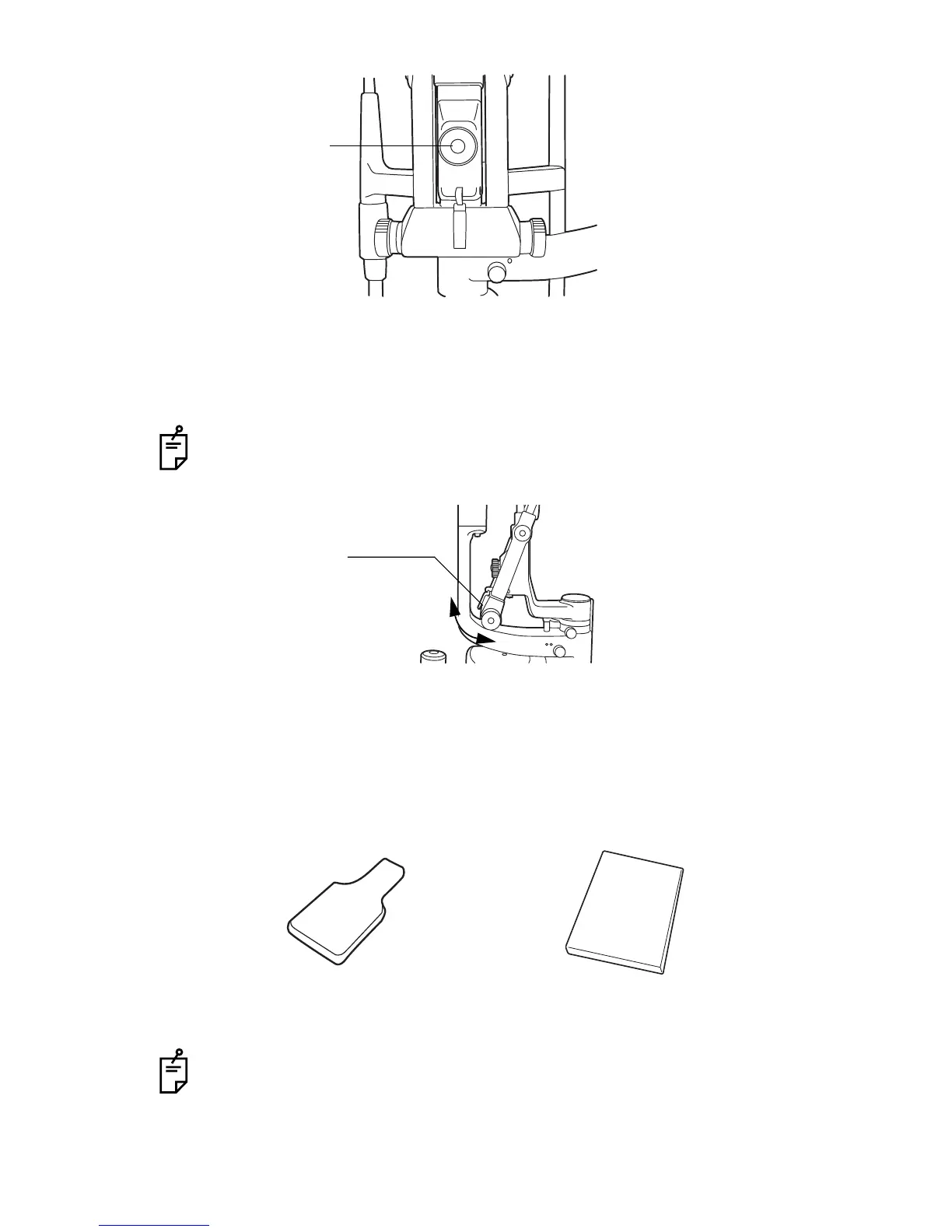

INCLINED ILLUMINATION
Press to unlock the inclination lever and pull.
The illumination unit is inclined for inclined illumination up to 20° in 5° steps.
REFLECTION MIRROR
For this instrument, a battledore mirror and a square mirror are available. For normal observa-
tion, the battledore mirror is used.
However, if the arm angle scale, which represents the angle formed by the illumination arm
and micro-scope arm, reads approx. 3° to 10° and the observation light flux is disturbed by the
battledore mirror, then the square mirror should be used.
The square mirror is to be used when the arm angle is opened to more than 10°.
This function is used for observing a horizontal cross section, and for corner angle
and fundus observation.
The square mirror is standard accessory.
Centering knob
Inclination lever
Square mirrorBattledore mirror
