Percent Scale (2 Fields to set: Program number, percent value)
Adjusts the run time of stations assigned to the program by percentage ranging from 0 to 255% (100% = no change).
Slot-Station-Time (5 Fields to set: Program number, slot, station, run time duration hour and minute)
One of the most powerful programming features of the Sentinel Controller is the method used to organize and control satellite
station outputs, referred to as “Program Slots”, within each irrigation program. “Program Slots” are organized in a sequential matrix from
Slot 1 to Slot 48, for a total of 48 slot positions. From the factory, the Slot and Station numbers are set to be the same; i.e., Station 1 is as-
signed to Slot 1 and will run rst. Station 2 will run next in Slot 2, etc.
The program operating sequence runs from Slot 1 to 48. Stations are assigned to a slot and given a run time duration ranging from 0 to 4
Hour and 15 Minutes. Station numbers range from 0 (inactive) to 48. Stations can be assigned to slots in any order and as many times as de-
sired (that is, one station can appear multiple times in the 48 Slots of one program).
When an irrigation program is running, any slot with 0 (or blank) run time is ignored. A slot with an assigned run time duration ≥1 minute,
but without a station assignment, will create a pause in the watering cycle for the assigned duration.
Sentinel programming allows reconguring the operating order of the stations by enabling any station to be assigned to any slot.
Note: This feature (The Slots in a Program) allows the user to run any station in any order desired and even repeat the desired station within the same program.
Keep in mind that the controller will run the slots sequentially. Stations can be assigned to slots allowing any order of programming.

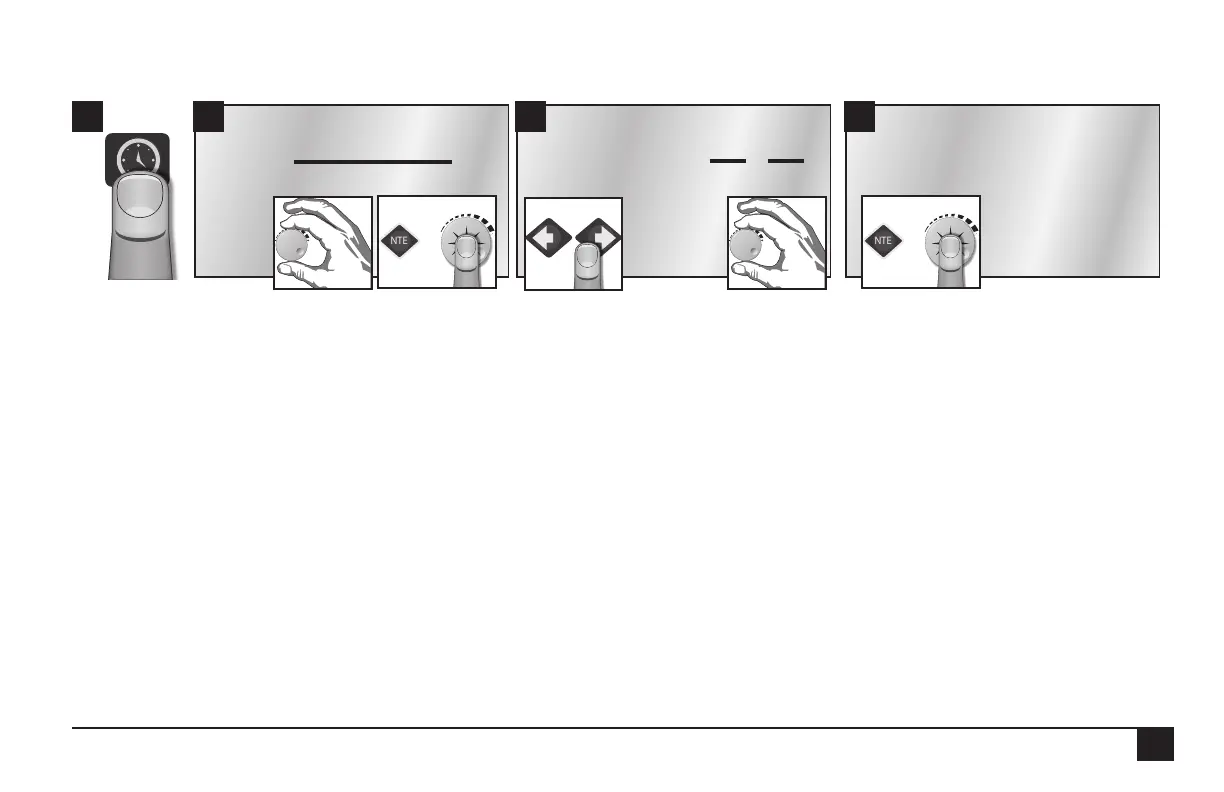

Percent Scale
P01 050%
SCHEDULED WATERING
Percent Scale
** SAVED! **
P01 050%
2 3 41
To Next Page
