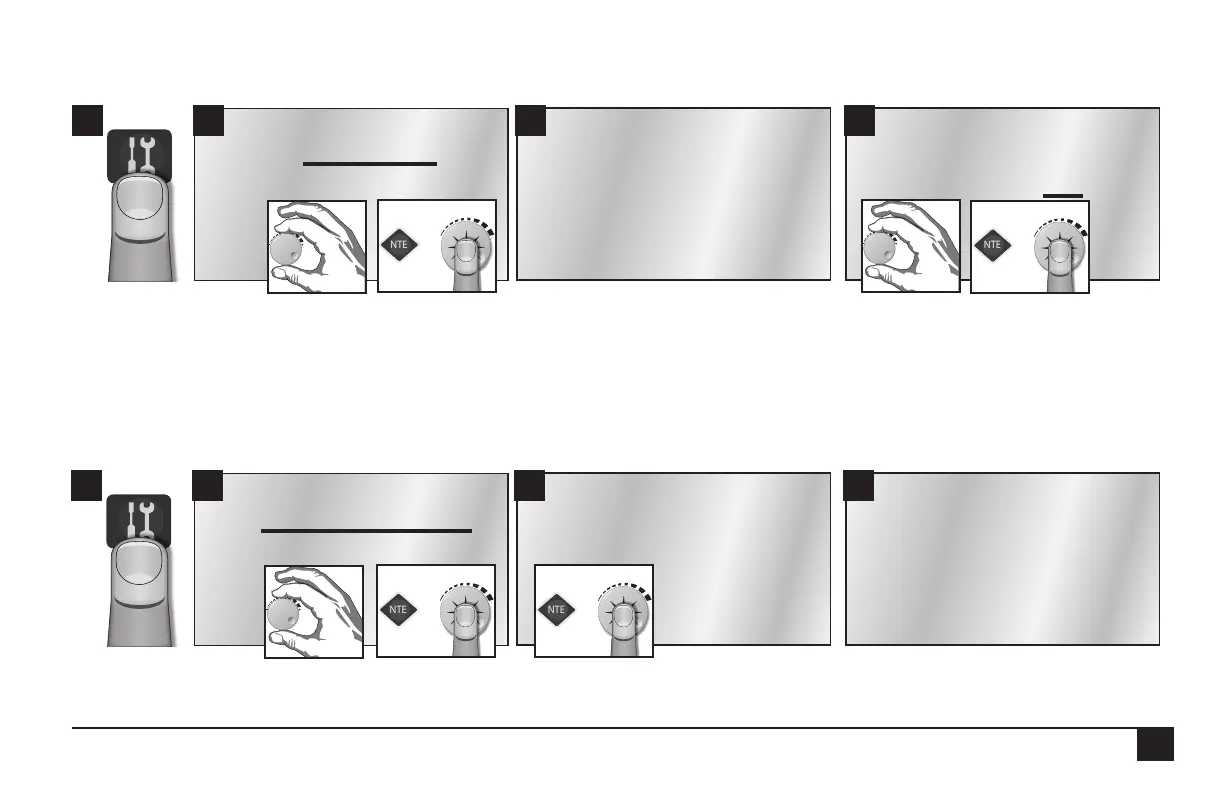

Display Test
Will clear display and turn on every pixel one line at a time. Watch display for any missing or stuck pixels.
Port 1/Front Test
Check the hardware function of the port. Requires a loop back adapter plugged into the port to test. Otherwise the test will fail.
2 3 41
ENTER
- OR -
ENTER
- OR -
Display TestDIAGNOSTICS & ALARMS
Display Test
Display Test
Did Test Pass ?
YES
2 3 41
ENTER
- OR -
ENTER
- OR -
Port 1/Front TestDIAGNOSTICS & ALARMS
Port 1/Front Test
Port 1/Front Test
SUCCESS

Toro Sentinel Specifications

General

Type	Modular
Mounting	Wall
Enclosure	NEMA 3R
Communication	Ethernet
Water Management	Master Valve
Compatibility	Toro
Stations	Up to 48
Power Supply	Included
