Toro Sentinel User Manual

30

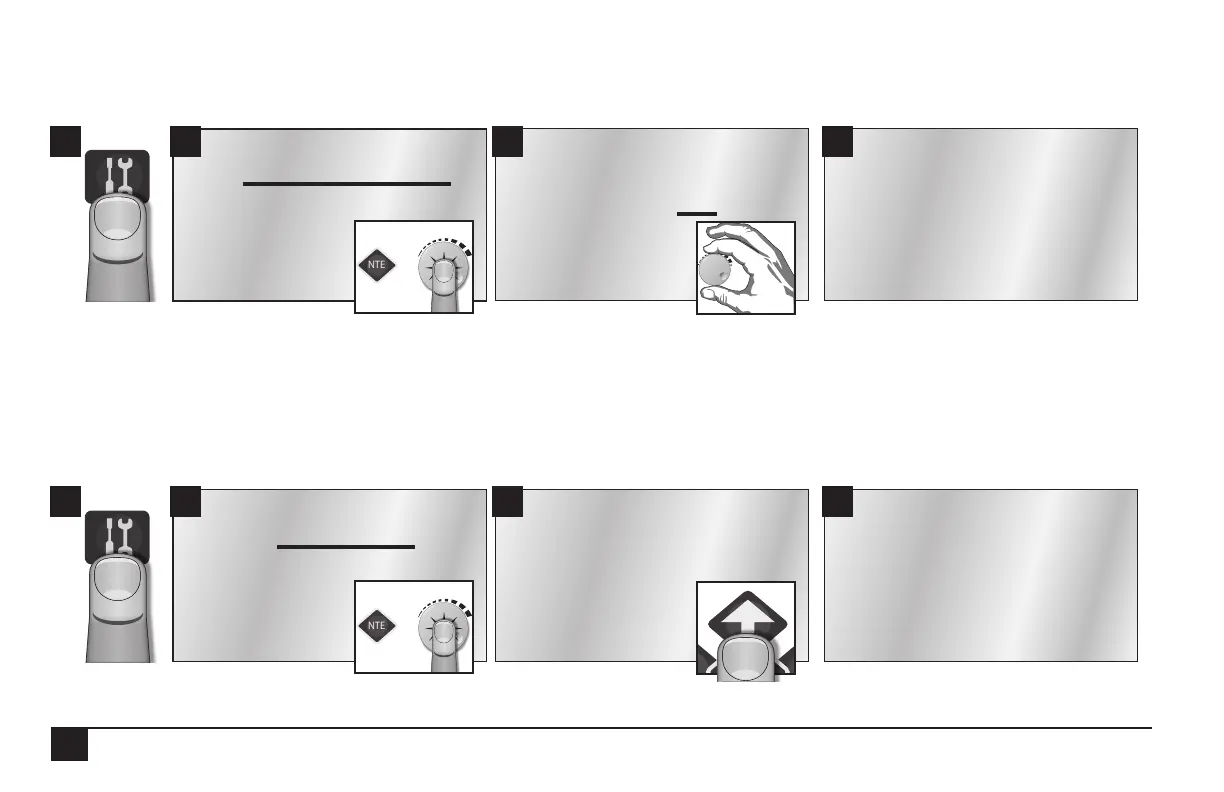

Local Output Test
Requires a light board to check outputs. Quickly strobes through the rst 48 outputs one at a time. Applies only if controller is equipped with
local outputs (connectors for one or more of 1-12,13-24, 25-36, 37-48).
Keypad Test
Test routine prompts the operator to press keys and operate the Control Knob. This test also ashes the LED’s on the keypad one at a time
to check LED’s.
2 3 41
ENTER
- OR -
Local Output Test
02/02 100% SUCCESS
Cancel Test ? YES
DIAGNOSTICS & ALARMS
Local Output Test
Local Output Test
PASSED
2 3 41
ENTER
- OR -
ENTER
Keypad Test
Key Test:
UP ARROW
DIAGNOSTICS & ALARMS
Keypad Test
Keypad Test
PASSED

Toro Sentinel Specifications

General

Type	Modular
Mounting	Wall
Enclosure	NEMA 3R
Communication	Ethernet
Water Management	Master Valve
Compatibility	Toro
Stations	Up to 48
Power Supply	Included
