UHF Radio Test (cont’d)

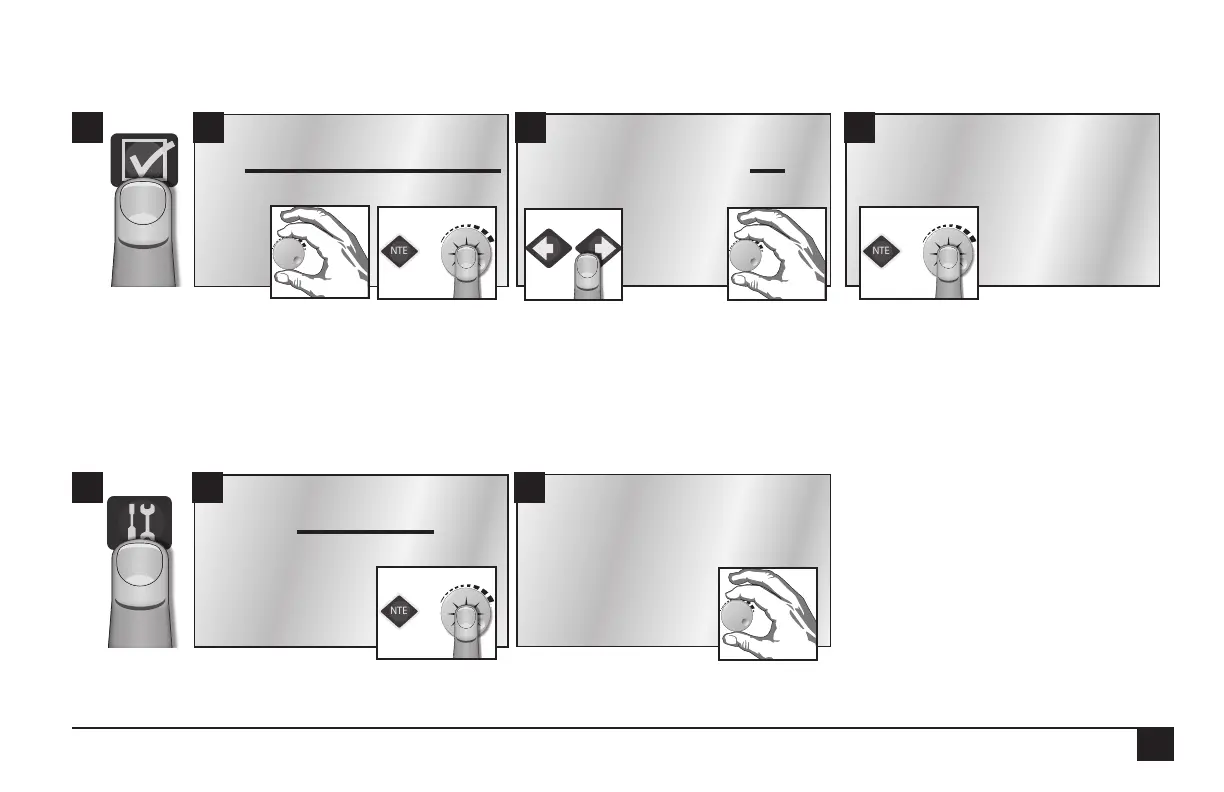

Set the unit code by pressing the Option button, navigate to Radio Test Relay Code, and set with the knob and arrow keys.
Output Test
Strobes through all outputs 1 to Max Stations. This test can take a full minute to complete. Turns on the output according to the Station Type
that it is (can test wireless, Toro 2-wire, Baseline 2-wire, or local outputs).
2 3 41
ENTER
- OR -
ENTER
- OR -
Option
Radio Test Relay Code
CODE = 360
OPTION
Radio Test Relay Code
** SAVED! **
CODE = 360
2 31
ENTER
- OR -
Output Test
Did Test Pass?
YES
DIAGNOSTICS & ALARMS
Output Test

Toro Sentinel Specifications

General

Type	Modular
Mounting	Wall
Enclosure	NEMA 3R
Communication	Ethernet
Water Management	Master Valve
Compatibility	Toro
Stations	Up to 48
Power Supply	Included
