Toro Sentinel User Manual

3
Controls

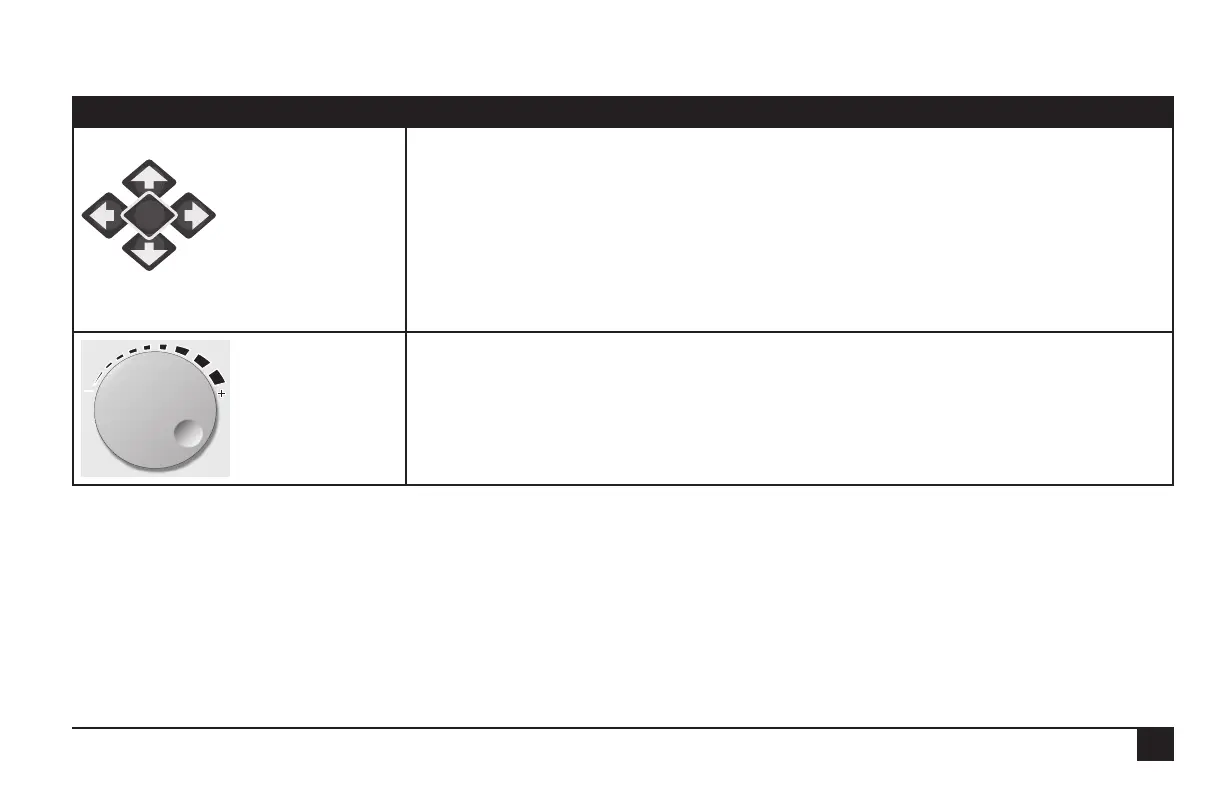

There is one Control Knob and fteen (15) buttons to operate the Sentinel Controller.
Control Function
ENTER
Arrows and EN-
TER
LEFT / RIGHT Arrows:
1) Move through the different menus on the controller
2) Within a menu line, move through the changeable elds.
UP / DOWN Arrows:
1) Navigate through menu items
2) Navigate from one submenu line to another.
Note: Holding down an arrow button auto-repeats.
ENTER:
Press to enter a selected menu or to save a setting.
Control Knob
Rotate the Knob to change the value of the eld the cursor is on. Pressing the knob in is the
same functionality as the ENTER key.

Toro Sentinel Specifications

General

Type	Modular
Mounting	Wall
Enclosure	NEMA 3R
Communication	Ethernet
Water Management	Master Valve
Compatibility	Toro
Stations	Up to 48
Power Supply	Included
