Toro Sentinel User Manual

42
BL Decoder Assign (SBDB models)
It is possible to program Baseline decoder port addresses for each decoder using the Programmer port. Reprogramming decoder addresses
might be necessary if the decoders are not addressed sequentially or if decoder addresses are unknown (for example, the decoder address
label has fallen off).
Prog Toro AC Decoder (SBA models)
It is possible to program AC decoder port addresses for each
station, ow, and moisture AC decoder using the Programmer port.
Reprogramming decoder addresses might be necessary if the decoders
are not addressed sequentially or if decoder addresses are unknown (for
example, the decoder address label has fallen off). Addresses only need
to be programmed sequentially for multi-station decoders.

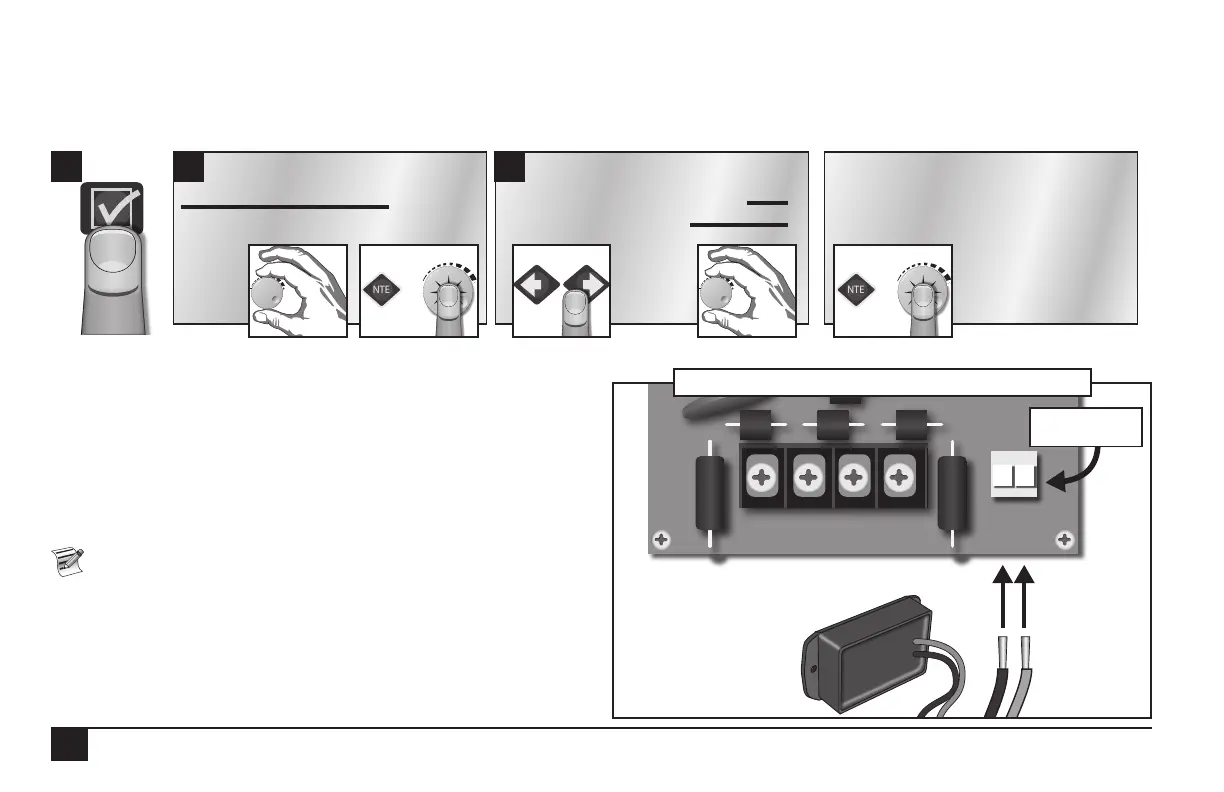

The decoder must be physically connected to the controller’s
output board to reprogram the address. To connect the decoder
to the output, see illustration right.
Option
OPTION
BL Decoder Assign
BL Decoder Assign
STATION # 001
SERIAL # 0000013
** SAVED! **
STATION # 001
SERIAL # 0000013
ENTER
- OR -
1 2 3
ENTER
- OR -
BLK BLKRED RED
RED BLACK
BLK BLKRED RED
RED BLACK
Programming
port
Connecting AC Decoder to Programming Port

Toro Sentinel Specifications

General

Type	Modular
Mounting	Wall
Enclosure	NEMA 3R
Communication	Ethernet
Water Management	Master Valve
Compatibility	Toro
Stations	Up to 48
Power Supply	Included
