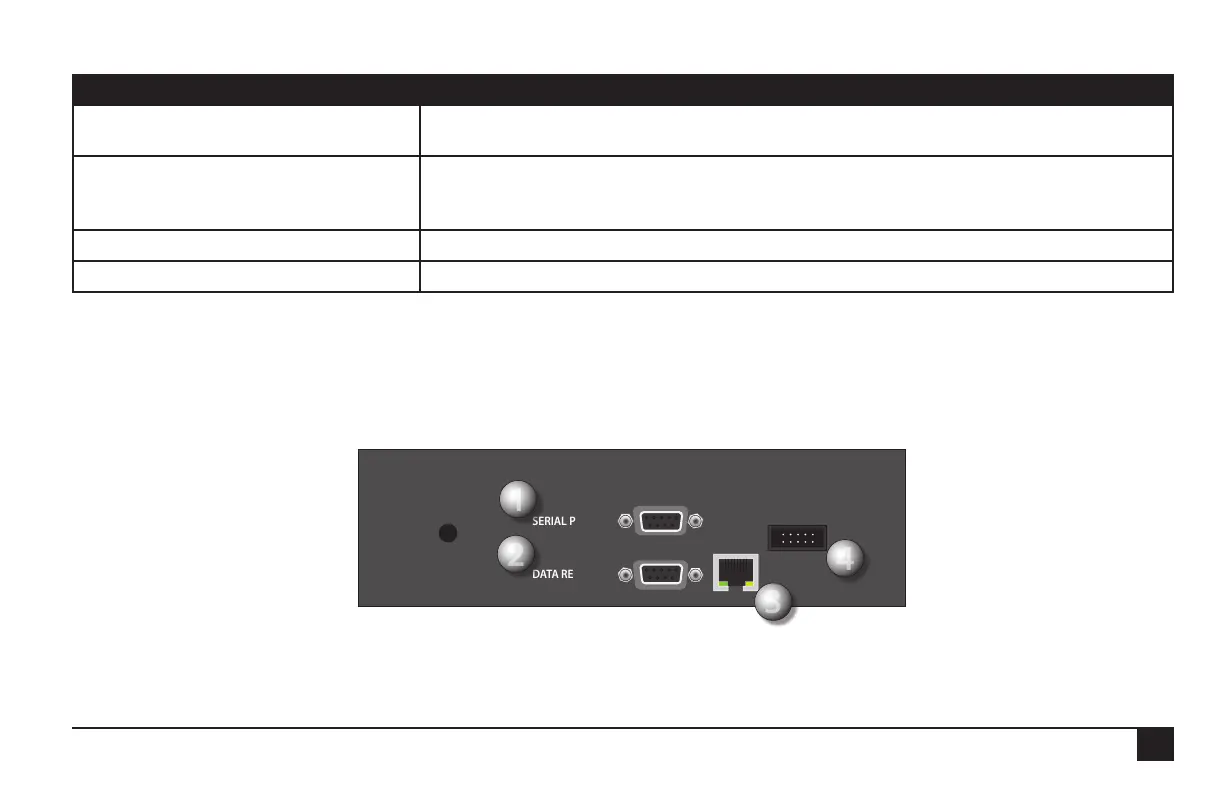

Ports
Top Ports Purpose
1. Serial Port 0 (9-pin connector) Both top and bottom serial ports support communications devices, standard off-the-shelf se-
rial cables, and are optically isolated.
2. Data Retrieval port (9-pin connector) Works with existing Sentinel data retrieval cables and ow/ET/Rain pulse simulator devices.
New cables will allow access to 1 additional ow and 1 additional alarm input. Both ow
inputs support mixed mode use with ow, ET or Rain pulse devices.
3. Network RJ-45 port (option) To connect to a network.
4. (10-pin connector) UHF radio connection
SERIAL PORT
DATA RETRIEVAL
2
2
1
1
3
3
4
4

Toro Sentinel Specifications

General

Type	Modular
Mounting	Wall
Enclosure	NEMA 3R
Communication	Ethernet
Water Management	Master Valve
Compatibility	Toro
Stations	Up to 48
Power Supply	Included
