Toshiba B-EX6T3 TS User Manual

2. PRINTER SETUP ENGLISH VERSION
2.3 Loading Supplies
E2-6
2.3.1 Loading the Media
(Cont.)

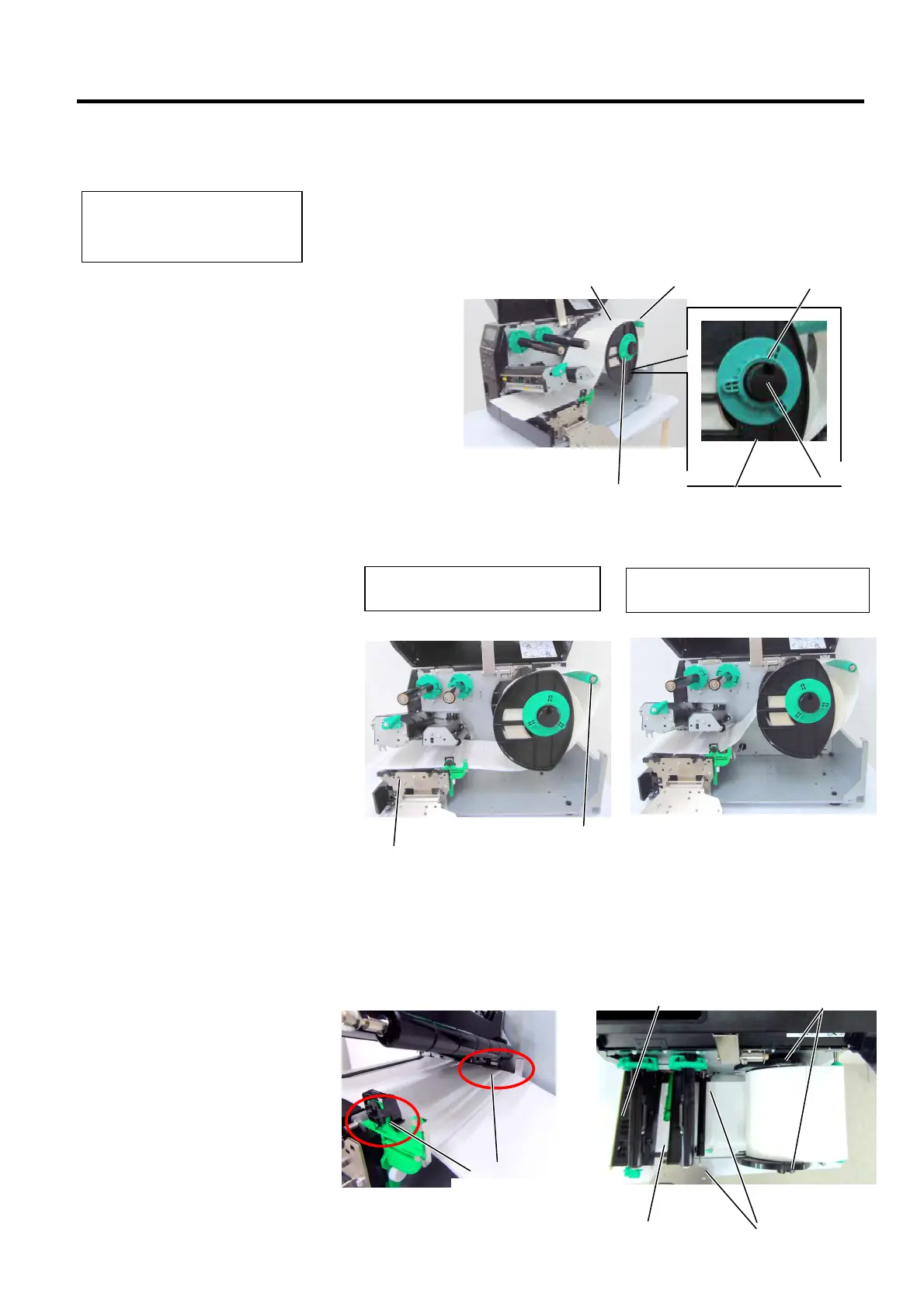

7. Align the tab of the Supply Holder with the groove in the Supply
Shaft, and push the Supply Holder against the media until the media
is held firmly in place. This will center the media automatically.
Turn the Locking Ring clockwise to secure the Supply Holder.
8. Place the media between the Media Guides and adjust them to the
media width. Once in the correct position tighten the Locking Screw.
9. Check that the media’s path through the printer is straight. The
media should be centered under the Print Head.
NOTE:
Do not over-tighten the Locking
Ring of the Supply Holder.
Supply Holder
Media Guide
Print Head
Paper guide
holder
Media
Guide Shaft
Media
In
the
case of
media which is
inside wound.
In
the
case of
media which is
outside wound.
Tab
Locking Ring
Supply Holder
Guide Shaft
Groove
Supply Shaft
