5.3 Removing Jammed
Media
This section describes, in detail, how to remove jammed media from the
printer.
1. Open the Top Cover.
2. Turn the Head Lever to FREE position, then open the Print Head
Block Holder Plate.
3. Open the Print Head Block.
4. Remove the ribbon and media.
5. Remove the jammed media from the printer. DO NOT use any sharp
implements or tools as these could damage the printer.
6. Clean the Print Head and Platen, then remove any further dust or
foreign substances.
7. Paper jams in the Cutter Unit can be caused by wear or residual glue
from label stock on the cutter. Do not use non-specified media in the
cutter.
CAUTION!
W
hen removing the jammed media, be careful not to damage the
print head with hard objects like watches or rings.
Since the print head element can be easily damaged by shock, please
treat it carefully and do not hit it with hard objects.
CAUTION!
Do not use any tool that may
damage the Print Head.
NOTE:
If you get frequent jams in the
cutter, contact a TOSHIBA TEC
authorized service
representative.
Care must be taken not to allow
the metal or glass part of a watch
to touch the print head.
Care must be taken not to allow a
metal object like a ring to touch
the print head.

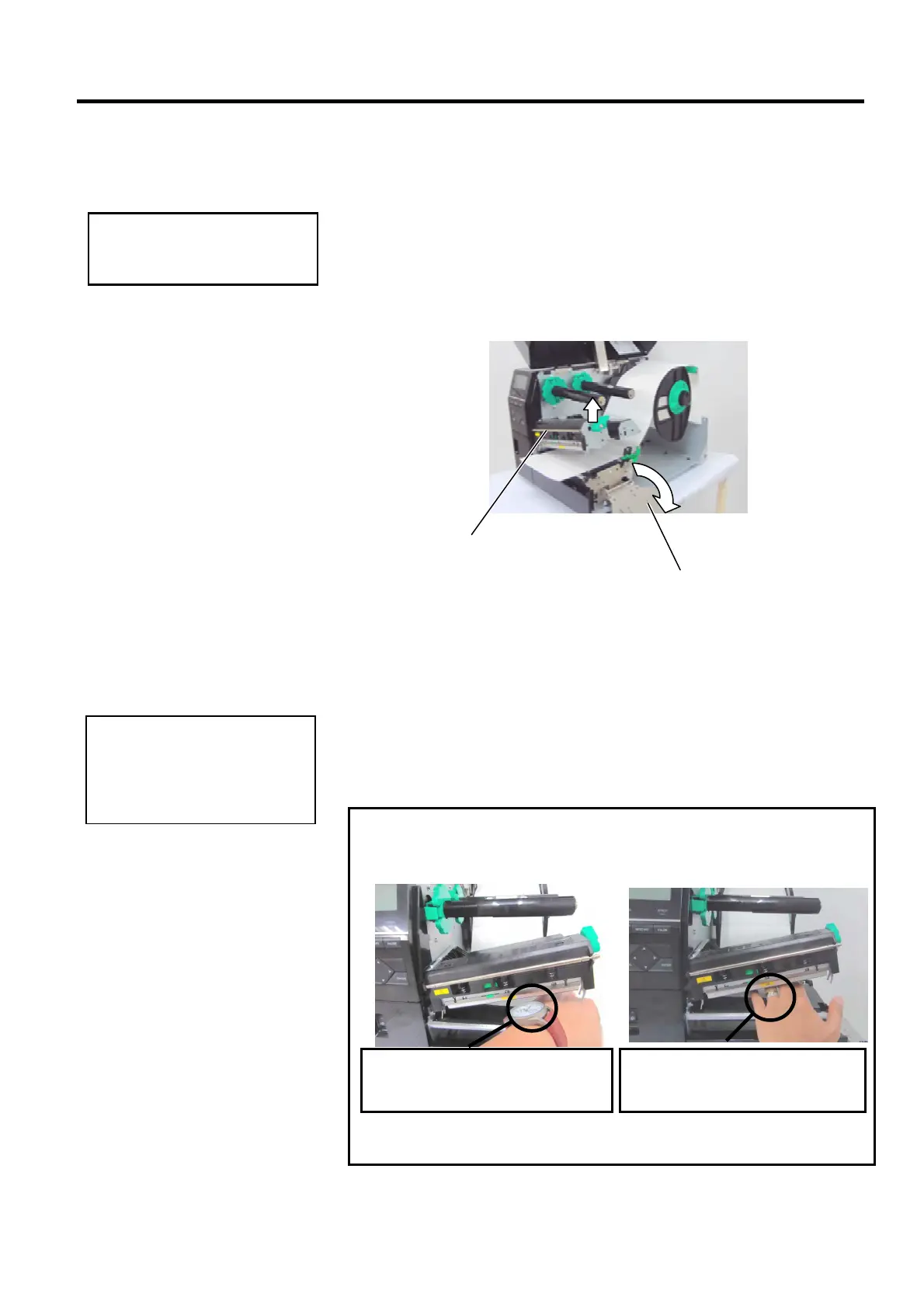

Print Head Block
Print Head Block Holder Plate
