7. SUPPLY SPECIFICATIONS ENGLISH VERSION
7.1 Media
E7-5

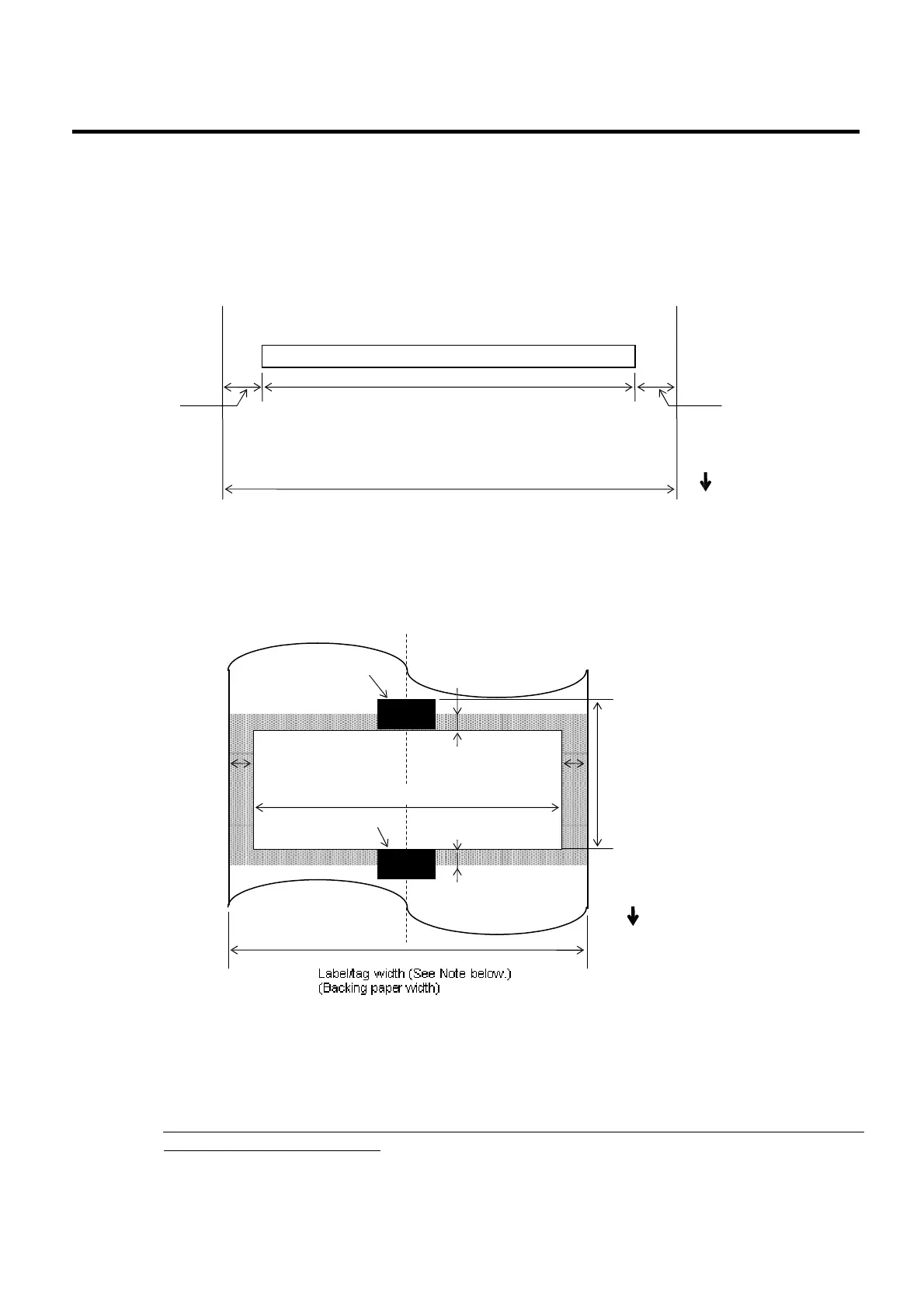

7.1.4 EFFECTIVE PRINT AREA OF PAPER
7.1.4.1 Relationship between Print Head Effective Print Width and Paper Width
Paper
p
osition
(Left)
Paper
position
(Right)
Printing
area
Outside
printing
area
5 mm
160.0mm±0.2mm (203DPI)
159.9mm±0.2mm (305DPI)
(Effective print head
width)
5 mm
Outside
p
rinting
area
Feed
direction
170.0mm
(Max. paper
width)
7.1.4.2 Effective Print Area of Tags and Labels
Detection
area
1 mm
1.5 mm from left
edge of paper
1.5 mm from right
edge of paper
Guaranteed printing area
10 mm to 1500 mm
Label/tag length
Detection
area
1 mm
Feed
direction
NOTES:
1
. Print quality in the shaded area is not guaranteed. For the label, printing in the 1-mm width area
around the label is not guaranteed as well as the shaded area shown above.
2. The center of the paper (label and tag) is almost aligned with the center of the print head.
3. If printing is performed in the shaded area, the ribbon may wrinkle. This may affect the print quality
of the guaranteed printing area.
