2. PRINTER SETUP ENGLISH VERSION
2.4 Connecting the Cables to Your Printer
E2-12
2.4 Connecting the Cables
to Your Printer
The following paragraphs outline how to connect the cables from the
printer to your host computer, and will also show how to make cable
connections to other devices. Depending on the application software
you use to print labels, there are 5 ways to connect the printer to your
host computer. These are:
• An Ethernet connection using the printer’s standard LAN connector.
• A USB cable connection between the printer’s standard USB connector
and your host computer’s USB port. (Conforming to USB 2.0)
• A serial cable connection between the printer’s optional RS-232 serial
connector and one of your host computer’s COM ports.
• A parallel cable connection between the printer’s optional parallel
connector and your host computer’s parallel port (LPT).
• Wireless LAN using an optional Wireless LAN board.
For details, refer to APPENDIX 2.

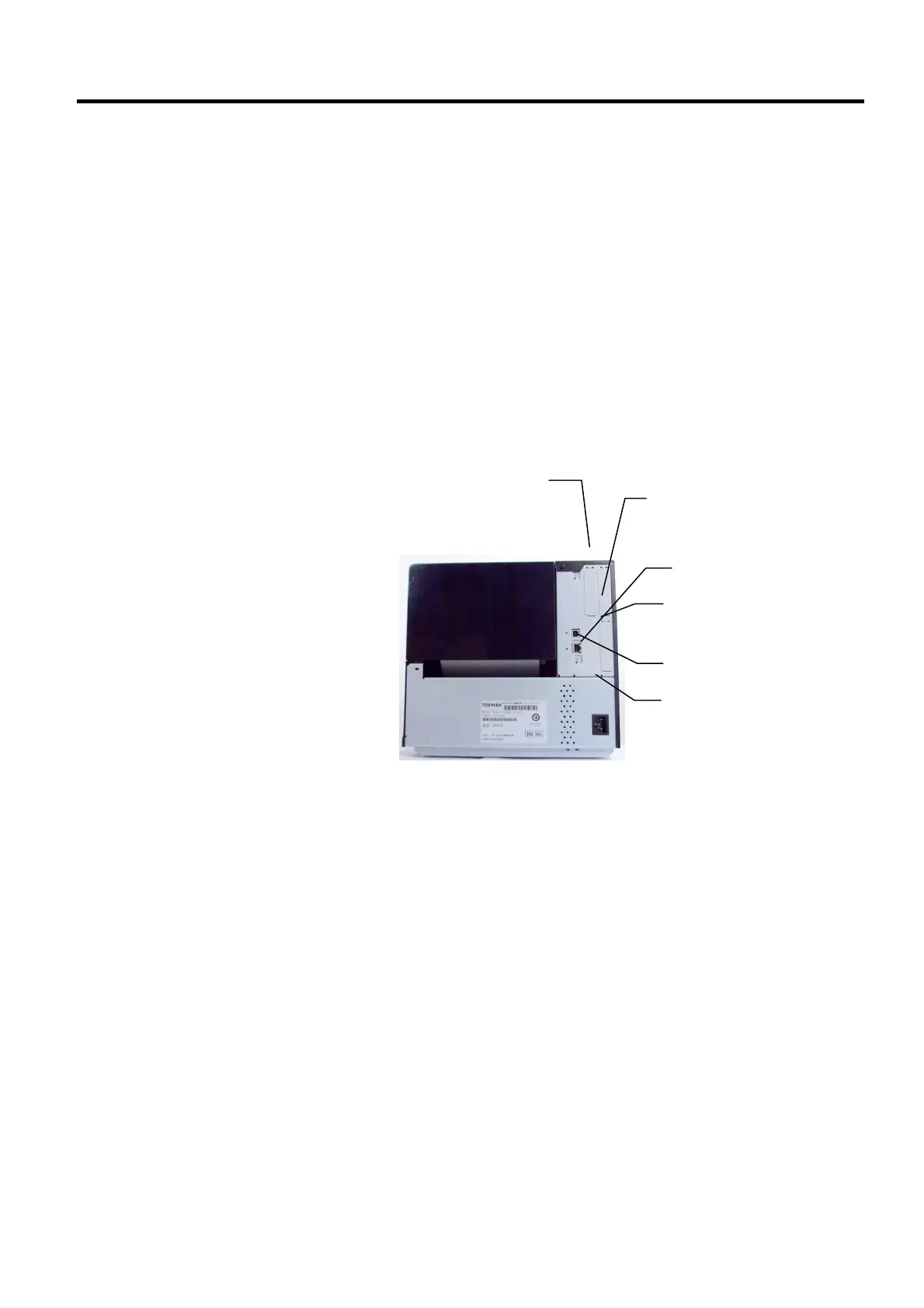

Reserved for
Parallel
Interface
For GS/TS12 and GS/TS18 models,
reserved for Serial Interface.
For GS/TS16 models, WLAN
Interface
Reserved for
Expansion I/O Interface
LAN Interface
AC Power Inlet
To Next Page
