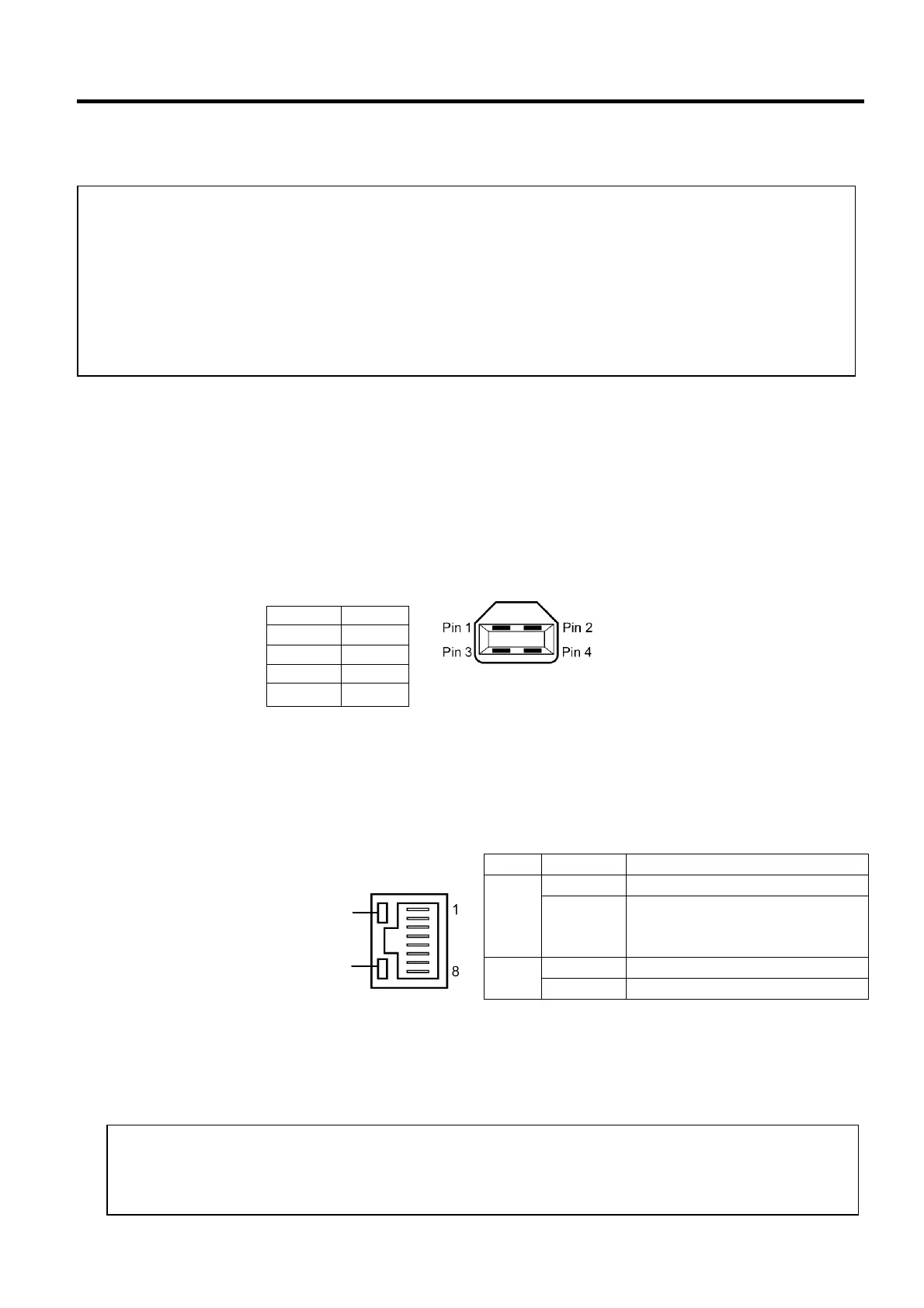

APPENDIX 2 INTERFACE ENGLISH VERSION
APPENDIX 2 INTERFACE
EA2- 1
APPENDIX 2 INTERFACE
U
SB interface (Standard)
Physical Layer: Conforming to V2.0 Full speed
T
ransfer type: Control transfer, Bulk transfer
Transfer rate: Full speed (12M bps)
Class: Printer class
Number of ports: 1
Power source: Self power
Connector: Type B
Pin No.
Signal
1 VCC
2 D-
3 D+
4 GND
LAN (Standard)
Physical Layer: IEEE802.3 10BASE-T/100BASE-TX
Number of ports: 1
Connector: RJ-45
LED status: Link LED, Activity LED
LAN cable: 10BASE-T: UTP category 3 or category 5
100BASE-TX: UTP category 5
Cable length: Segment length Max. 100 m
NOTE:
To prevent radiation and reception of electrical noise, the interface cables must meet the following
requirements:
In case of a parallel interface cable or serial interface cable, fully shielded and fitted with metal or
metallised connector housings.
Keep as short as possible.
Should not be bundled tightly with power cords.
Should not be tied to power line conduits.
Series B Plug
NOTE:
When a generally-used twisted pair Ethernet (TPE) or UTP cable is used, communication errors may
occur subject to your operating environment. In such a case, please use a shielded twisted pair
cable.
Link
LED
Activity LED (
Orange)
LED LED Status LAN status
Link ON 10Mbps link or 100Mbps link is detected.
OFF No link is detected.
* Communication cannot be made while the
Link LED is off.
Activity
ON Communicating
OFF Idle
