REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 3
15.3 Description of Operation
15.3.1 Paper path
In scanning double-sided originals, an original is transported to the reverse paper path after the front
side has been scanned and it is switched back with the reverse roller so that it is reversed. After the
back side of the original has been scanned, it is transported to the exit paper path, switched back with
the exit intermediate roller, and it exits on the original exit tray so that the originals are aligned in the
order.

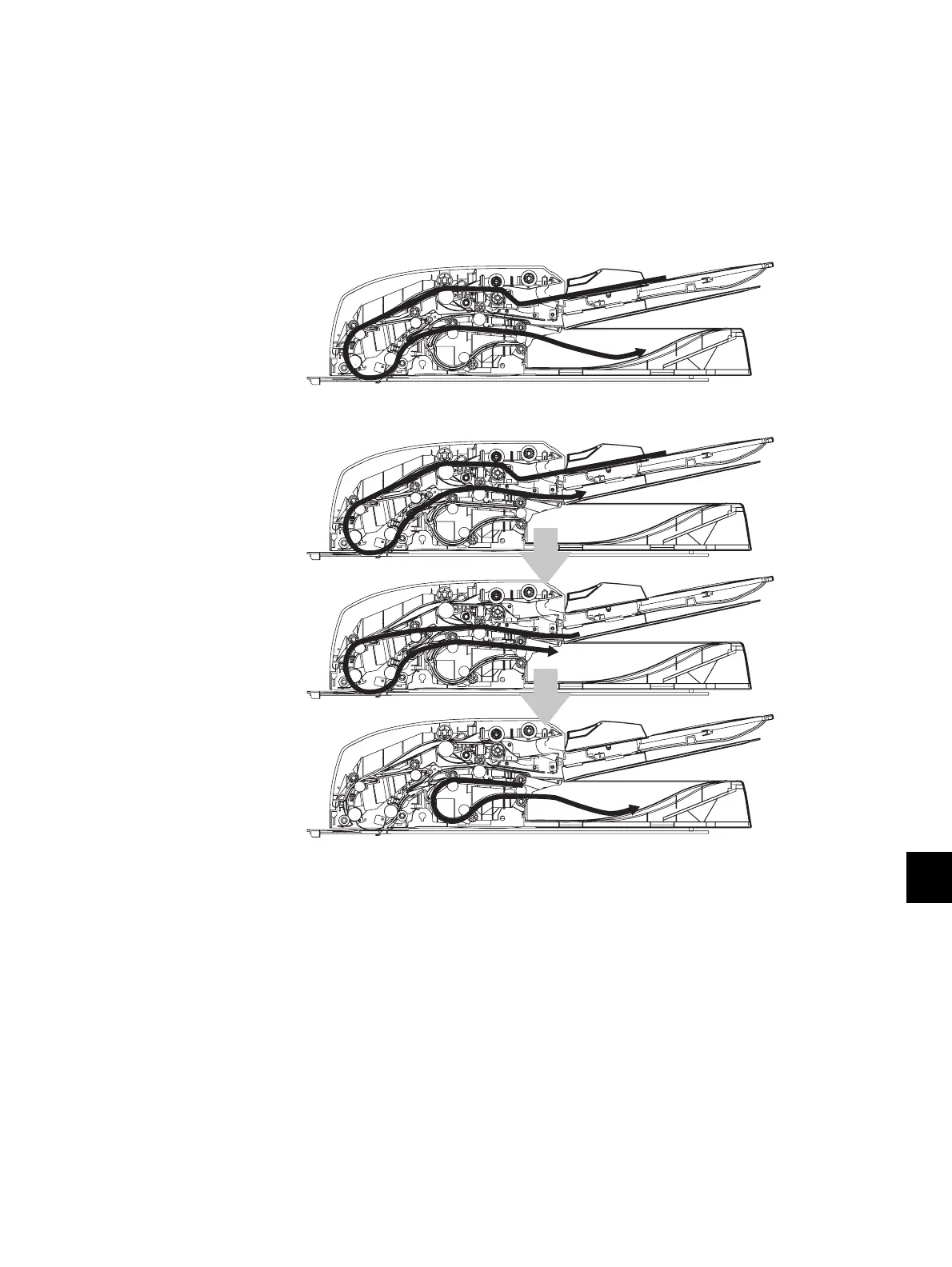

Fig. 15-2
1. Single-sided original
2. Double-sided original
