Toshiba e-studio555 - Original Registration Roller

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 28

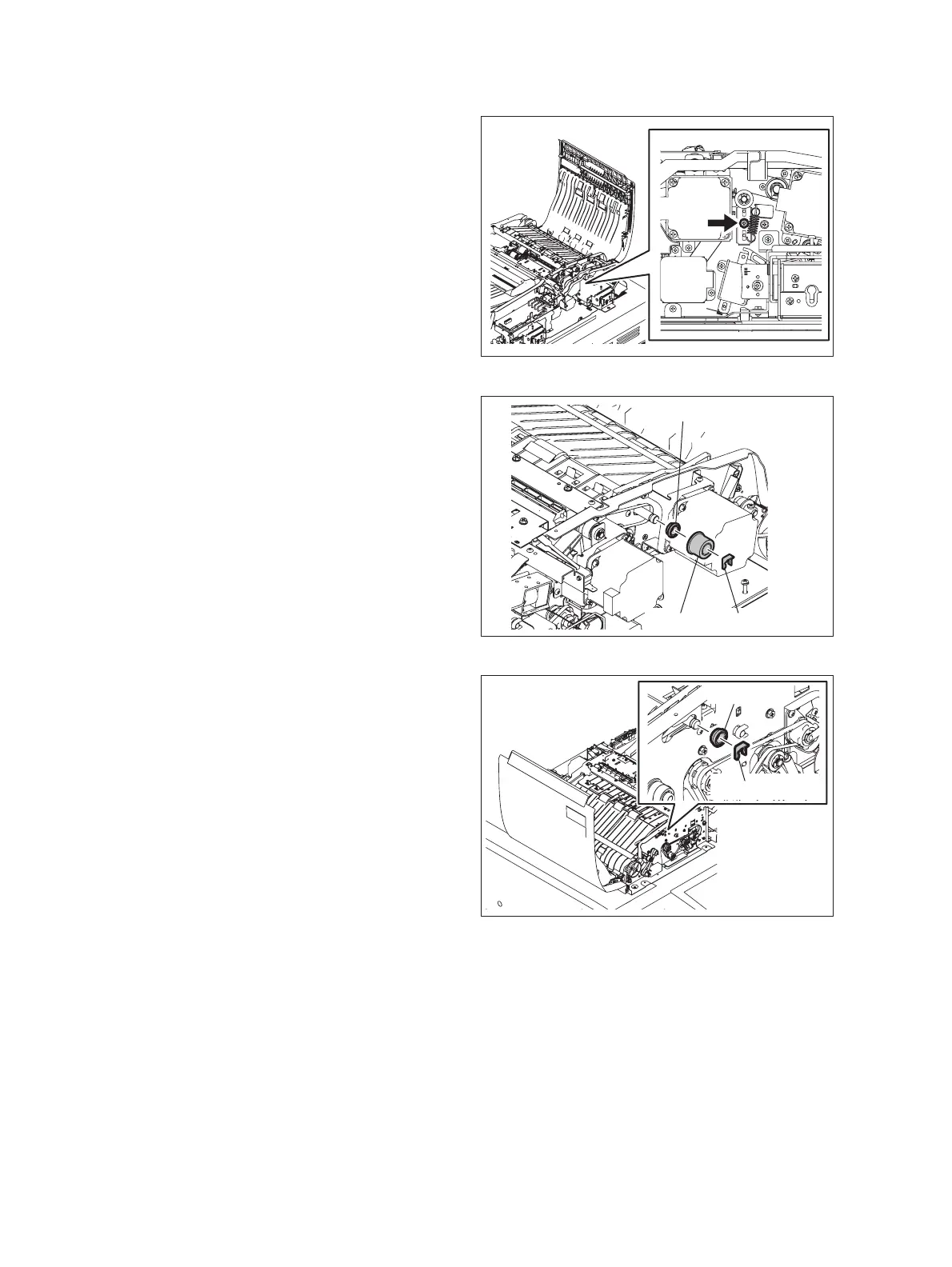

15.5.16 Original registration roller
(1) Take off the RADF front cover.
 P.15-15 "15.5.2 RADF front cover"
(2) Take off the RADF rear cover.
 P.15-16 "15.5.3 RADF rear cover"
(3) Loosen 1 screw.
Fig. 15-55
(4) Remove 1 clip, 1 pulley and 1 bushing.
Fig. 15-56
(5) Remove 1 clip and 1 bushing.
Fig. 15-57
Bushing
Pulley Clip
Clip
Bushing
