Toshiba e-studio555 - RADF Cooling Fan (FR1)

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 42

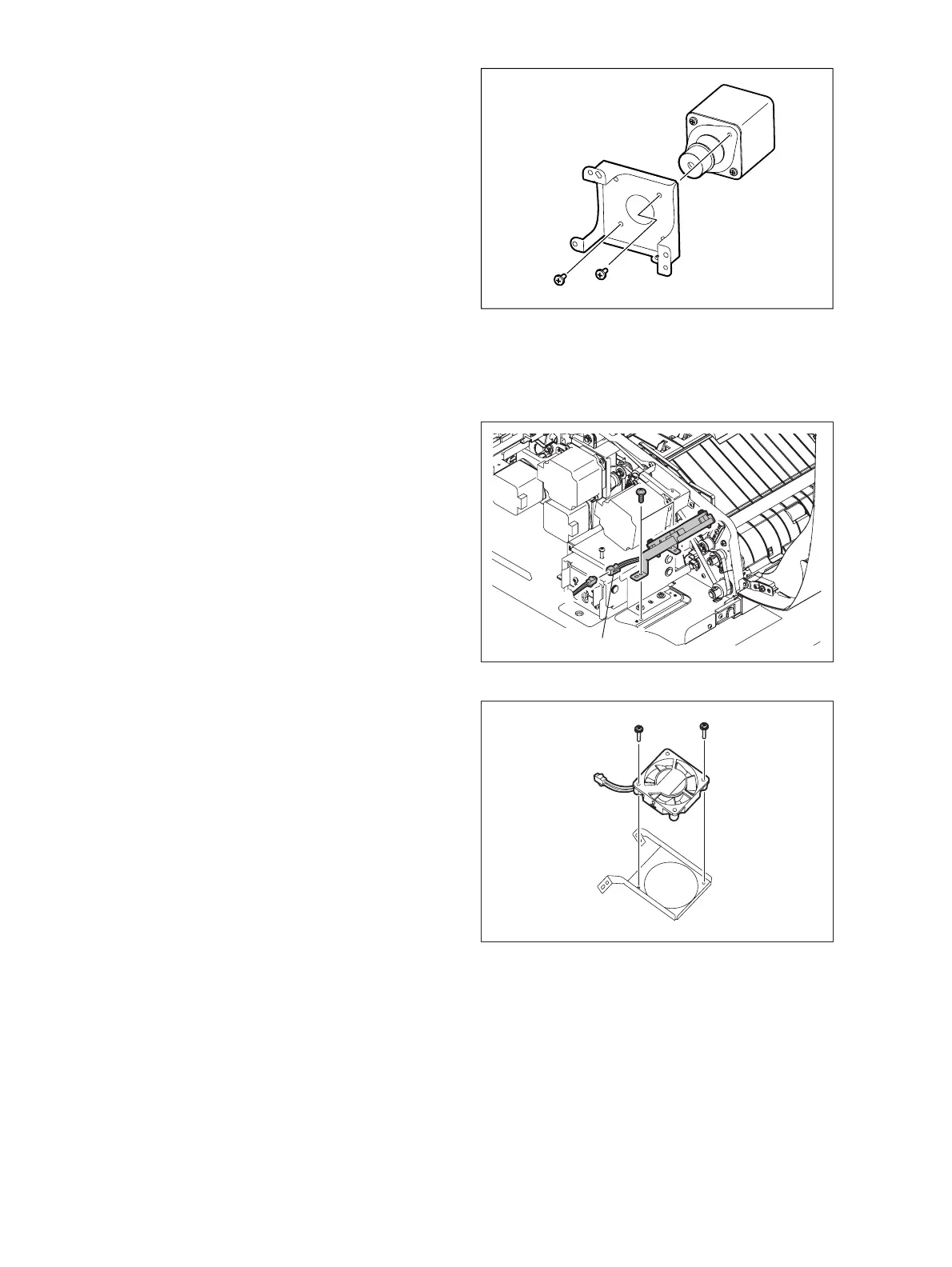

15.5.30 RADF cooling fan (FR1)
(4) Remove 2 screws and take off the bracket
from the original exit motor.
Fig. 15-96
(1) Take off the RADF rear cover.
 P.15-16 "15.5.3 RADF rear cover"
(2) Disconnect 1 connector.
(3) Remove 2 screws and take off the RADF
cooling fan with the bracket.
Fig. 15-97
(4) Remove 2 screws and take off the bracket
from the RADF cooling fan.
Fig. 15-98
Connector
