Toshiba TOSVERT VF-nC3 User Manual

E6581595
G-8
7

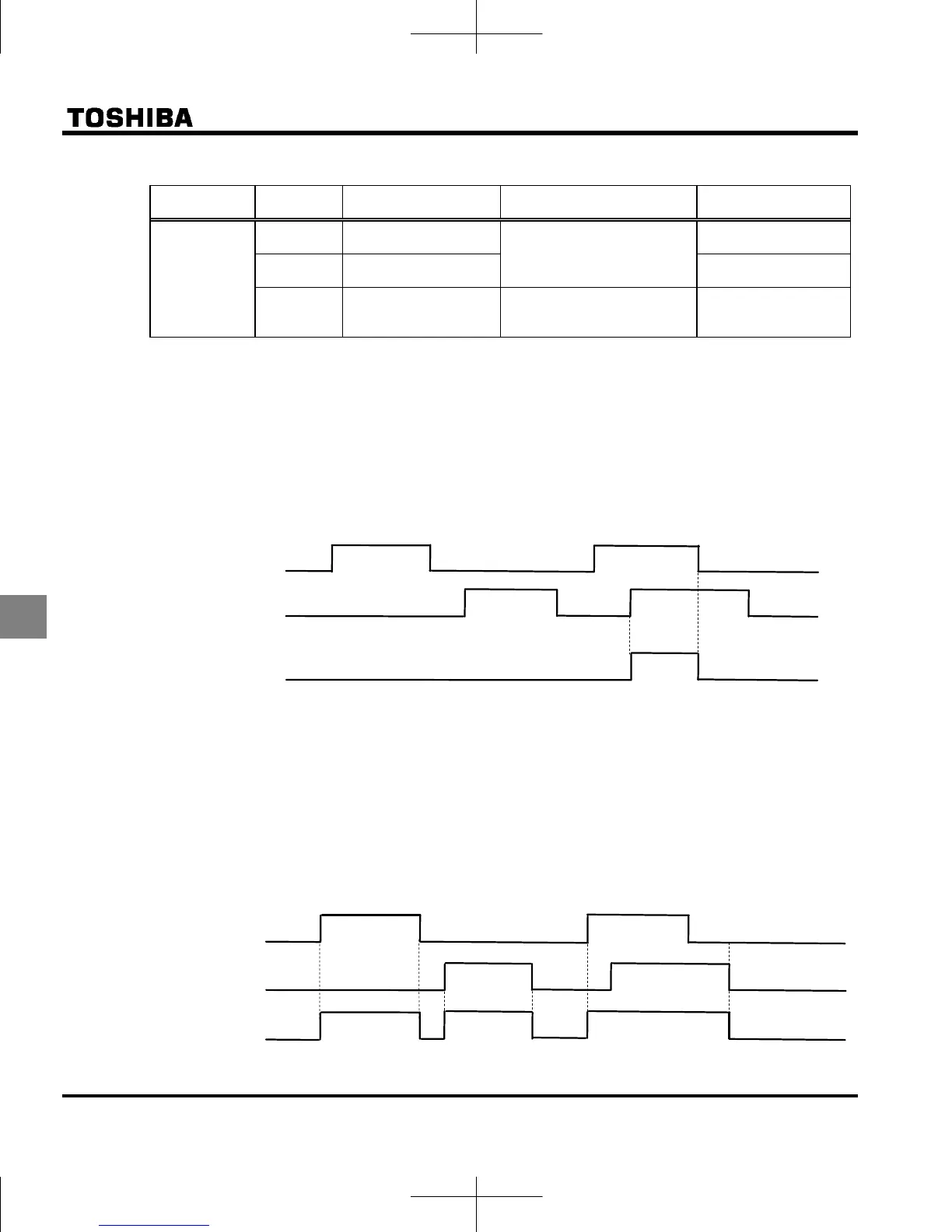

 Assign two types of functions to the output terminal (OUT)
Terminal
symbol
Title Function Adjustment range Default setting
OUT

Output terminal
selection 1A
0 - 255
4 (Low-speed detection
signal)

Output terminal
selection 1B
255 (Always ON)

Output terminal logic
selection
0:  and 
1:  or 
0
Note 3)  and  are active only when  = : Logic output (default). 
Function is inactive when  = : Pulse train output is set.
(1) Output signals when two types of functions are simultaneously
turned ON.
Signals are output when parameter  is the default ( = 0), and the functions set at
parameters  and  are simultaneously turned ON.
☆ Timing chart
(2) Output signals when either one of two types of functions are
simultaneously turned ON.
Signals are output when parameter  = 1, and either of the functions set at parameters 
and  are turned on.
☆ Timing chart
ON
OFF
ON
OFF
ON
OFF


OUT
Output
ON
OFF
ON
OFF
ON
OFF


OUT
Output

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
