Toshiba TOSVERT VF-nC3 User Manual

E6581595
G-7
7
7.2.2 Output terminal function (sink logic)
This function is used to output a variety of signals to external devices from the inverter.
With the logic output terminal function, you can select from multiple output terminal functions. Set two types of
functions for the OUT terminal and then you can output when either one or both of them is ON.

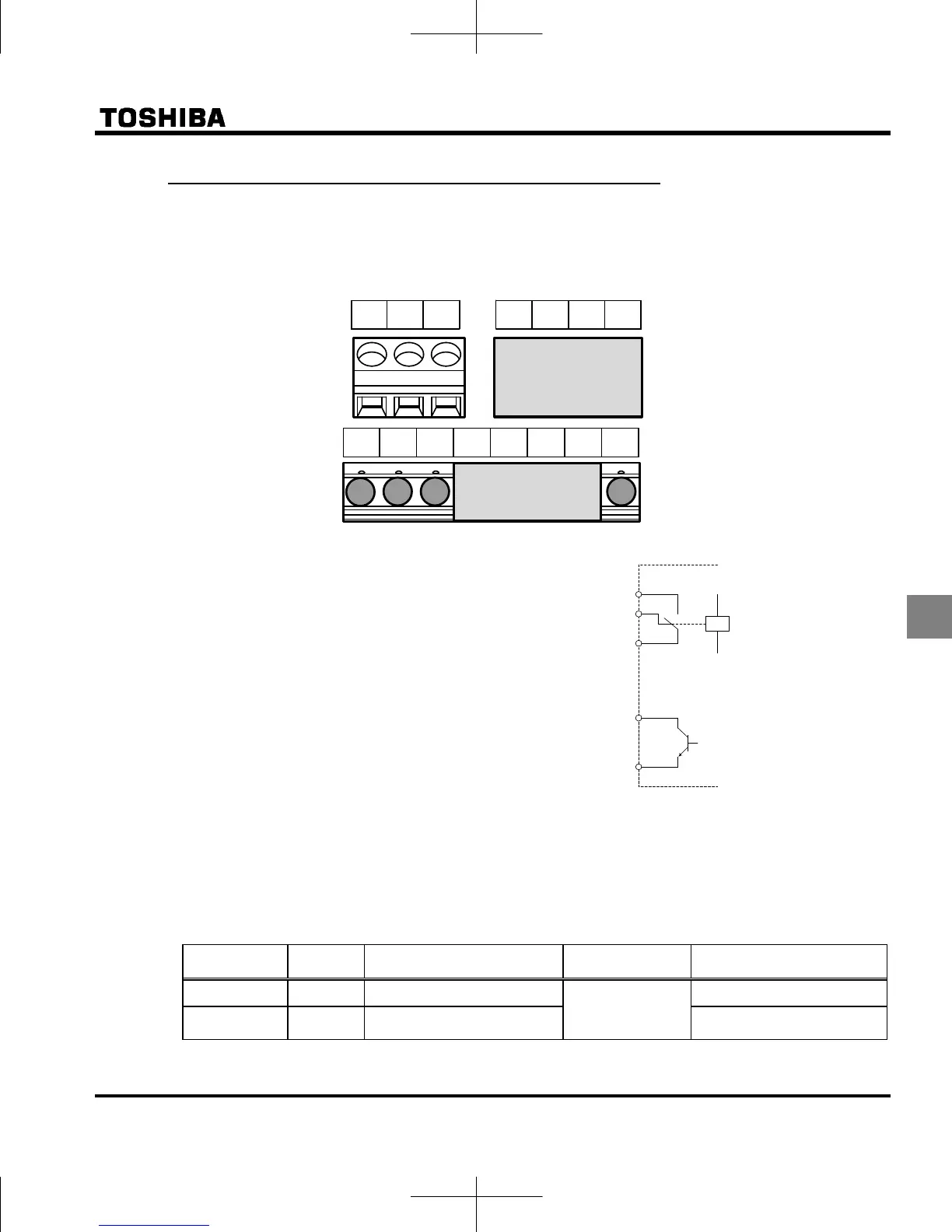

[Control terminal block]
OUT NO CC F R S1 S2 P24
FLA FLB FLC CC VI P5 FM
 Usage
Note 1) A chattering (momentary ON/OFF of contact) is generated by external factors of the vibration and the impact,
etc. In particular, please set the filter of 10ms or more, or timer for measures when connecting it directly with
input unit terminal of programmable controller. Please use the OUT terminal as much as possible when the
programmable controller is connected.
 Assign one type of function to an output terminal
Terminal
symbol
Title Function Adjustment range Default setting
OUT

Output terminal selection 1A
0 - 255
4 (Low-speed detection signal)
FL
(A, B, C)

Output terminal selection 2 10 (Fault signal (trip output))
Note 2) When assigning 1 type of function to the OUT terminal, set only .
Leave parameter  as the standard setting ( = ).
FLA
FLB
FLC
FL
OUT
NO
FLA, B, C function: Set at parameter



.
OUT function: Set at parameter



and 

.

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
