E6581595
C-11
3
Operation Command: External Signal
Frequency Command: Setting Dial

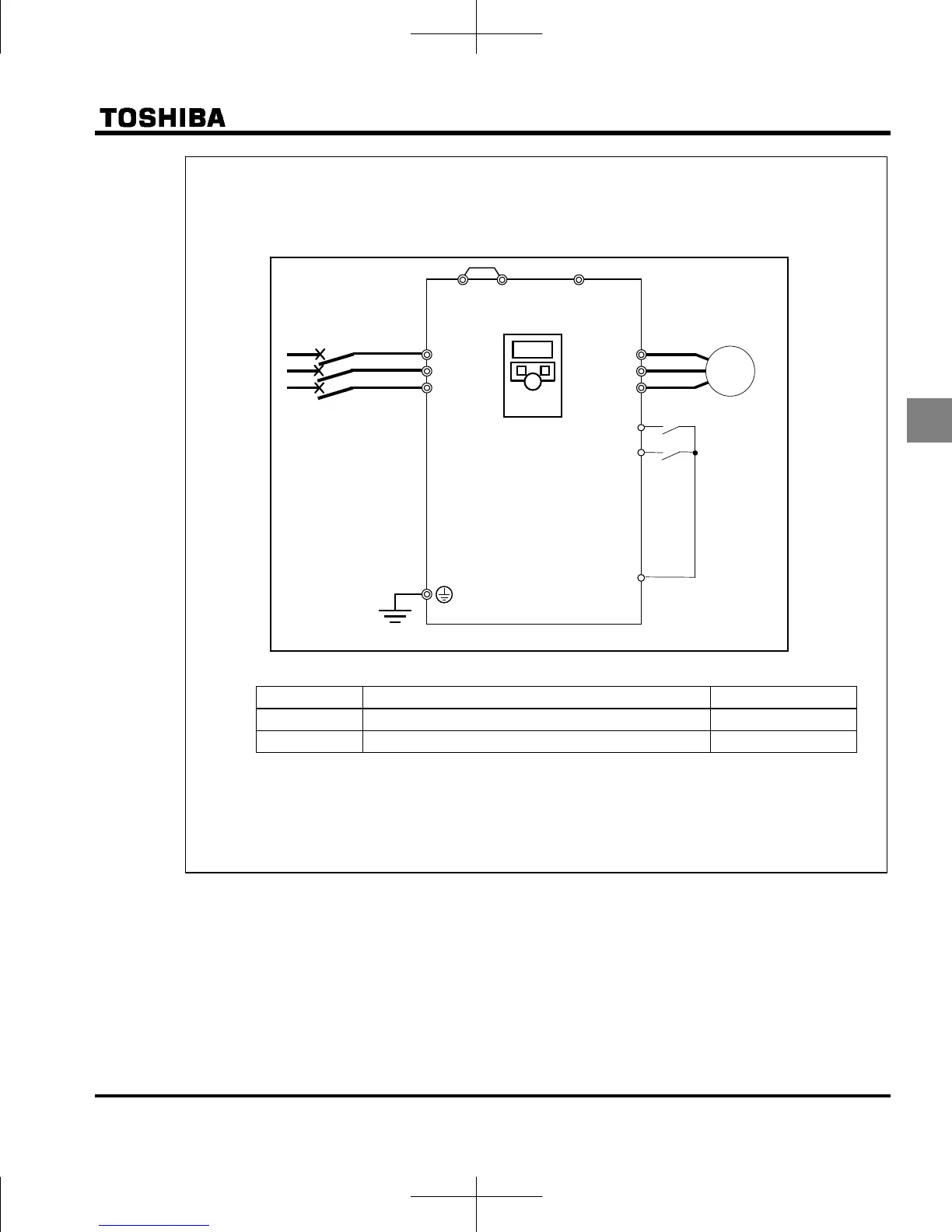

(1) Wiring
(2) Parameter setting
Title Function Programmed value
Command mode selection 0
Frequency setting mode selection 1 or 2
(3) Operation
Run/stop: ON/OFF input to F-CC, R-CC. (with sink logic)
Frequency setting: Turn the setting dial to set the frequency.
Motor
IM
F
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Forward
signal
R
CC
PO
PC/-
PA/+
Reverse
signal
Common
MCCB
Operation panel
Ex.3
