IP-Range Table
IP-Range ID Select: Click the Select button to quick-select the corresponding
IP-range ID based on the ID number you entered.
Select: Select the desired entry to delete or modify the corresponding
IP-range. It is multi-optional.
IP-Range ID: Displays IP-range ID.
Start Multicast IP: Displays start multicast IP of the IP-range.
End Multicast IP: Displays end multicast IP of the IP-range.
8.3.2 Port Filter
On this page you can configure the multicast filter rules for port. Take the configuration on this
page and the configuration on IP-Range page together to function to implement multicast filter
function on the switch.
Choose the menu Multicast→Multicast Filter→Port Filter to load the following page.

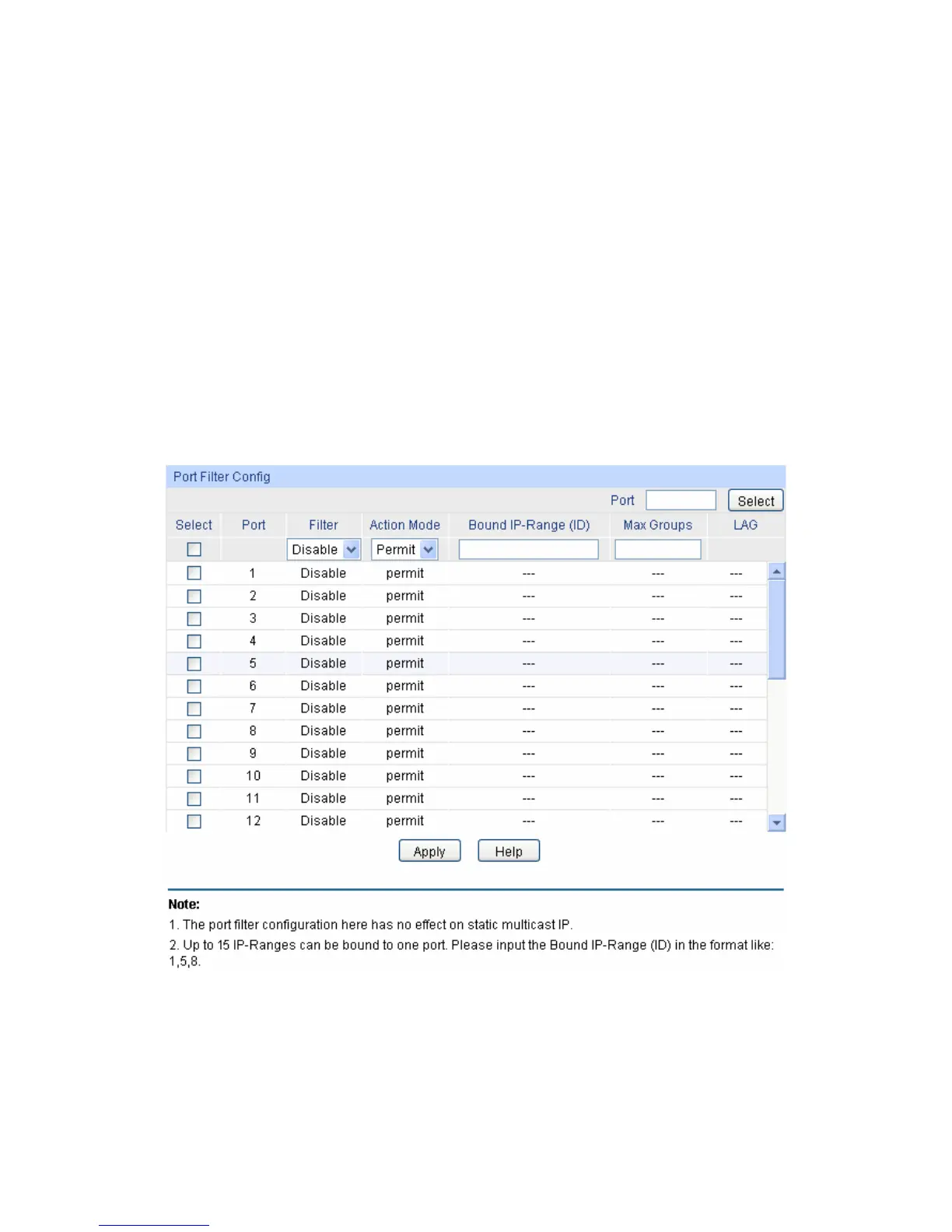

Figure 8-11 Port Filter
The following entries are displayed on this screen:
Port Filter Config
Port Select: Click the Select button to quick-select the corresponding port
based on the port number you entered.
