TP-Link TL-SG5412F User Manual

Chapter 10 ACL
ACL (Access Control List) is used to filter packets by configuring match rules and process policies
of packets in order to control the access of the illegal users to the network. Besides, ACL functions
to control traffic flows and save network resources. It provides a flexible and secured access
control policy and facilitates you to control the network security.
On this switch, ACLs classify packets based on a series of match conditions, which can be L2-L4
protocol key fields carried in the packets. A time-range based ACL enables you to implement ACL
control over packets by differentiating the time-ranges.
The ACL module is mainly for ACL configuration of the switch, including four submenus:
Time-Range, ACL Config, Policy Config and Policy Binding.
10.1 Time-Range
If a configured ACL is needed to be effective in a specified time-range, a time-range should be
firstly specified in the ACL. As the time-range based ACL takes effect only within the specified
time-range, data packets can be filtered by differentiating the time-ranges.
On this switch absolute time, week time and holiday can be configured. Configure an absolute time
section in the form of “the start date to the end date” to make ACLs effective; configure a week time
section to make ACLs effective on the fixed days of the week; configure a holiday section to make
ACLs effective on some special days. In each time-range, four time-slices can be configured.
The Time-Range configuration can be implemented on Time-Range Summary, Time-Range
Create and Holiday Config pages.
10.1.1 Time-Range Summary
On this page you can view the current time-ranges.
Choose the menu ACL→Time-Range→Time-Range Summary to load the following page.

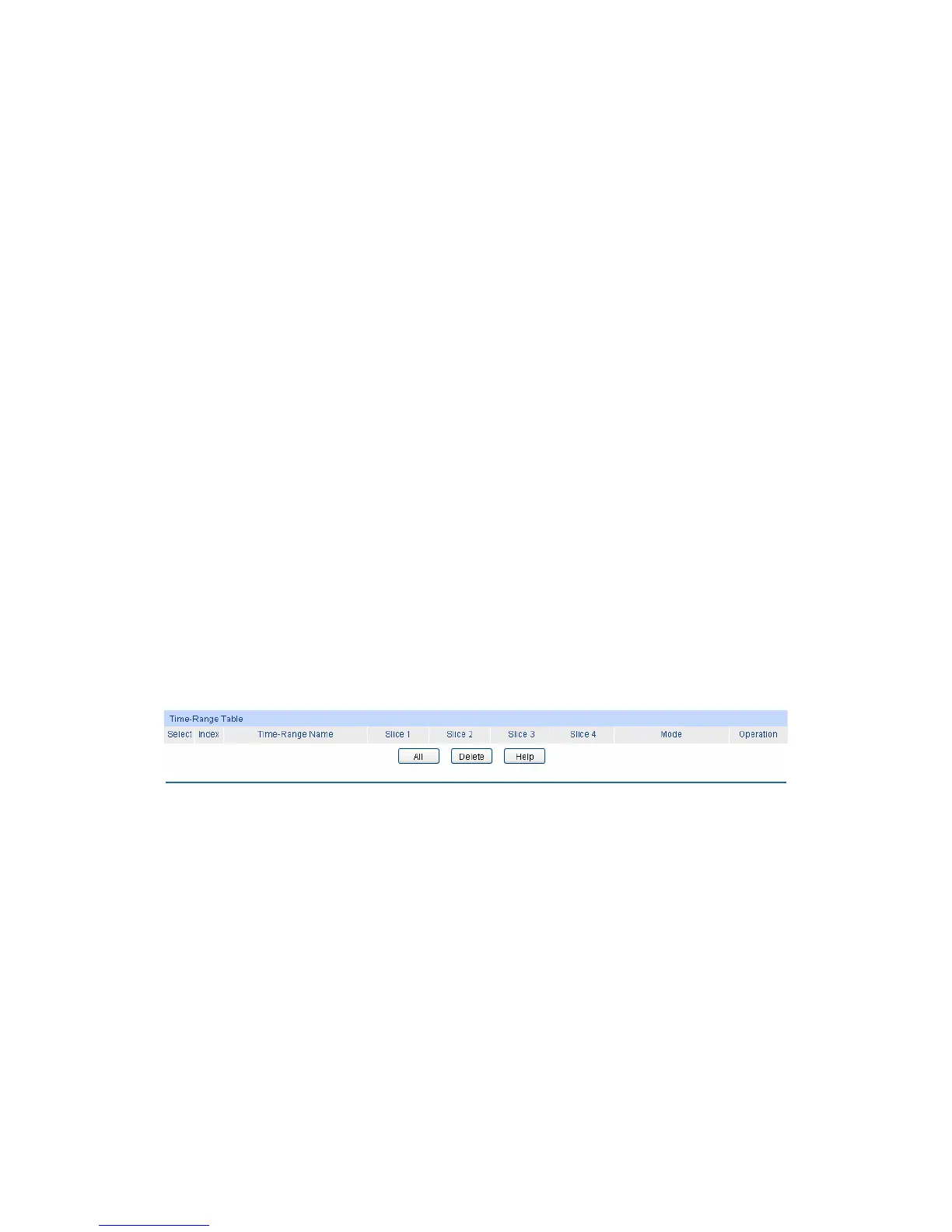

Figure 10-1 Time-Range Table
The following entries are displayed on this screen:
 Time-Range Table
Select: Select the desired entry to delete the corresponding time-range.
Index: Displays the index of the time-range.
Time-Range Name: Displays the name of the time-range.
Slice: Displays the time-slice of the time-range.
Mode: Displays the mode the time-range adopts.
Operation: Click the Edit button to modify the time-range. Click the Detail
button to display the complete information of this time–range.
131

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
