10.3 Policy Config
A Policy is used to control the data packets those match the corresponding ACL rules by
configuring ACLs and actions together for effect. The operations here include stream mirror,
stream condition, QoS remarking and redirect.
The Policy Config can be implemented on Policy Summary, Police Create and Action Create
pages.
10.3.1 Policy Summary
On this page, you can view the ACL and the corresponding operations in the policy.
Choose the menu ACL→Policy Config→Policy Summary to load the following page.

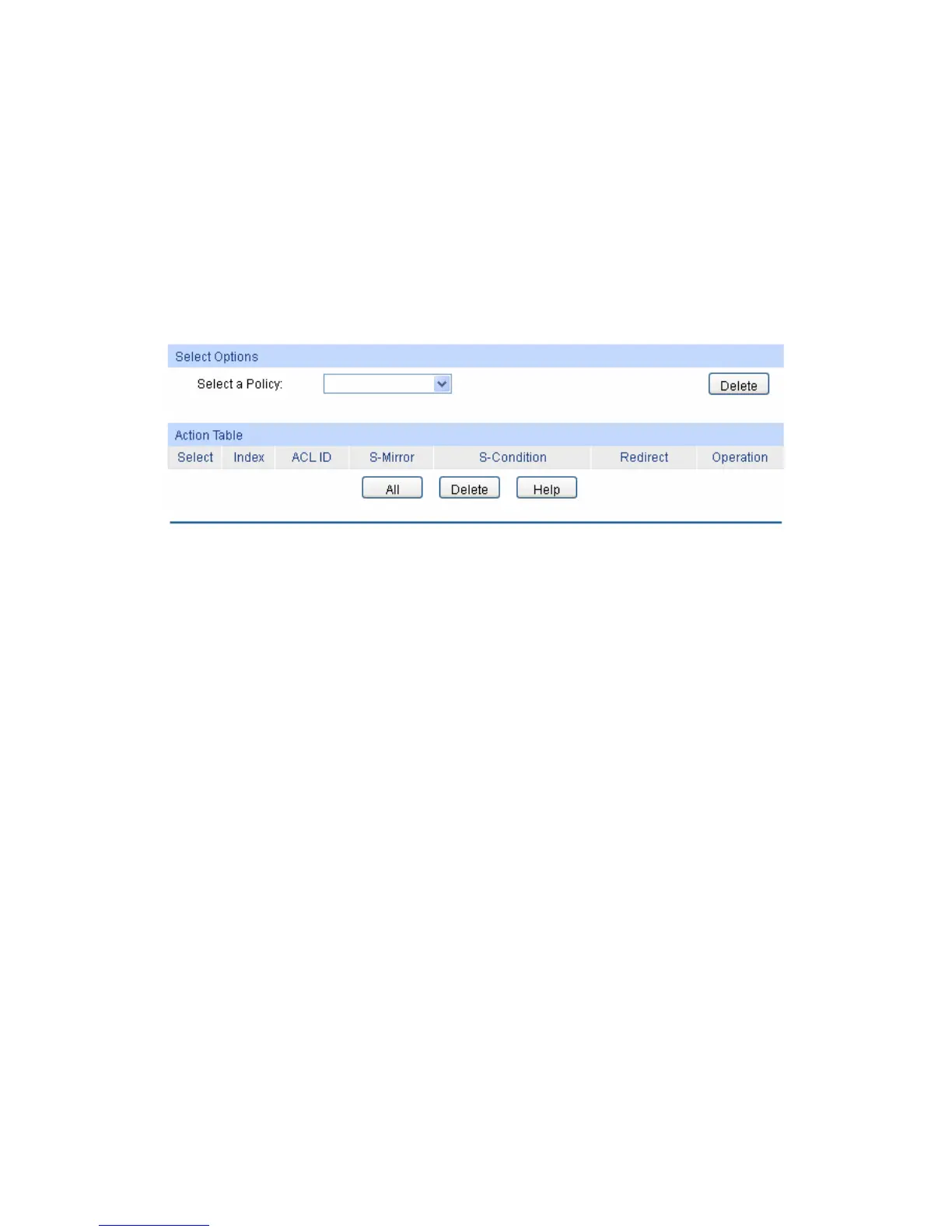

Figure 10-9 Policy Summary
The following entries are displayed on this screen:
Search Option
Select Policy: Select name of the desired policy for view. If you want to delete
the desired policy, please click the Delete button.
Action Table
Select: Select the desired entry to delete the corresponding policy.
Index: Enter the index of the policy.
ACL ID: Displays the ID of the ACL contained in the policy.
S-Mirror: Displays the source mirror port of the policy.
S-Condition: Displays the source condition added to the policy.
Redirect: Displays the redirect added to the policy.
Operation: Click the Edit button to modify the action.
10.3.2 Policy Create
On this page you can create the policy.
Choose the menu ACL→Policy Config→Policy Create to load the following page.
138
