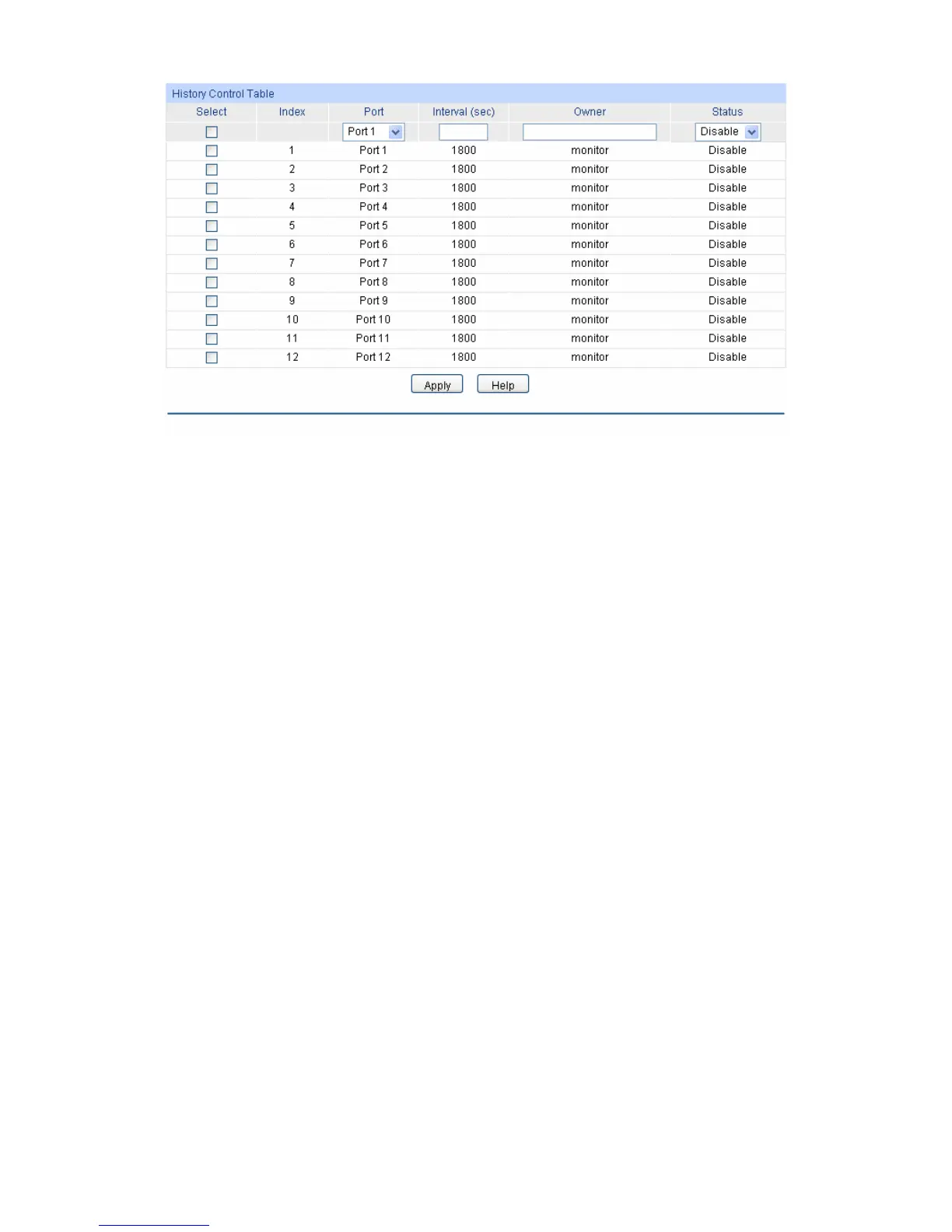

Figure 12-9 History Control
The following entries are displayed on this screen:
History Control Table
Select: Select the desired entry for configuration.
Index: Displays the index number of the entry.
Port: Specify the port from which the history samples were taken.
Interval: Specify the interval to take samplings from the port.
Owner: Enter the name of the device or user that defined the entry.
Status: Select Enable/Disable the corresponding sampling entry.
12.3.2 Event Config
On this page, you can configure the RMON events.
Choose the menu SNMP→RMON→Event Config to load the following page.
184
