TP-Link TL-SG5412F User Manual

 LEDs ( for TL-SG5412F)
Name Status Indication
On The Switch is powered on
PWR
Off/Flashing The Switch is powered off or power supply is abnormal
Flashing The Switch works properly
SYS
On/Off The Switch works improperly
On
A 1000Mbps device is linked to the corresponding port and there
is no activity
Green
Flashing
A 1000Mbps device is linked to the corresponding port and data
is being transmitted or received
On
A 10/100Mbps device is linked to the corresponding port and
there is no activity
10/100/1000Mbps
BASE-T
Yello w
Flashing
A 10/100Mbps device is linked to the corresponding port and
data is being transmitted or received
On A 1000Mbps device is linked to the corresponding port
1000Mbps
Off No device or a 10/100Mbps device is linked to the corresponding port
On
A 1000Mbps device is linked to the corresponding port but there
is no activity
Flashing
A 1000Mbps device is linked to the corresponding port and data
is being transmitted or received
Link/Act
Off No device or a 10/100Mbps device is linked to the corresponding port

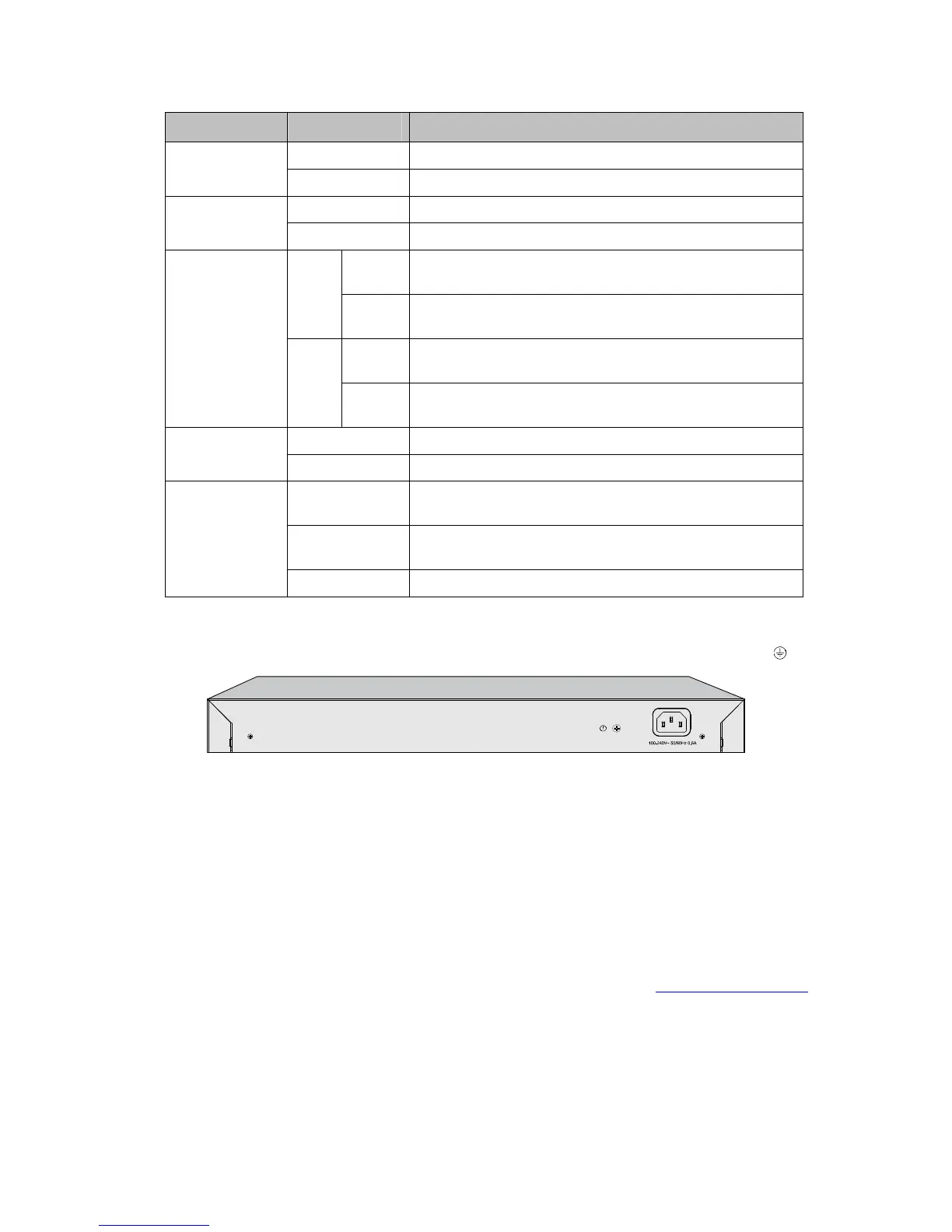

2.3.2 Rear Panel
The rear panel of the switch features a power socket and a Grounding Terminal (marked with ).
Figure 2-3 Rear Panel
 Grounding Terminal: The switch already comes with Lightning Protection Mechanism. You
can also ground the Switch through the PE (Protecting Earth) cable of AC cord or with Ground
Cable. For detail information, please refer to Installation Guide.
 AC Power Socket: Connect the female connector of the power cord here, and the male
connector to the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage (100-240V~ 50/60Hz 0.6A).
Return to CONTENTS
9

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
