TP-Link TL-SG5412F User Manual

12.1.3 SNMP Group
On this page, you can configure SNMP Group to control the network access by providing the users
in various groups with different management rights via the Read View, Write View and Notify View.
Choose the menu SNMP→SNMP Config→SNMP Group to load the following page.

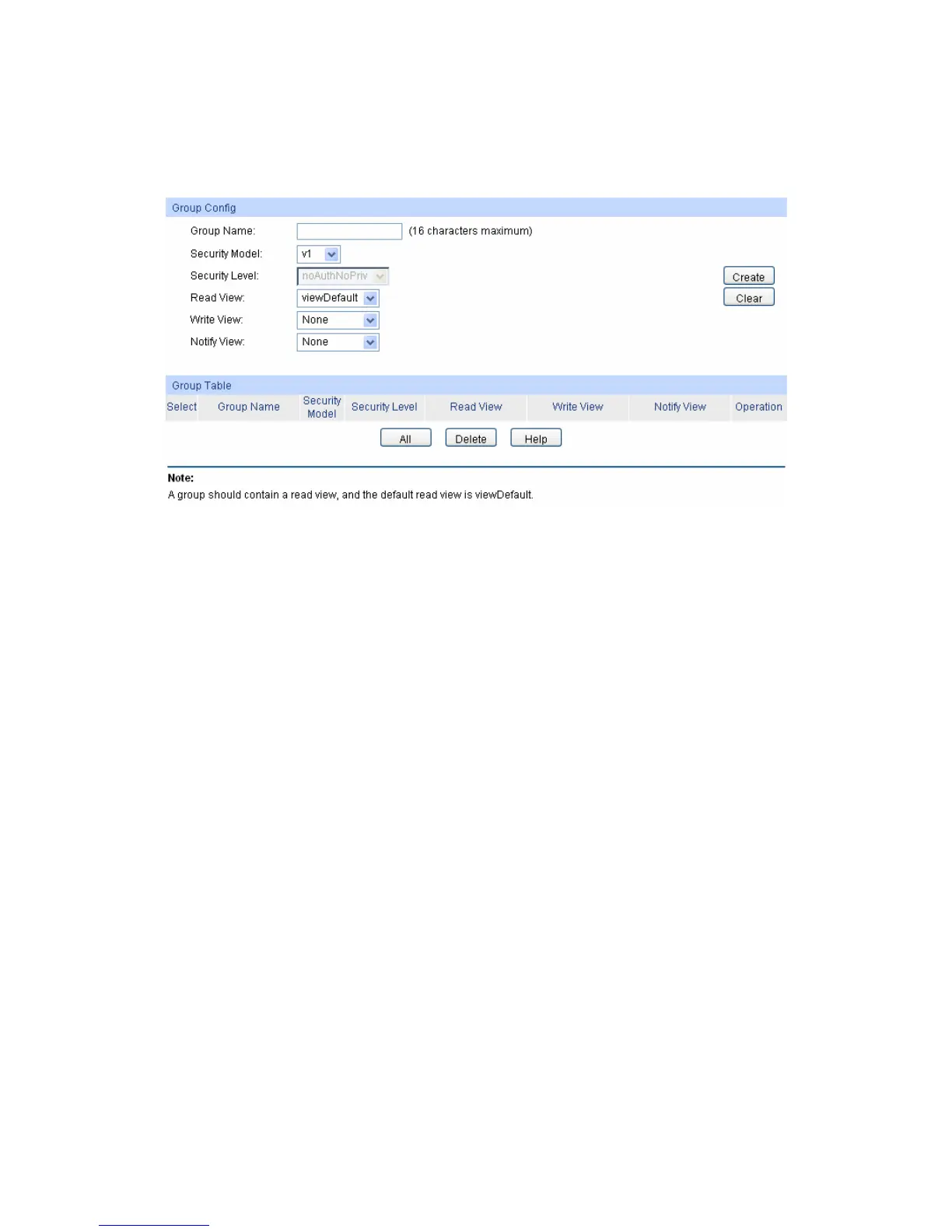

Figure 12-5 SNMP Group
The following entries are displayed on this screen:
 Group Config
Group Name: Enter the SNMP Group name. The Group Name, Security Model
and Security Level compose the identifier of the SNMP Group.
These three items of the Users in one group should be the same.
Security Model: Select the Security Model for the SNMP Group.
 v1:
SNMPv1 is defined for the group. In this model, the
Community Name is used for authentication. SNMP v1 can be
configured on the SNMP Community page directly.
 v2c: SNMPv2c is defined for the group. In this model, the
Community Name is used for authentication. SNMP v2c can
be configured on the SNMP Community page directly.
 v3: SNMPv3 is defined for the group. In this model, the USM
mechanism is used for authentication. If SNMPv3 is enabled,
the Securi
ty Level field is enabled for configuration.
Security Level: Select the Security Level for the SNMP v3 Group.
 noAuthNoPriv: No authentication and no privacy security
levels are used.
 authNoPriv: Only the authentication security level is used.
 authPriv: Both the authentication and the privacy security
levels are used.
Read View: Select the View to be the Read View. The management access is
restricted to read-only, and changes cannot be made to the
assigned SNMP View.
176

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
