Configuration Procedure:
Step Operation Description
1 Log on to the DSCP Priority
page
2 Enable DP priority function Required. By default, the DSCP priority function is
disabled.
3 Map the DSCP priority to the
priority level
Required. Select DSCP priority and the corresponding
priority level.
4 Select a schedule mode Required. Log on to the Schedule Mode page to
select a schedule mode.
9.2 Bandwidth Control
Bandwidth function, allowing you to control the traffic rate and broadcast flow on each port to
ensure network in working order, can be implemented on Rate Limit and Storm Control pages.
9.2.1 Rate Limit
Rate limit functions to control the ingress/egress traffic rate on each port via configuring the
available bandwidth of each port. In this way, the network bandwidth can be reasonably distributed
and utilized.
Choose the menu QoS→Bandwitdth Control→Rate Limit to load the following page.

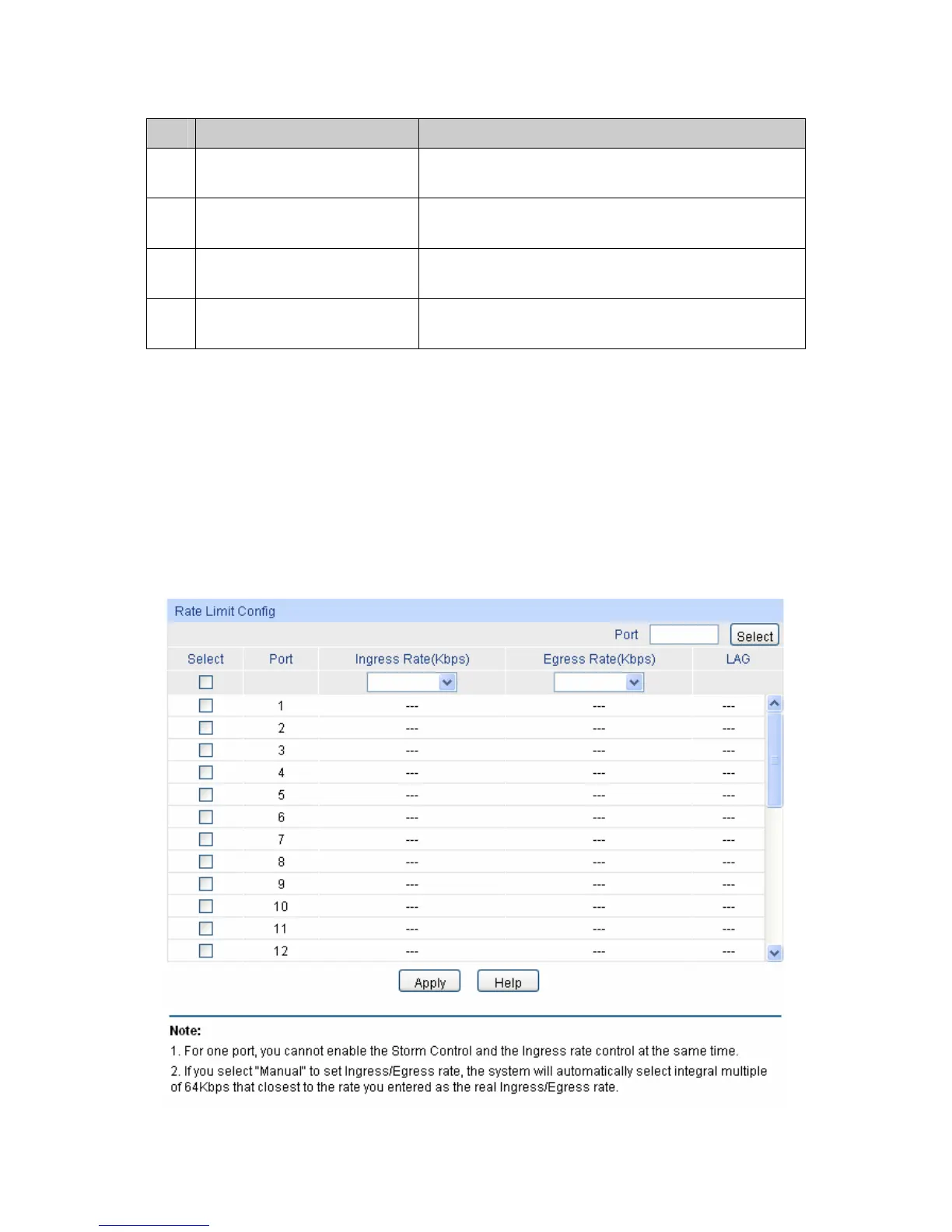

Figure 9-10 Rate Limit
122
