TP-Link TL-SG5412F User Manual

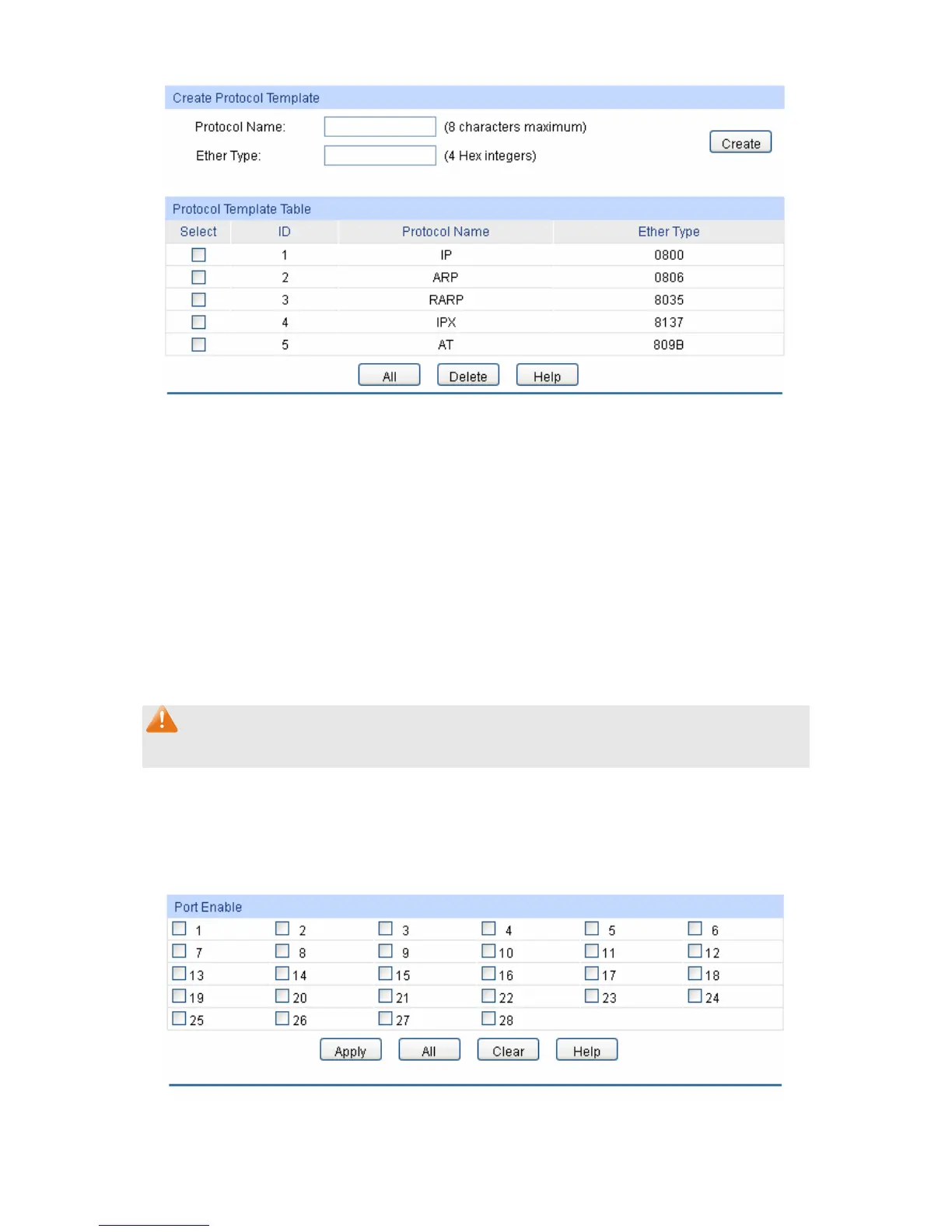

Figure 6-8 Create and View Protocol Template
The following entries are displayed on this screen:
 Create Protocol Template
Protocol Name: Give a name for the Protocol Template.
Ether Type: Enter the Ethernet protocol type field in the protocol template.
 Protocol Template Table
Select: Select the desired entry. It is multi-optional.
Protocol Name: Displays the name of the protocol template.
Ether Type: Displays the Ethernet protocol type field in the protocol template.
Note:
The Protocol Template bound to VLAN can not be deleted.
6.2.3 Port Enable
On this page, you can enable the port for the Protocol VLAN feature. Only when the port is
enabled can the configured Protocol VLAN take effect.
Choose the menu “VLAN→Protocol VLAN→Port Enable” to load the following page.
Figure 6-9 Enable Protocol VLAN for Port
60

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
