TP-Link TL-SG5412F User Manual

+ Dynamic
ARP Inspection blocks ARP packets from unauthorized hosts, preventing
man-in-the-middle attacks.
+ L2/L3/L4 Access Control Lists restrict untrusted access to the protected resource.
+ Provides SSHv1/v2, SSL 2.0/3.0 and TLS v1 for access encryption.
 Manageability
+ IP Clustering provides high scalability and easy Single-IP-Management.
+ Supports Telnet, CLI, SNMP v1/v2c/v3, RMON and web access.
+ Port Mirroring enables monitoring selected ingress/egress traffic.
2.3 Appearance Description
2.3.1 Front Panel

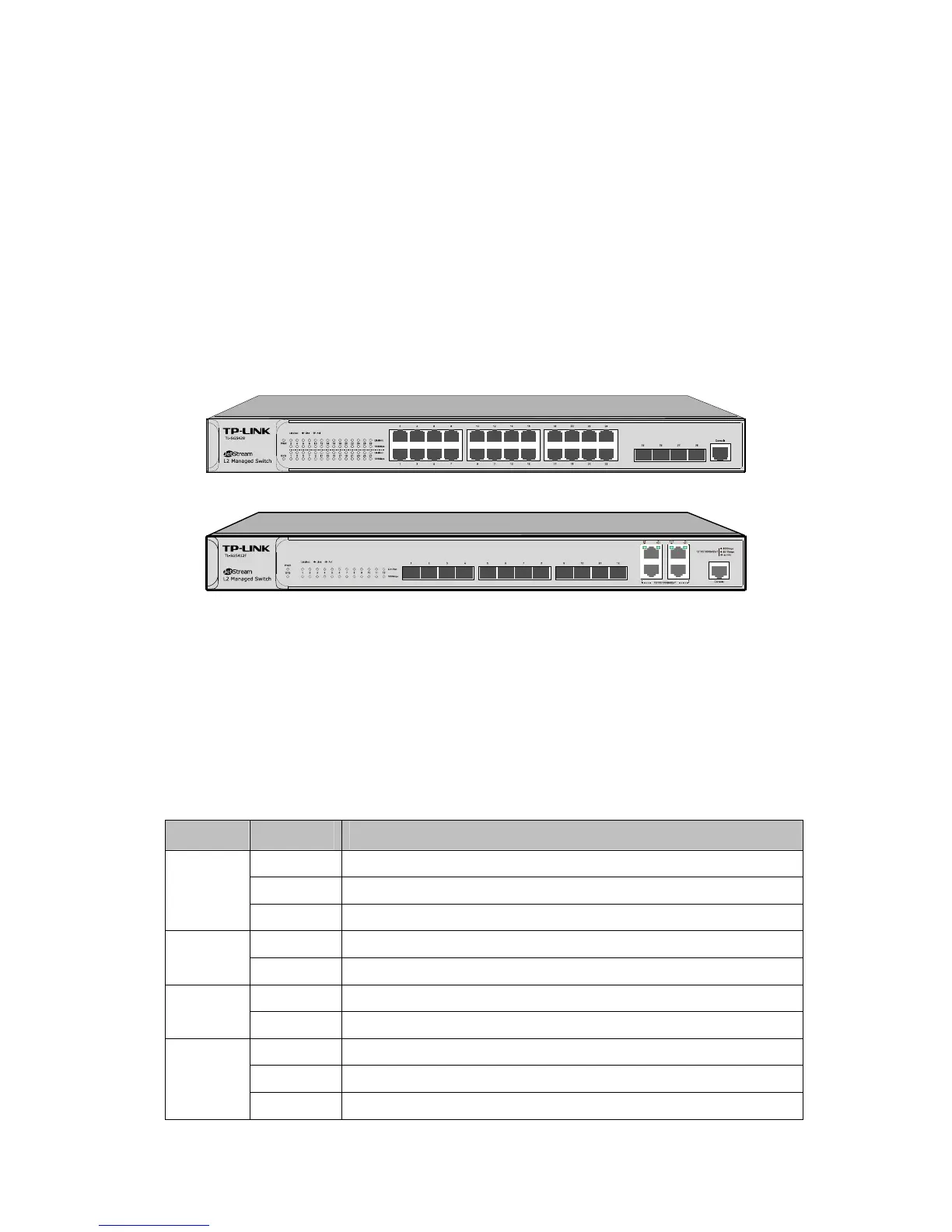

Figure 2-1 Front Panel of TL-SG5428
Figure 2-2 Front Panel of TL-SG5412F
 10/100/1000Mbps RJ45 Ports: Designed to connect to the device with a bandwidth of 10Mbps,
100Mbps or 1000Mbps. For TL-SG5428, each RJ45 port has a corresponding Link/Act and
1000Mbps LED. For TL-SG5412F, each has a corresponding 10/100/1000Mbps BASE-T LED.
 SFP Ports: Designed to install the SFP module. It supports 1000Mbps SFP module connection
only. Each has a corresponding 1000Mbps LED and Link/Act LED.
 Console Port: Designed to connect with the serial port of a computer or terminal for monitoring
and configuring the Switch.
 LEDs ( for TL-SG5428)
Name Status Indication
On The Switch is powered on
Flashing The Switch is powered off or power supply is abnormal
PWR
Off Power supply is abnormal
Flashing The Switch works properly
SYS
On/Off The Switch works improperly
On A device is linked to the corresponding port and running at 1000Mbps
1000Mbps
Off A 10/100Mbps device or no device is linked to the corresponding port
On A device is linked to the corresponding port and running properly
Flashing Data is being transmitted or received
Link/Act
Off No device is linked to the corresponding port
8

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
